58-Piece, 16mm T-Slot Hardware/Toe Clamp Set, 1/2"-13 Thread
Description
This versatile toe clamp kit for 5/8" (16 mm) T-slot tables includes everything you need for basic workholding on a standard T-slot table. It includes step blocks in three sizes, and step clamps in three lengths, as well as the necessary studs, nuts, T-slot nuts, and couplings to provide a clamping range of 3/4" to 6". The step blocks and step clamps feature 0.1" serrations, allowing fine adjustments to correctly align the clamps to your workpiece. All components store securely in the included plastic case.Technical specifications
System of Measurement | Inch - ANSI |
Type | Toe Clamp / T-Slot Hardware |
Number of Pieces | 58 |
Material | Steel |
Step Clamp Lengths | 2 1/2" |
[TSBW] T-Slot Base Width | 1" |
[TSW] T-Slot Width | 5/8" |
Step Block Width | 1" |
Step Block Height Range | 3/4" - 6" |
Thread Size | 1/2"-13 |
Grade | 5 (SAE J429) |
Max. Torque | 70 ft-lbf |
Weight | 22.0 lbs \ 10.0 kg |
Toe Clamp Kit for 5/8" (16 mm) T-Slot Tables:
BENEFITS:

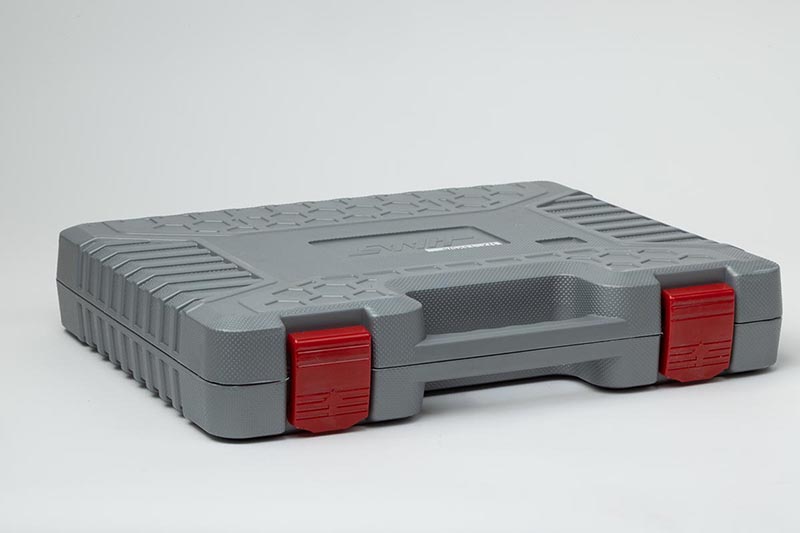

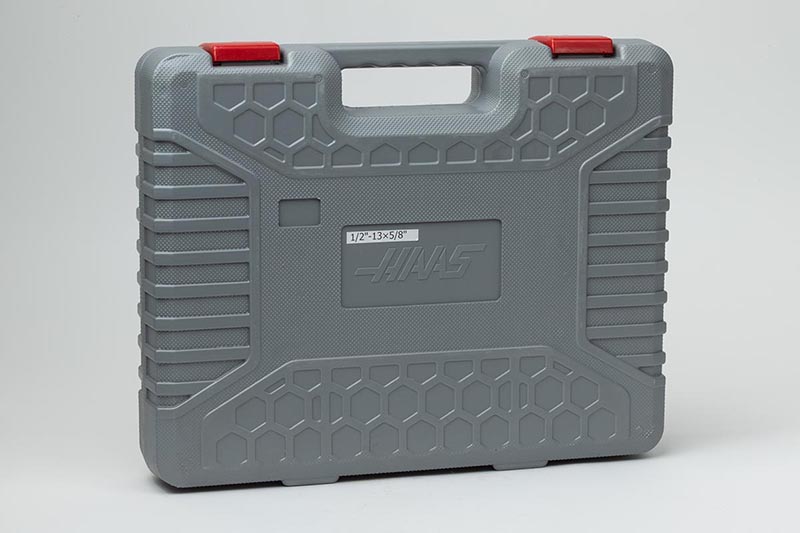

This versatile kit includes everything you need for basic workholding on a standard T-slot table. It contains a wide range of clamping components of different lengths and sizes, giving you an extensive range of options to clamp your parts, fixtures, or workholding securely to the mill table. All components store securely in the included plastic case.

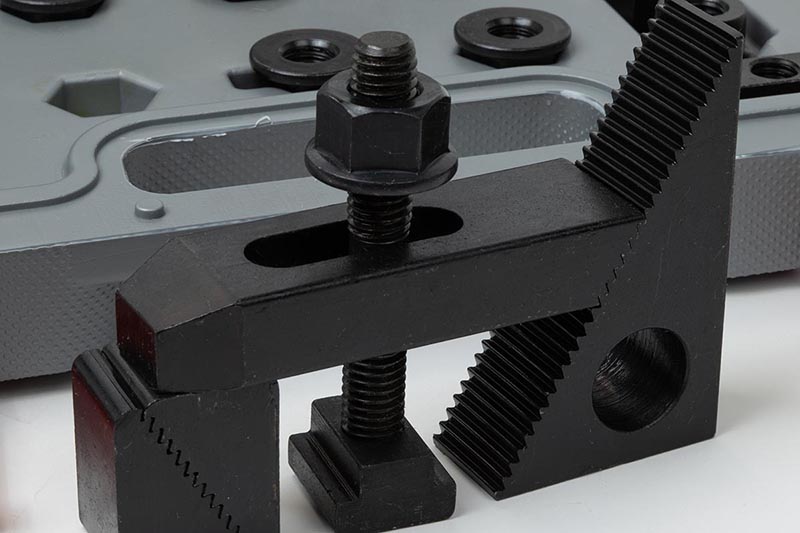

The kit includes step blocks in three sizes, and step clamps in three lengths, as well as the necessary studs, nuts, T-slot nuts, and couplings to provide a clamping range of 3/4" to 6". The step blocks and step clamps feature 0.1" serrations, allowing fine adjustments to correctly align the clamps to your workpiece.

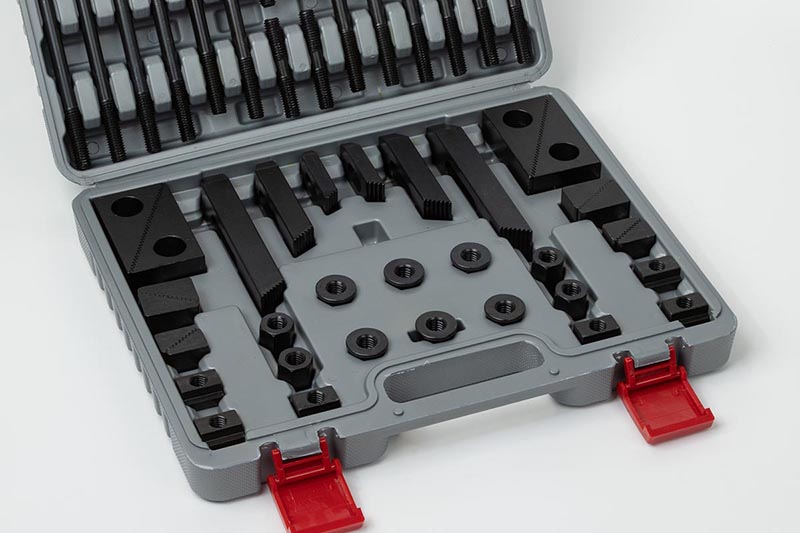

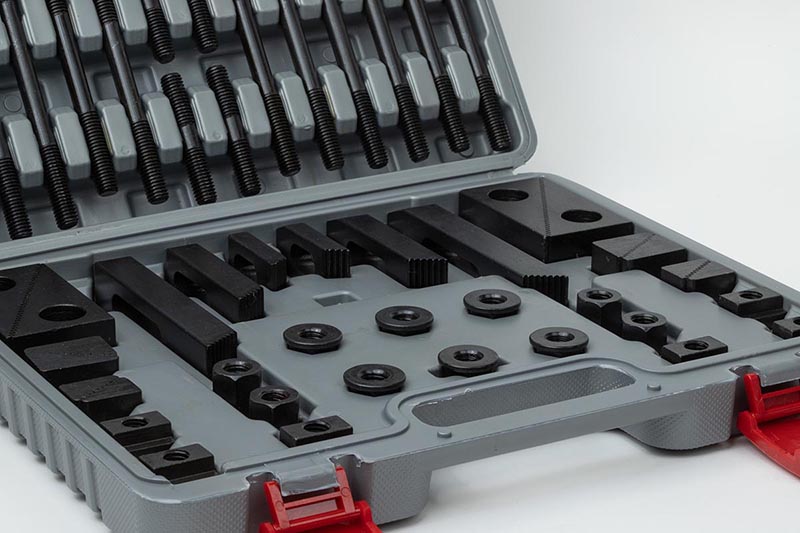

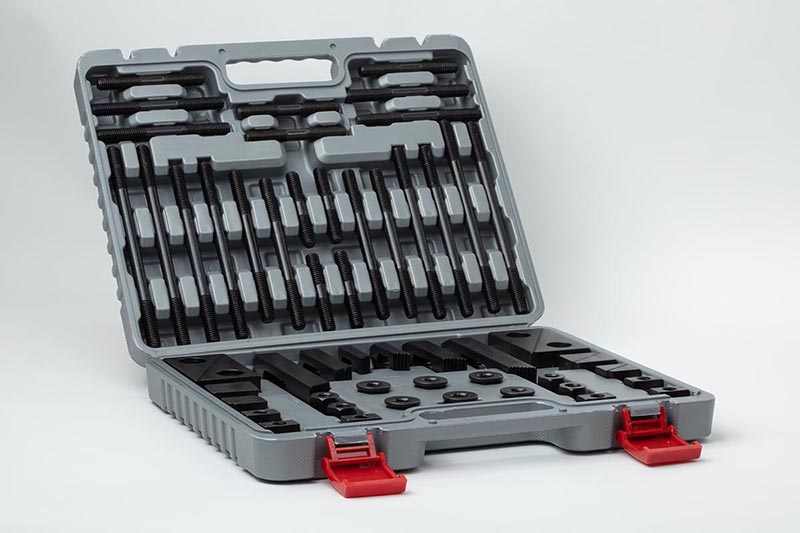

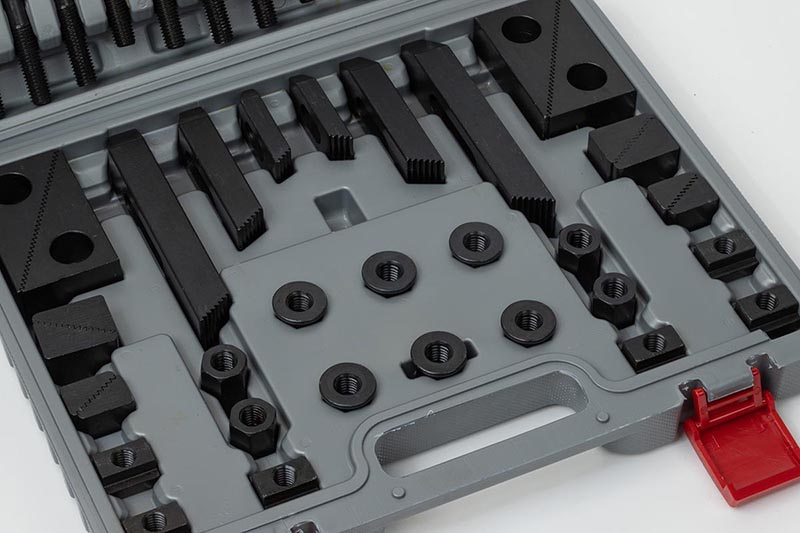

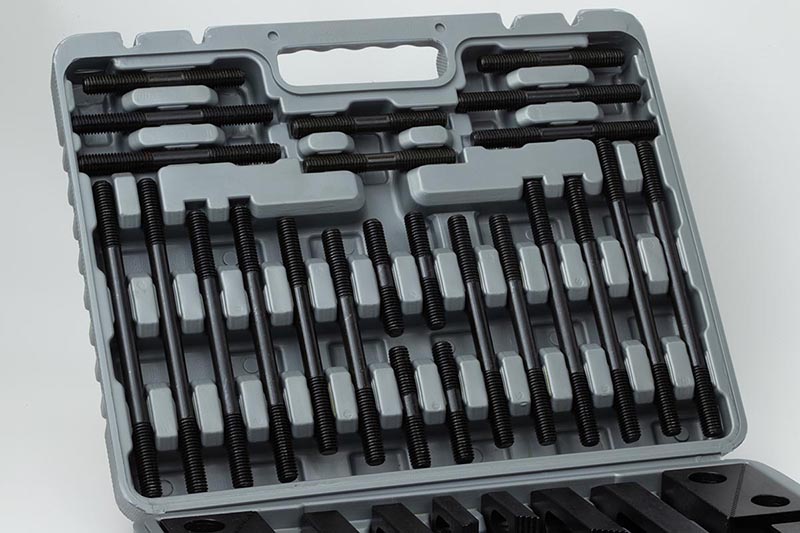

This Kit Contains:

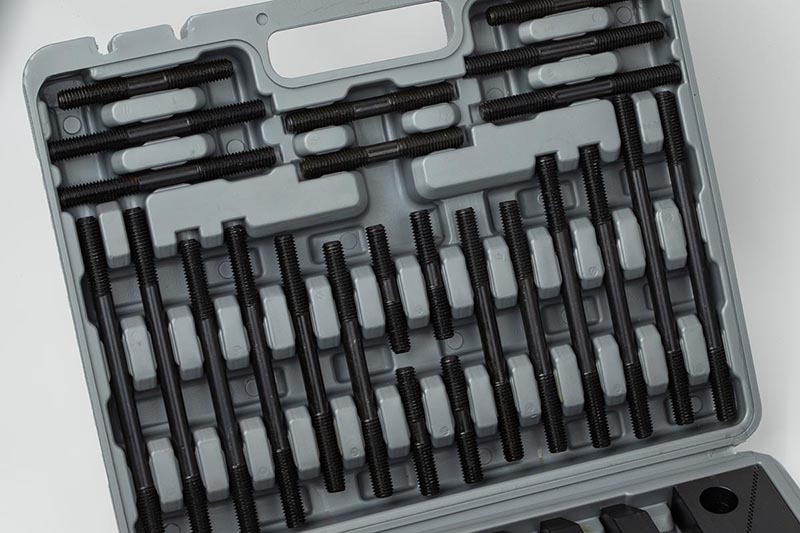

- 24 studs (4 each in 3", 4", 5", 6", 7" & 8" lengths)
- 12 step blocks (2 pairs of each in 3 different sizes)
- 6 step clamps (2 each in 2.5", 4" & 6" lengths)
- 6 T-slot nuts
- 6 flange nuts
- 4 coupling nuts
