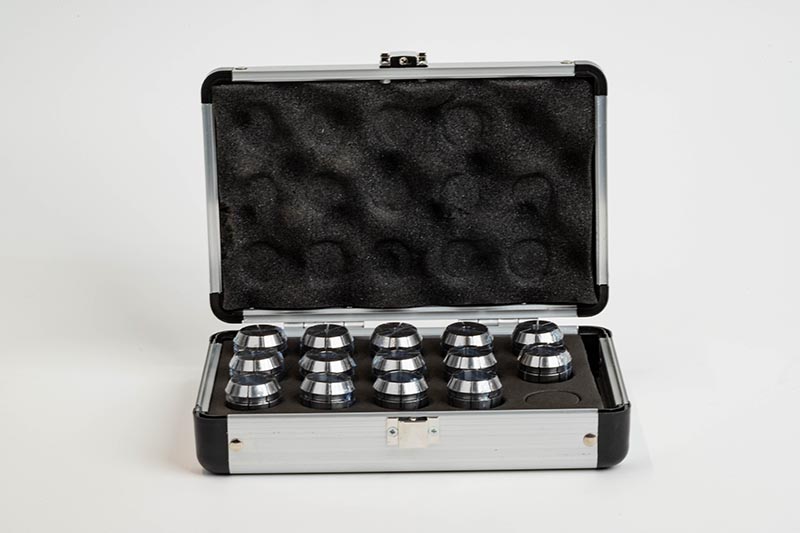

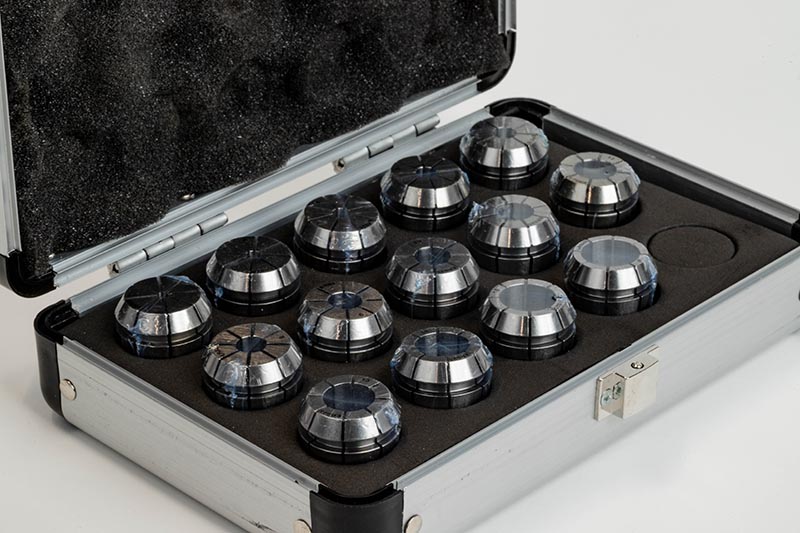

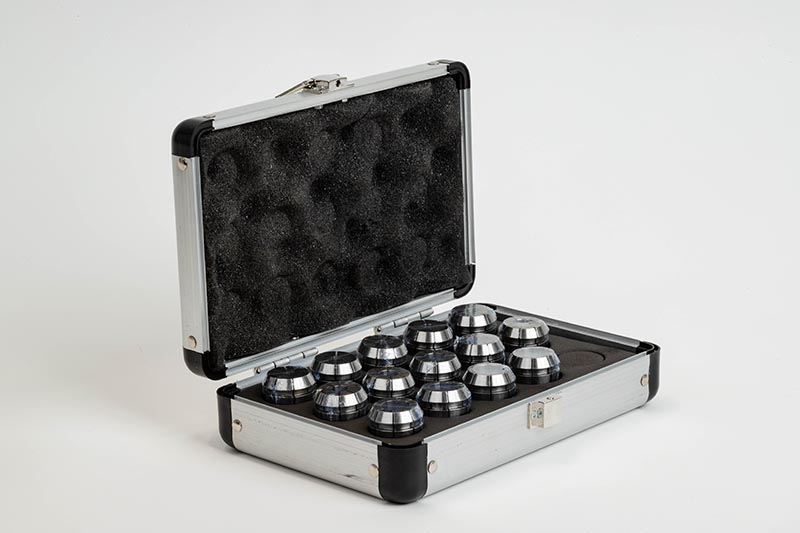

14-Piece, ER25 Straight Bore Sealed Collet Set, 3mm - 16mm
Part # 04-0477ER25 SEALED COLLET KIT 14 PC
Description
This 14-piece, ER25 metric straight-bore sealed collet set includes sizes from 3mm to 16mm, in 1mm increments, allowing you to securely clamp round shank tools from 3mm to 16mm, and ensures that 100% of through-tool coolant (TSC) gets to the tip of the cutting tool. The collets have a 0.01mm TIR, and are defined by collet class 1, per DIN ISO 15488. These collets have no clamping range; the tool shank must be the exact diameter of the collet bores. Included sizes: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm.Technical specifications
System of Measurement | Metric - ISO |
Type | Single Kit |
Collet Type | Straight Bore Sealed |
Collet Series | ER-25 |
Collet Class | Class 1 |
Total Indicator Runout (TIR) | 0.01 mm |
Number of Pieces | 14 |
