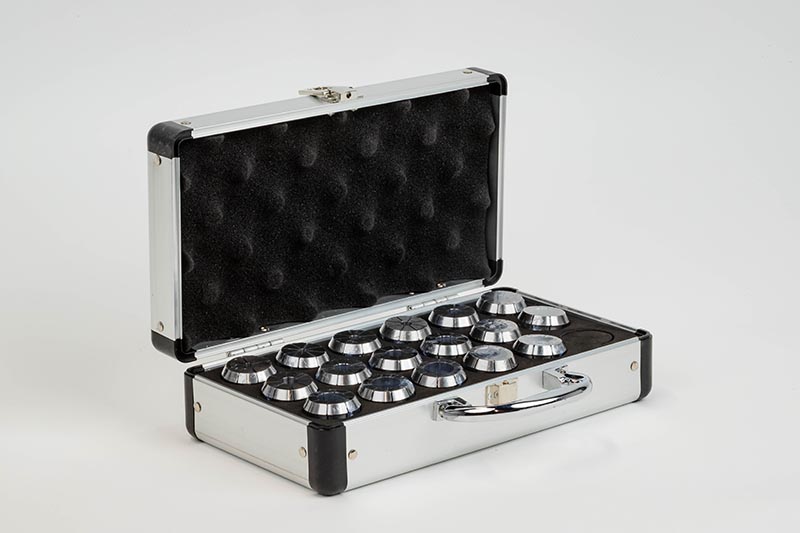

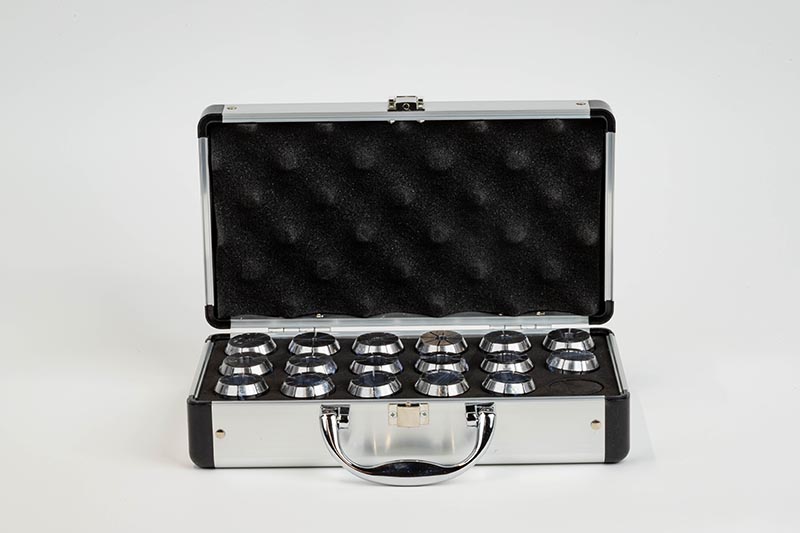

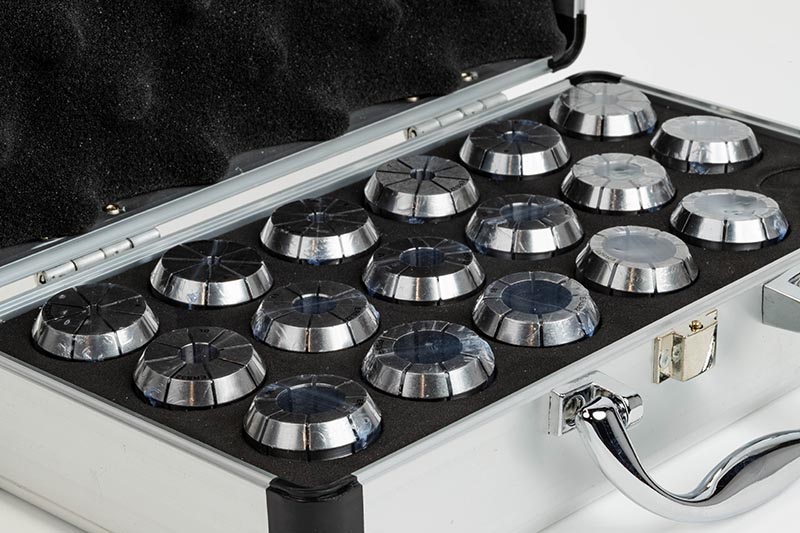

17-Piece, ER32 Straight Bore Sealed Collet Set, 4mm - 20mm
Part # 04-0478ER32 SEALED COLLET KIT 17 PC
Description
This 17-piece, ER32 metric straight-bore sealed collet set includes sizes from 4mm to 20mm, in 1mm increments, allowing you to securely clamp round shank tools from 4mm to 20mm, and ensures that 100% of through-tool coolant (TSC) gets to the tip of the cutting tool. The collets have a 0.01mm TIR, and are defined by collet class 1, per DIN ISO 15488. These collets have no clamping range; the tool shank must be the exact diameter of the collet bores. Included sizes: 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm.Technical specifications
System of Measurement | Metric - ISO |
Type | Single Kit |
Collet Type | Straight Bore Sealed |
Collet Series | ER-32 |
Collet Class | Class 1 |
Total Indicator Runout (TIR) | 0.01 mm |
Number of Pieces | 17 |
