NPU16 1" Straight Shank NC Keyless Drill Chuck
Part # 04-0481HNC1-NPU16-155
Description
This straight-shank NPU16 NC keyless drill chuck accepts a wide range of drill sizes (0.118" to 0.63"), and has a 1.0 in \ 1" shank. The drill chuck is versatile and easy to use, and is integrated with the toolholder into a single body for a more compact design.Technical specifications
System of Measurement | Inch - ANSI |
[ØBD] Body Diameter | 2.244 in |
[ØDCBN] Minimum Bore Diameter | 0.118 in |
[ØDCBX] Maximum Bore Diameter | 0.63 in |
[ØDMM] Shank Diameter | 1.0 in |
[LH] Head Length | 3.346 in |
[LS] Shank Length | 3.169 in |
[OAL] Overall Length | 6.516 in |
Concentricity | 0.002 in |
Balanced to RPM | 5000 |
Through Tool Coolant | No |
Weight | 3.4 lbs \ 1.6 kg |
Country of Origin | South Korea |

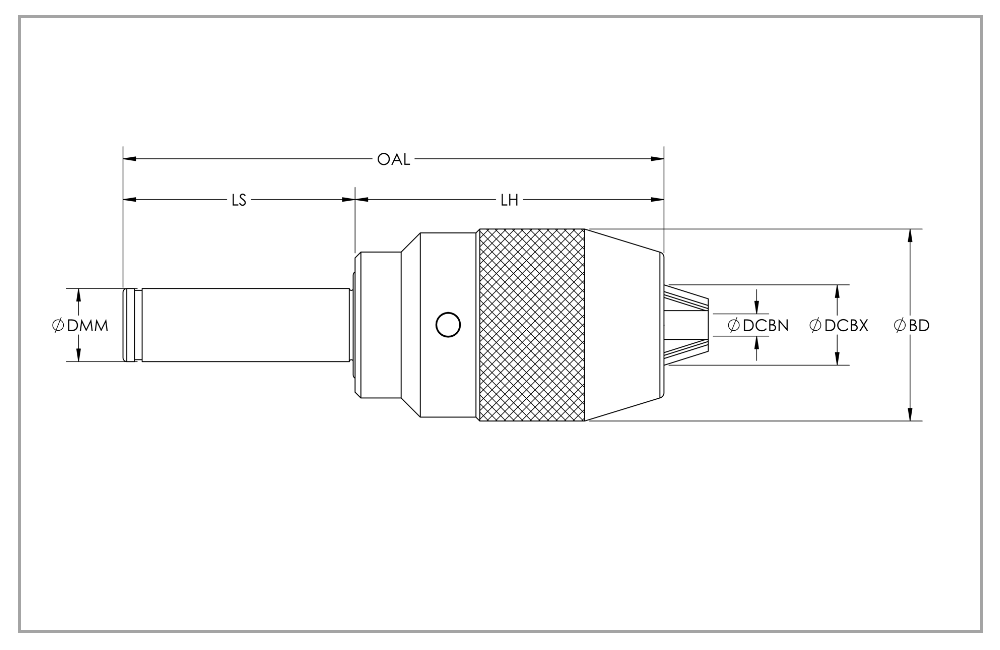

Technical Images
Enlarge Line Drawing & Specs
