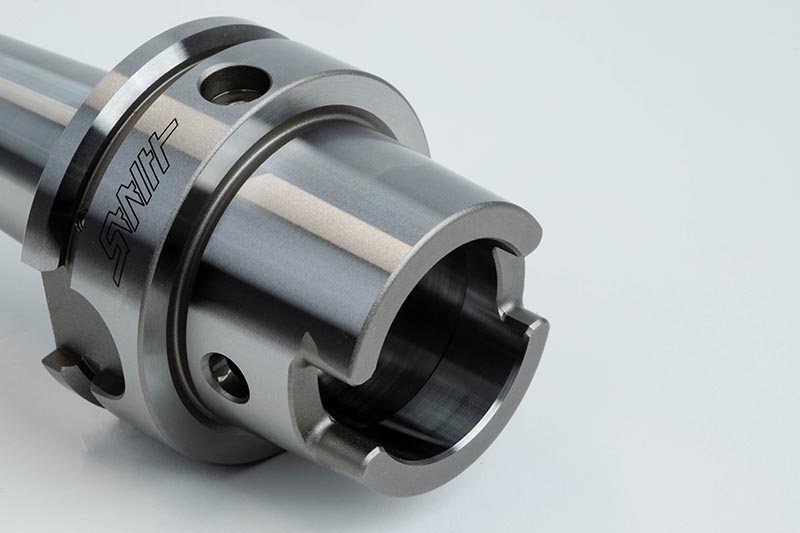

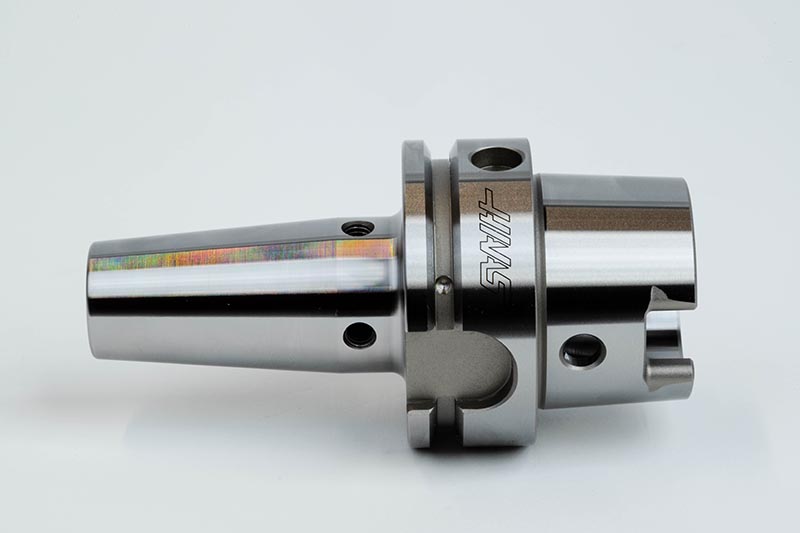

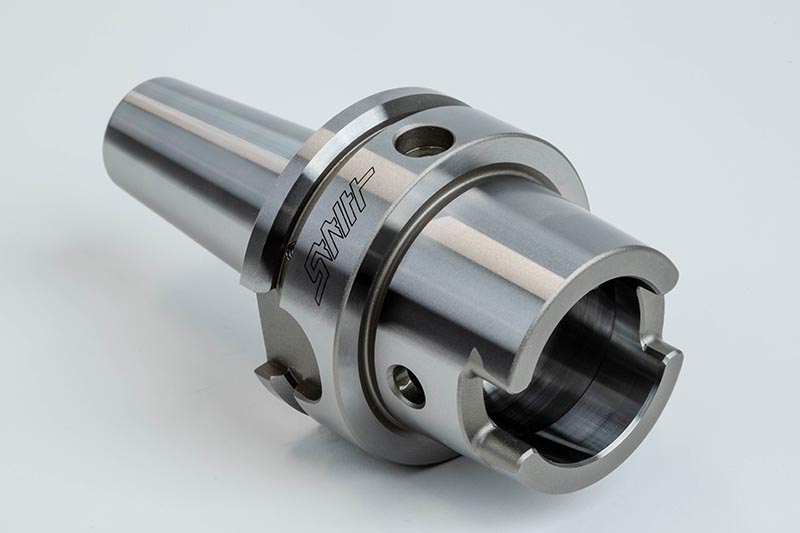

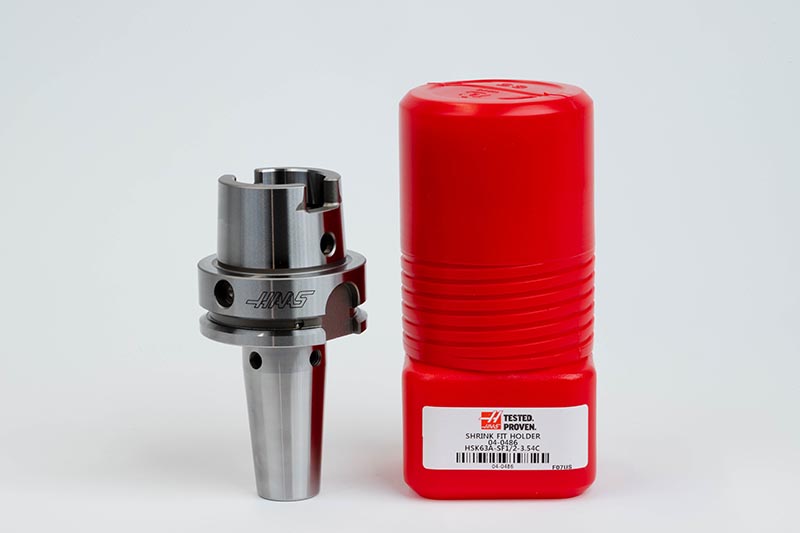

HSK63A 1/2" Shrink Fit Holder x 3.54" Gage Length, TSC
Part # 04-0486HSK63A-SF1/2-3.54C
Description
This HSK63A shrink fit holder has a 0.5 in \ 1/2" bore diameter, and a 3.543" gage length. It offers very low runout (0.0001" TIR), very high grip force, and quick tool changeovers when used in conjuction with Haas shrink fit machines. It is through-tool coolant (TSC) capable.Download documents
Technical specifications
System of Measurement | Inch - ANSI |
Taper | HSK63A |
[ØD] Bore Diameter | 0.5 in \ 1/2" |
[ØBD2] Minimum Body Diameter | 0.945 in |
[ØBD] Maximum Body Diameter | 1.26 in |
[GL] Gage Length | 3.543 in |
[BL] Body Length | 2.52 in |
[OAL] Overall Length | 4.803 in |
[LSCN] Minimum Clamping Length | 1.496 in |
[LSCX] Maximum Clamping Length | 1.929 in |
[SIG°] Angle | 4.5 ° |
Concentricity | 0.00012 in |
Balanced to RPM | 25000 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 1.8 lbs \ 0.8 kg |
Country of Origin | South Korea |
Technical Images
Enlarge Line Drawing & Specs
