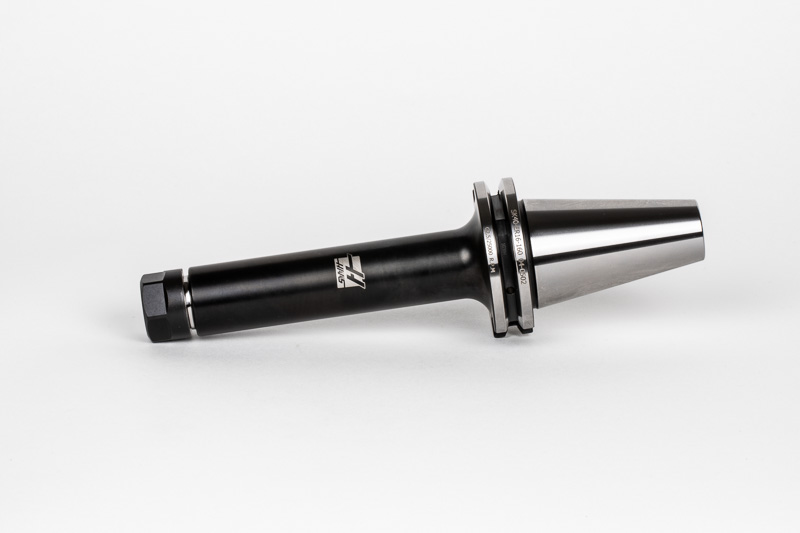

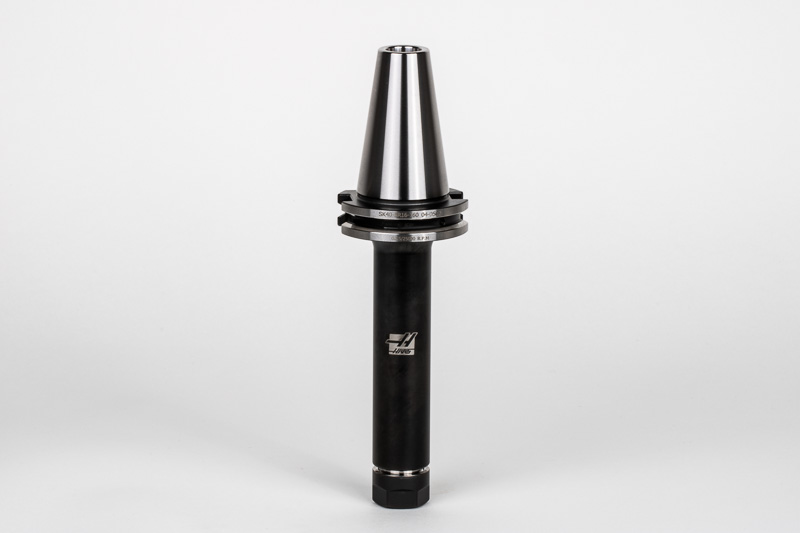

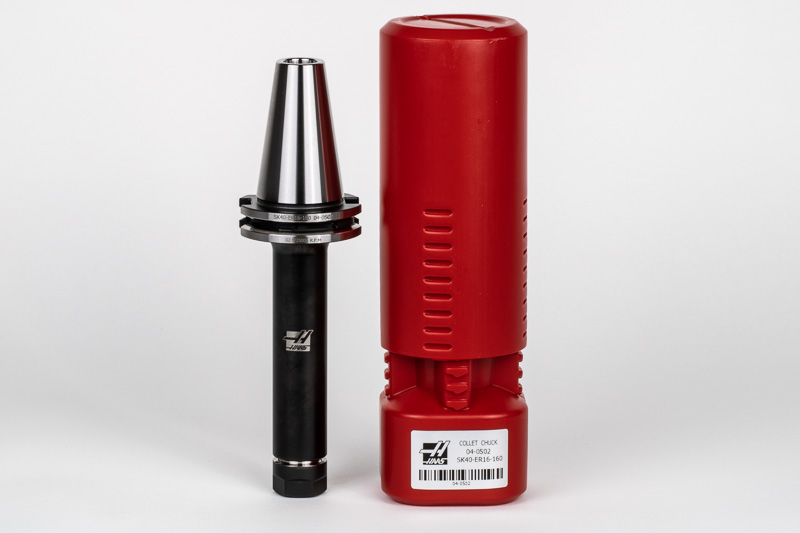

SK40/DIN ER16 Collet Chuck x 160mm Gage Length, TSC
Part # 04-0502SK40-ER16A-160
Description

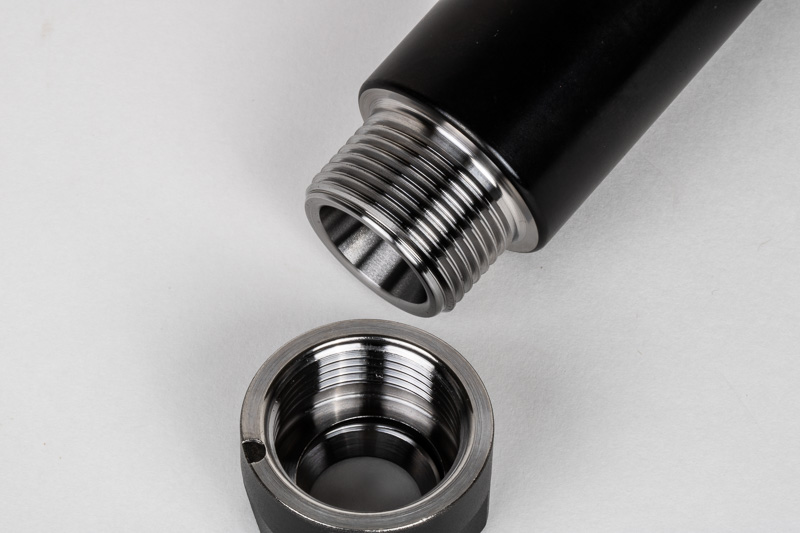

This SK40 \ DIN 69871 ER16 collet chuck accepts a variety of ER16 collet styles, and has a 160mm gage length. The double-taper collet design provides high clamping force for round, smooth shank tools, and offers a wide gripping range with excellent TIR and balance. It is through-tool coolant (TSC) capable, with a M16x2.0 pull stud/retention knob thread.Technical specifications
System of Measurement | Metric - ISO |
Taper | SK40 \ DIN 69871 |
Collet Series | ER-16 |
[ØBD] Body Diameter | 28.0 mm |
[GL] Gage Length | 160.0 mm |
[BL] Body Length | 140.9 mm |
Concentricity | 0.008 mm |
Balanced to RPM | 20000 |
Retention Knob Thread Size | M16X2.0 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 3.1 lbs \ 1.4 kg |
Country of Origin | China |
Technical Images

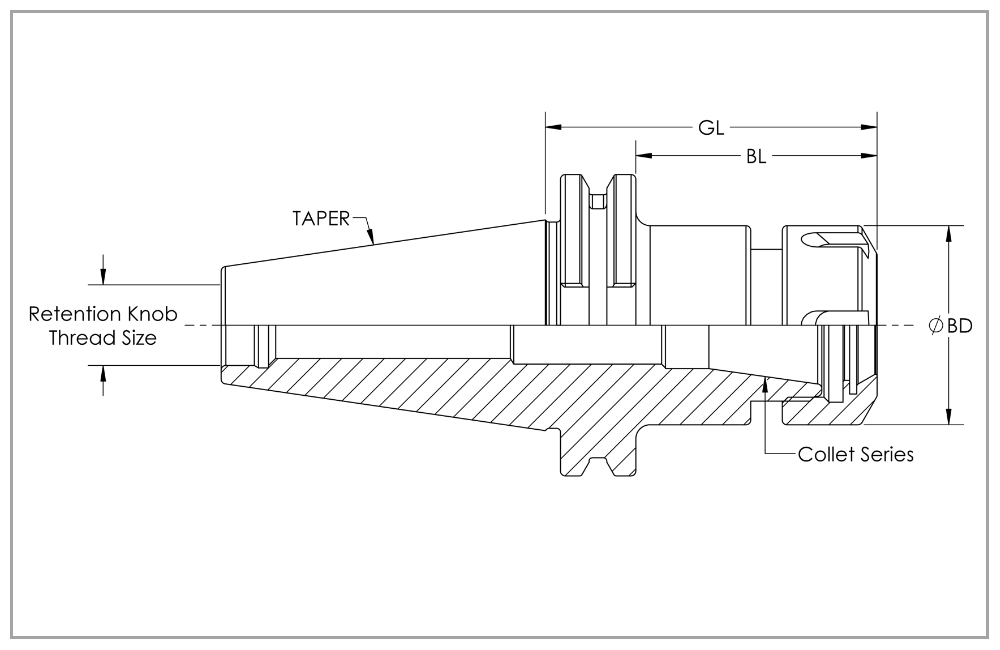

Enlarge Line Drawing & Specs
