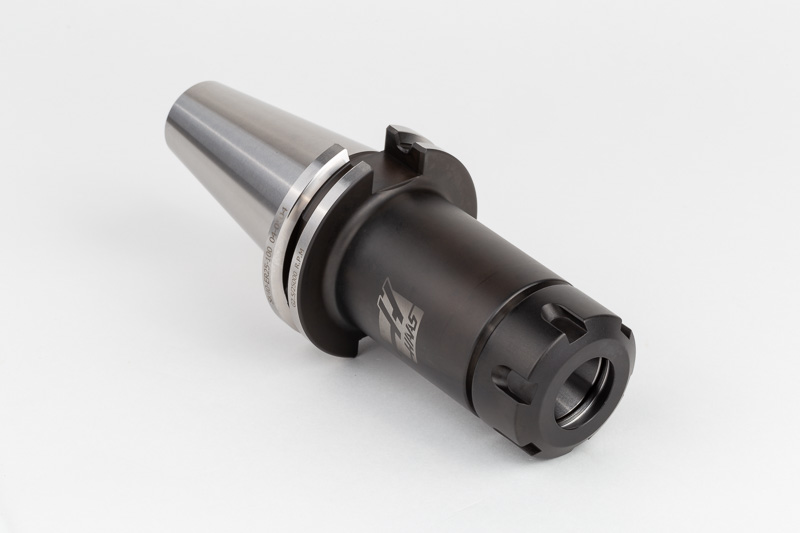

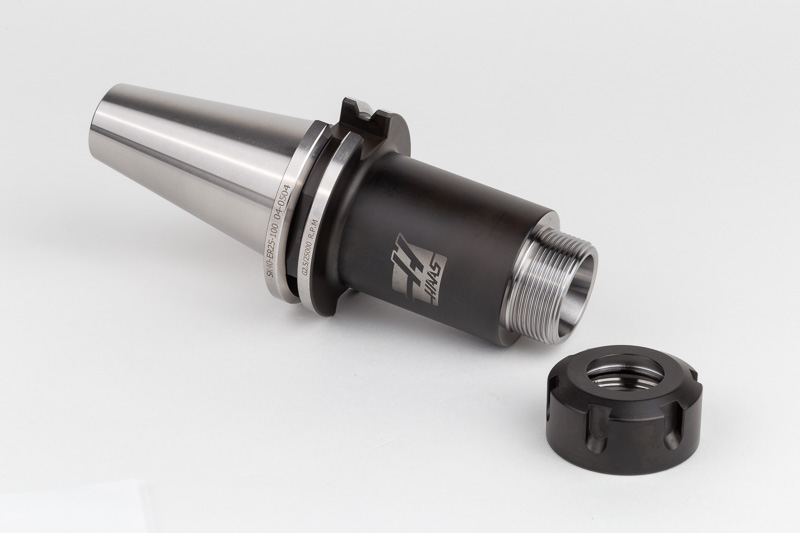

SK40/DIN ER25 Collet Chuck x 100mm Gage Length, TSC

Part # 04-0504SK40-ER25-100
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This SK40 \ DIN 69871 ER25 collet chuck accepts a variety of ER25 collet styles, and has a 100mm gage length. The double-taper collet design provides high clamping force for round, smooth shank tools, and offers a wide gripping range with excellent TIR and balance. It is through-tool coolant (TSC) capable, with a M16x2.0 pull stud/retention knob thread.
HOW TO USE THIS PRODUCT?
Speeds & Feeds
Download documents
Technical specifications

System of Measurement

Metric - ISO

Taper

SK40 \ DIN 69871

Collet Series

ER-25

[ØBD] Body Diameter

42.0 mm

[GL] Gage Length

100.0 mm

[BL] Body Length

80.9 mm

Concentricity

0.008 mm

Balanced to RPM

20000

Retention Knob Thread Size

M16X2.0

Through Tool Coolant

Yes

Spindle Drive Slots

Yes

Weight

3.3 lbs \ 1.5 kg

Country of Origin

China
Technical Images

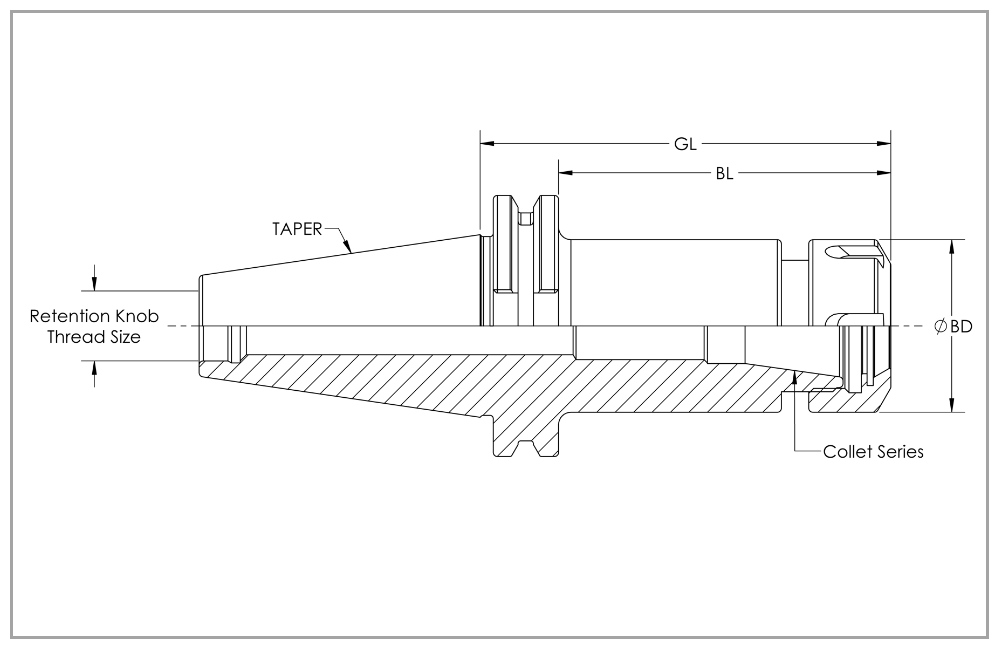

Enlarge Line Drawing & Specs
