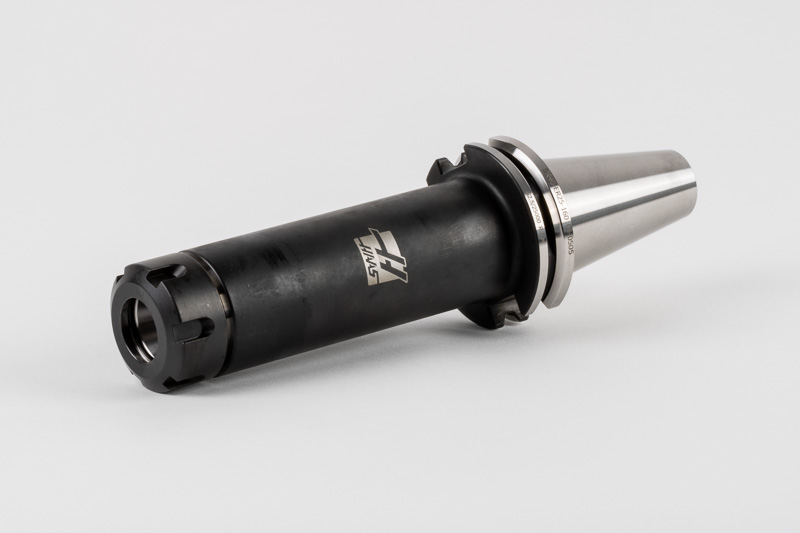

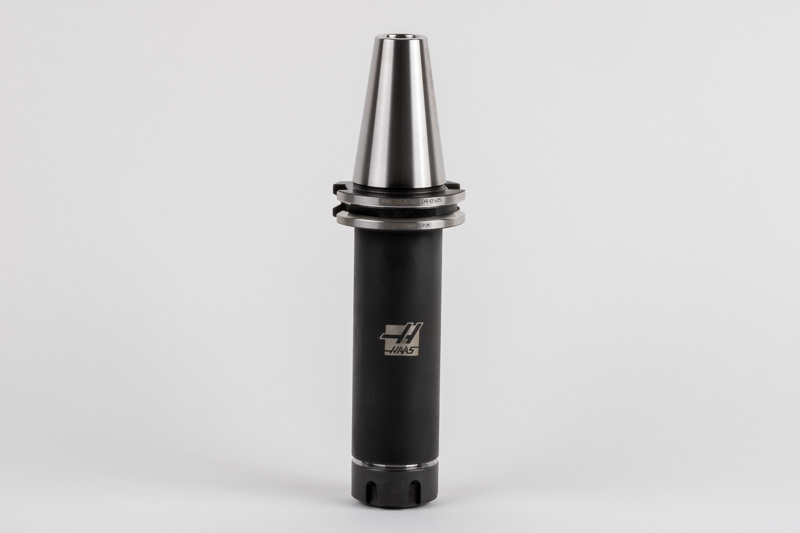

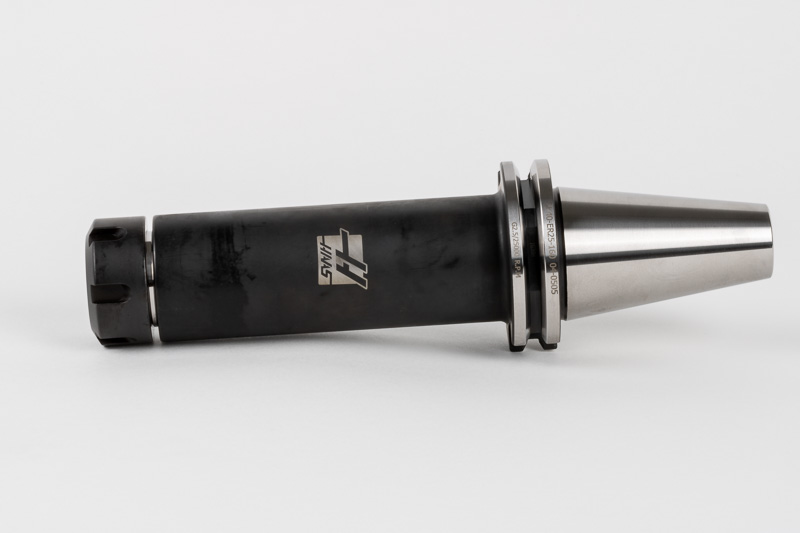

SK40/DIN ER25 Collet Chuck x 160mm Gage Length, TSC

Part # 04-0505SK40-ER25-160
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description

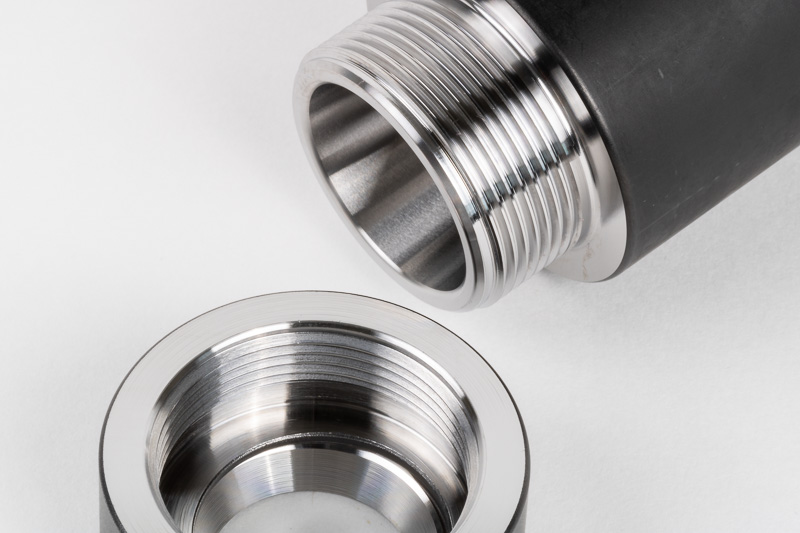

This SK40 \ DIN 69871 ER25 collet chuck accepts a variety of ER25 collet styles, and has a 160mm gage length. The double-taper collet design provides high clamping force for round, smooth shank tools, and offers a wide gripping range with excellent TIR and balance. It is through-tool coolant (TSC) capable, with a M16x2.0 pull stud/retention knob thread.
Technical specifications

System of Measurement

Metric - ISO

Taper

SK40 \ DIN 69871

Collet Series

ER-25

[ØBD] Body Diameter

42.0 mm

[GL] Gage Length

160.0 mm

[BL] Body Length

140.9 mm

Concentricity

0.008 mm

Balanced to RPM

20000

Retention Knob Thread Size

M16X2.0

Through Tool Coolant

Yes

Spindle Drive Slots

Yes

Weight

4.7 lbs \ 2.1 kg

Country of Origin

China
Technical Images

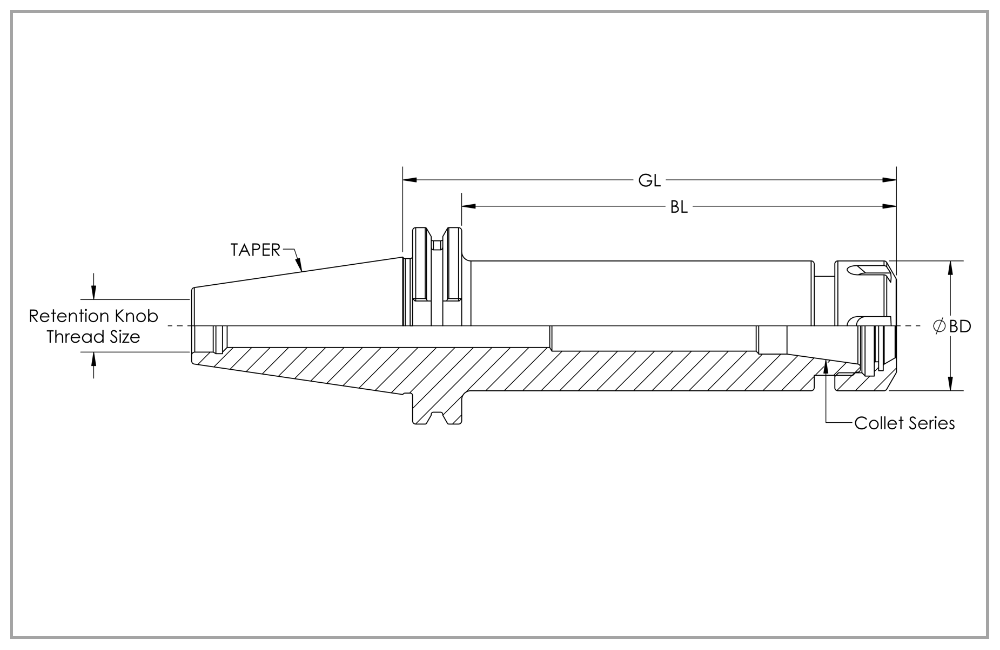

Enlarge Line Drawing & Specs
