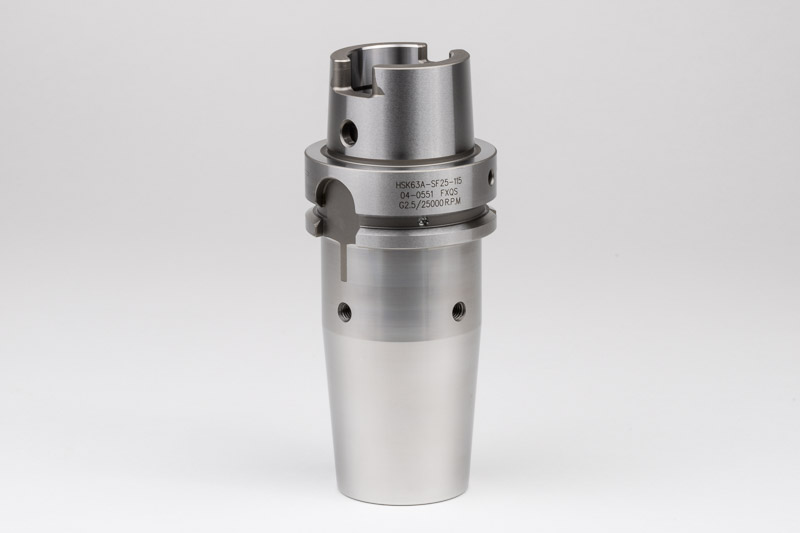

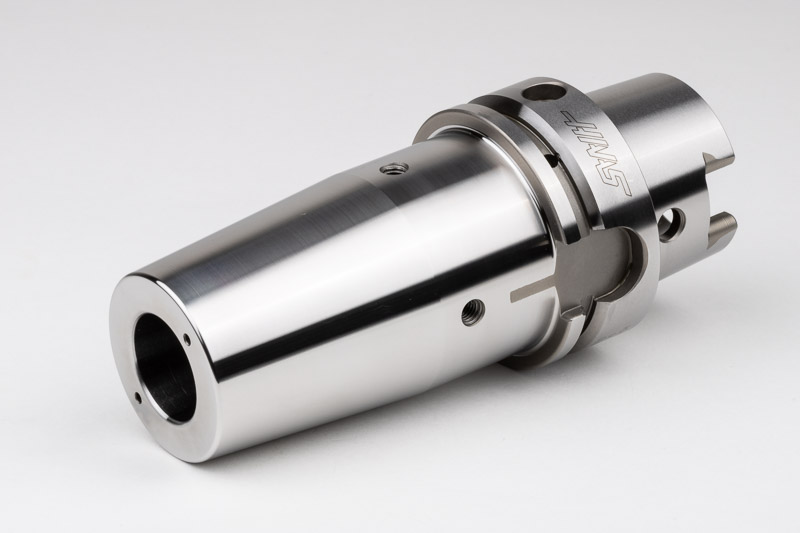

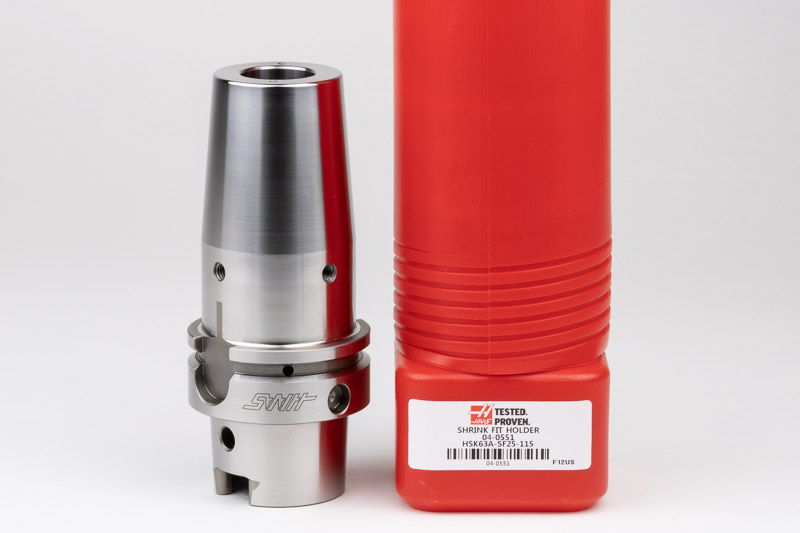

HSK63A 25mm Shrink Fit Holder x 115mm Gage Length, TSC

Part # 04-0551HSK63A-SF25-115
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This HSK63A shrink fit holder has a 25mm bore diameter, and a 115mm gage length. It offers very low runout (0.003mm TIR), very high grip force, and quick tool changeovers when used in conjuction with Haas shrink fit machines. It is through-tool coolant (TSC) capable.
Download documents
Toolholder and Pull Stud specifications
Technical specifications

System of Measurement

Metric - ISO

Taper

HSK63A

[ØD] Bore Diameter

25.0 mm

[ØBD2] Minimum Body Diameter

44.0 mm

[ØBD] Maximum Body Diameter

53.0 mm

[GL] Gage Length

115.0 mm

[BL] Body Length

89.0 mm

[OAL] Overall Length

147.0 mm

[LSCN] Minimum Clamping Length

47.0 mm

[LSCX] Maximum Clamping Length

59.0 mm

[SIG°] Angle

4.5 °

Concentricity

0.003 mm

Balanced to RPM

25000

Through Tool Coolant

Yes

Spindle Drive Slots

Yes

Weight

3.1 lbs \ 1.4 kg

Country of Origin

South Korea
