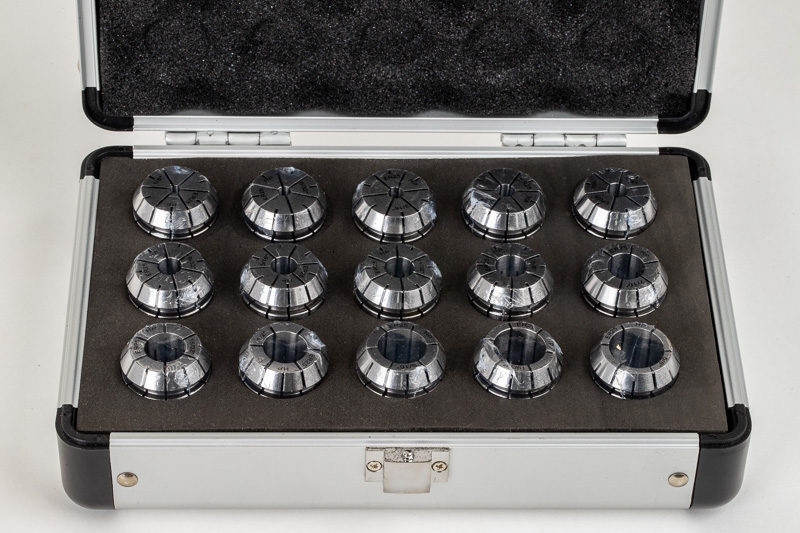

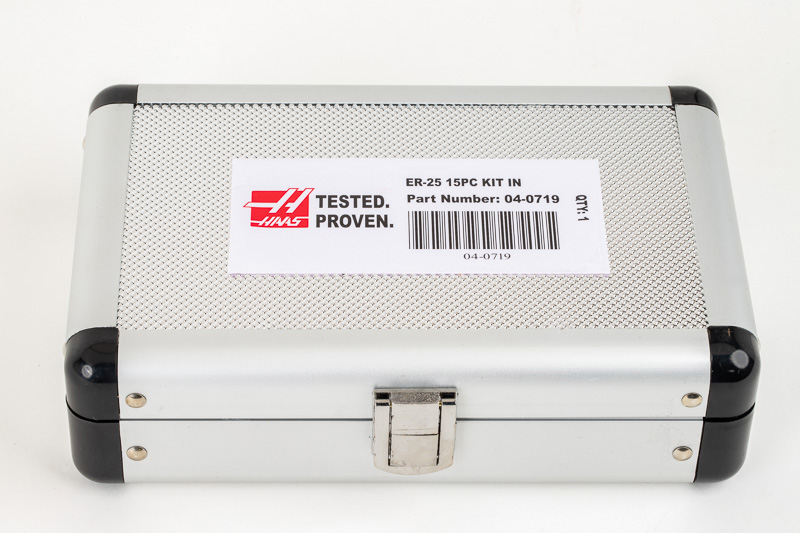

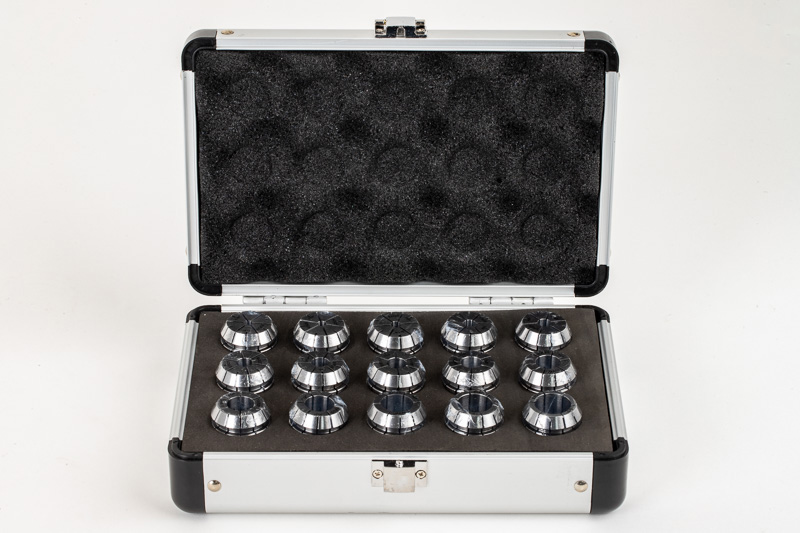

15-Piece, ER25 Straight Bore Collet Set, 1/8" - 5/8"
Part # 04-071915 PC ER25 KIT
Description
This 15-piece, ER25 inch straight-bore collet set includes sizes from 1/8" to 5/8", in 1/32" and 1/16" increments, allowing you to securely clamp round shank tools from 0.086" to 0.625". The collets have a 0.0004" - 0.0006" TIR, and are defined by collet class 1, per DIN ISO 15488. Included sizes: 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 7/16", 15/32", 1/2", 9/16", 19/32", 5/8".Technical specifications
System of Measurement | Inch - ANSI |
Type | Single Kit |
Collet Type | Straight Bore |
Collet Series | ER-25 |
Collet Class | Class 1 |
Total Indicator Runout (TIR) | 0.0004 - 0.0006 in |
Number of Pieces | 15 |
