5-Piece, ER16 Straight Bore Sealed Collet Set, 1/8" - 3/8"
Part # 04-0745ER16 SEALED COLLET KIT 5-PIECE
Description

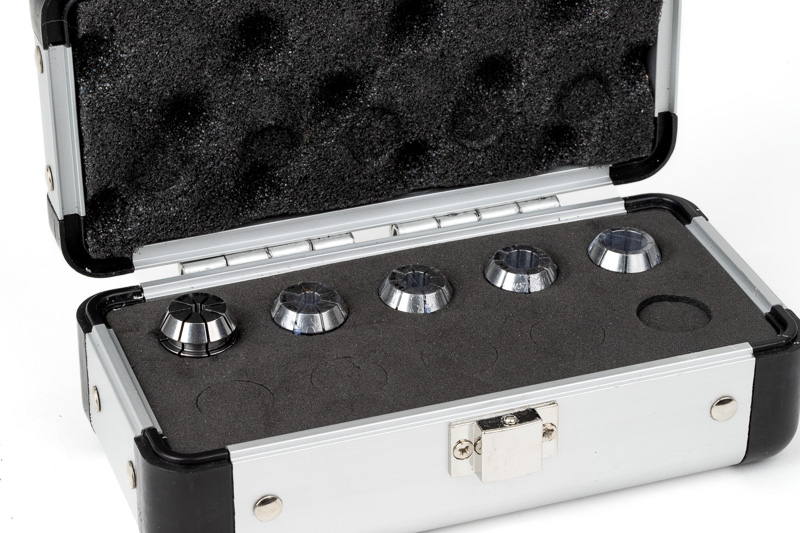

This 5-piece, ER16 inch straight-bore sealed collet set includes sizes from 1/8" to 3/8", in 1/16" increments, allowing you to securely clamp round shank tools from 1/8" to 3/8", and ensures that 100% of through-tool coolant (TSC) gets to the tip of the cutting tool. The collets have a 0.0004" TIR, and are defined by collet class 1, per DIN ISO 15488. These collets have no clamping range; the tool shank must be the exact diameter of the collet bores. Included sizes: 1/8", 3/16", 1/4", 5/16", 3/8".Technical specifications
System of Measurement | Inch - ANSI |
Type | Single Kit |
Collet Type | Straight Bore Sealed |
Collet Series | ER-16 |
Collet Class | Class 1 |
Total Indicator Runout (TIR) | 0.0004 in |
Number of Pieces | 5 |
