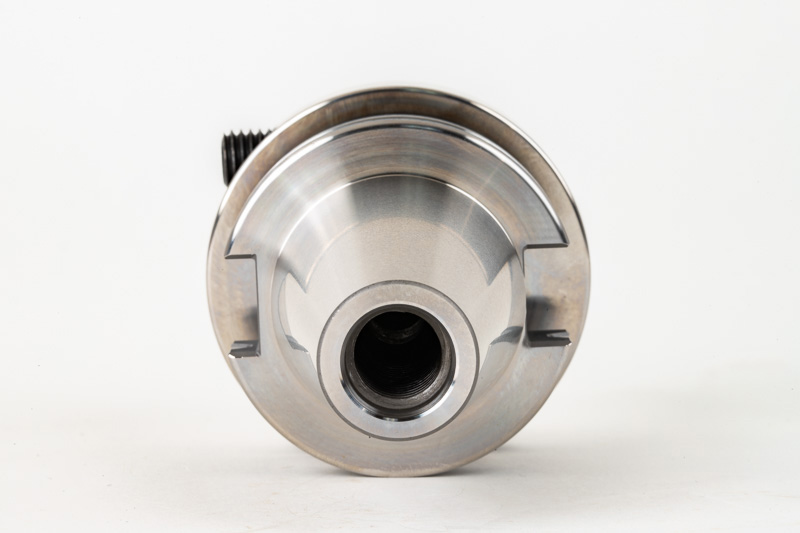

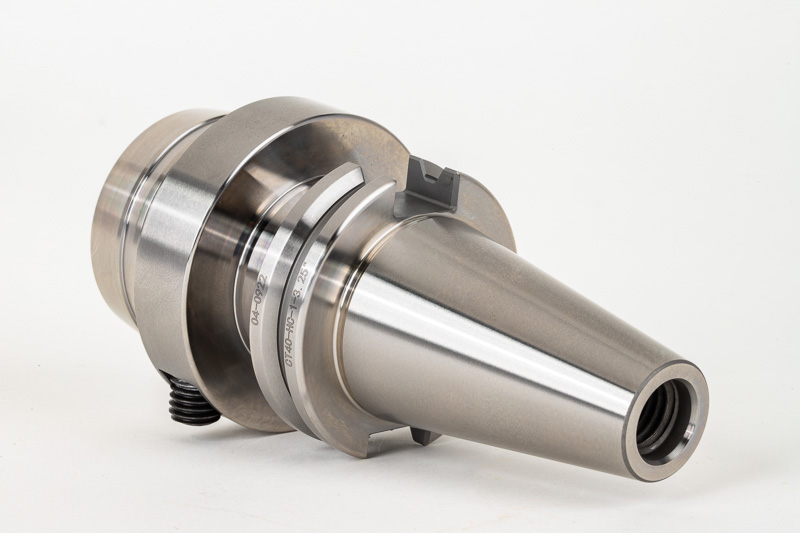

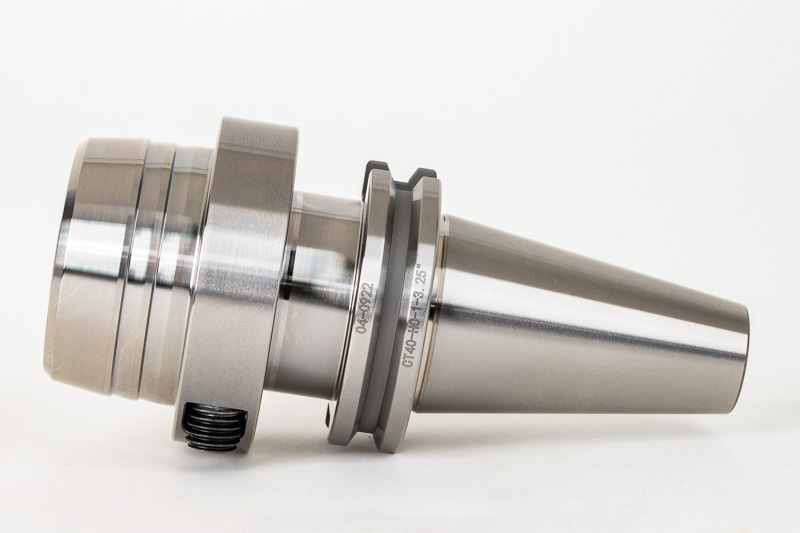

CT40 1" Hydraulic Chuck x 3.25" Gage Length TSC
Part # 04-0922CT40-HC-1-3.25"
Description
This CAT40 hydraulic milling chuck has a 1.0 in \ 1" bore diameter and a 3.248" gage length. The chuck accepts precision straight-shank collets (optional) to reduce the bore and hold smaller diameter tools. The hydraulic fluid within the chuck compresses to provide equal pressure around the cutting tool shank, providing high grip strength, low runout, and excellent damping properties. It is through-tool coolant (TSC) capable, with a 5/8"-11 pull stud/retention knob thread.Download documents
Technical specifications
System of Measurement | Inch - ANSI |
Item | Hydraulic Chuck |
Taper | CT40 |
[ØD] Bore Diameter | 1.0 in \ 1" |
[ØBD] Body Diameter | 2.835 in |
[GL] Gage Length | 3.248 in |
[BL] Body Length | 1.181 in |
[LSCX] Maximum Clamping Length | 1.909 in |
[OAL] Overall Length | 5.935 in |
Concentricity | 0.00012” |
Balanced to RPM | 25000 |
Retention Knob Thread Size | 5/8"-11 |
Through Tool Coolant | Yes |
Screw | TS6 |
Spindle Drive Slots | Yes |
Weight | 4.1 lbs \ 1.9 kg |
Country of Origin | China |
Technical Images

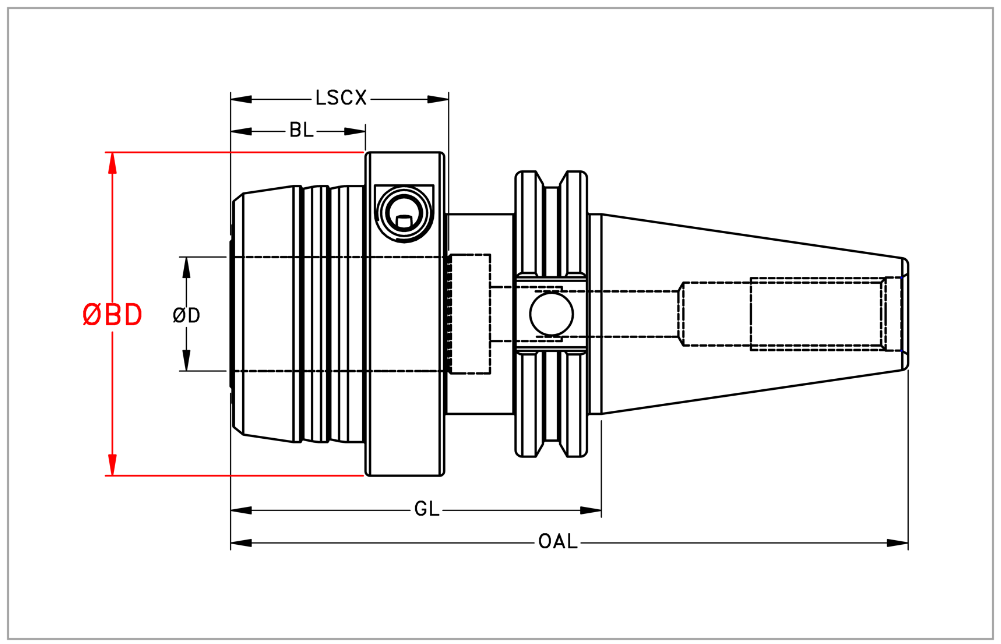

Enlarge Line Drawing & Specs
Note:
Hydraulic holders that exceed 2.5" (63mm) [ØBD] Body Diameter need to be defined as a "Large Tool" in the Haas Control depending on your tool changer.
