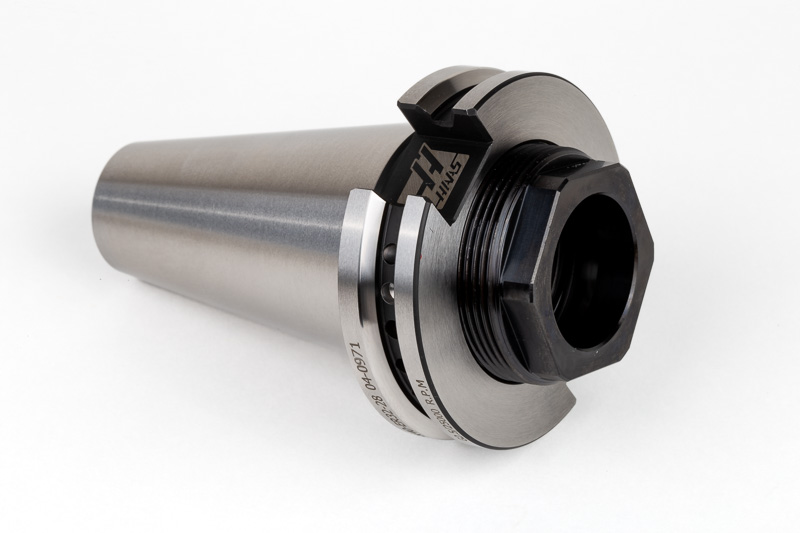

SK40 ER32 Collet Chuck x 28mm Gage Length, TSC
Part # 04-0971SK40-ER32-28
Description
This SK40 \ DIN 69871 ER32 collet chuck accepts a variety of ER32 collet styles, and has a 28mm gage length. The double-taper collet design provides high clamping force for round, smooth shank tools, and offers a wide gripping range with excellent TIR and balance. It is through-tool coolant (TSC) capable, with a M16x2.0 pull stud/retention knob thread.Download documents
Technical specifications
System of Measurement | Metric - ISO |
Taper | SK40 \ DIN 69871 |
Collet Series | ER-32 |
[ØBD] Body Diameter | 40.0 mm |
[GL] Gage Length | 28.0 mm |
[BL] Body Length | 8.9 mm |
Concentricity | 0.003 mm |
Balanced to RPM | 25000 |
Retention Knob Thread Size | M16X2.0 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 1.2 lbs \ 0.6 kg |
Country of Origin | China |
Technical Images

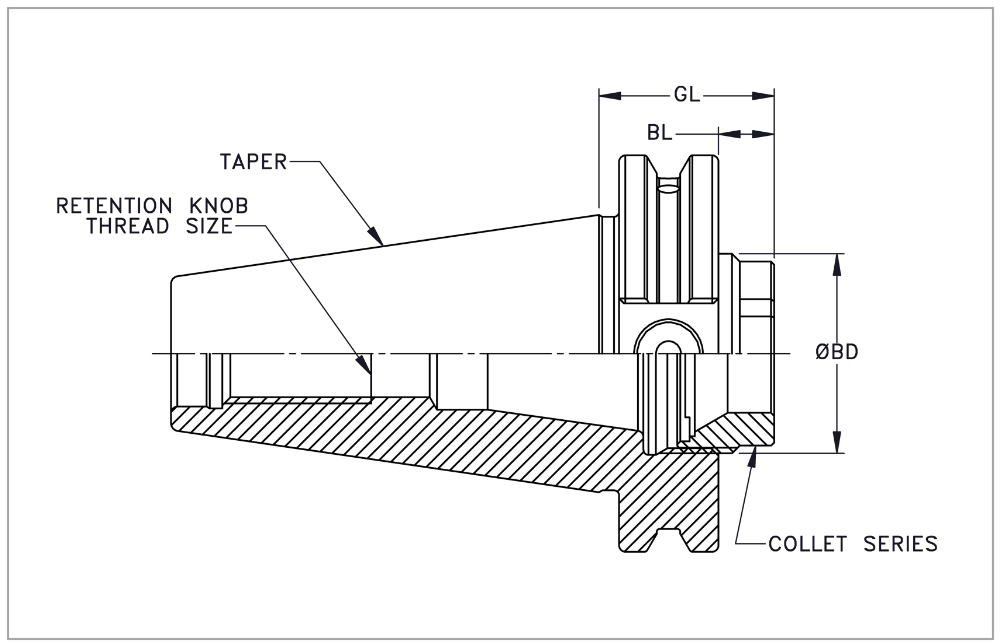

Enlarge Line Drawing & Specs
