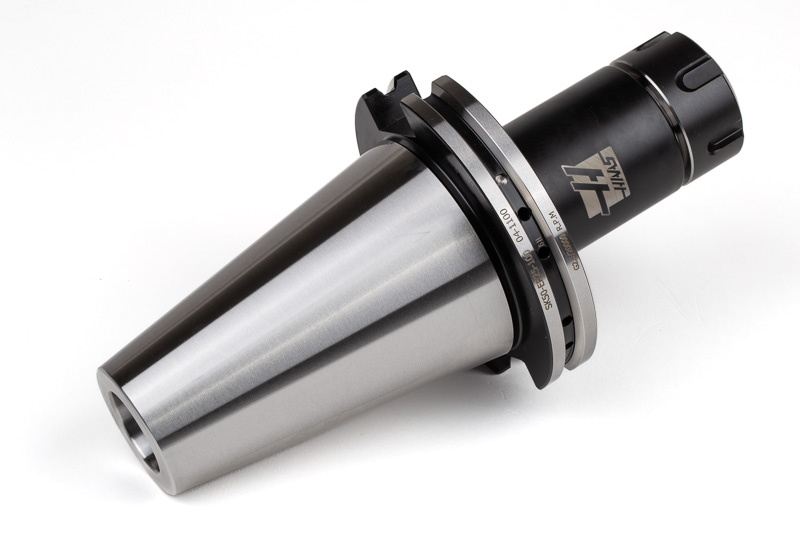

SK50 ER25 Collet Chuck x 100mm Gage Length, TSC
Part # 04-1100SK50-ER25-100
Description
This SK50 \ DIN 69871 ER25 collet chuck accepts a variety of ER25 collet styles, and has a 100mm gage length. The double-taper collet design provides high clamping force for round, smooth shank tools, and offers a wide gripping range with excellent TIR and balance. It is through-tool coolant (TSC) capable, with a M24x3.0 pull stud/retention knob thread.Download documents
Technical specifications
System of Measurement | Metric - ISO |
Taper | SK50 \ DIN 69871 |
Collet Series | ER-25 |
[ØBD] Body Diameter | 42.0 mm |
[GL] Gage Length | 100.0 mm |
[BL] Body Length | 80.9 mm |
Concentricity | 0.003 mm |
Balanced to RPM | 20000 |
Retention Knob Thread Size | M24X3.0 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 7.3 lbs \ 3.3 kg |
Country of Origin | China |
Technical Images
Enlarge Line Drawing & Specs
