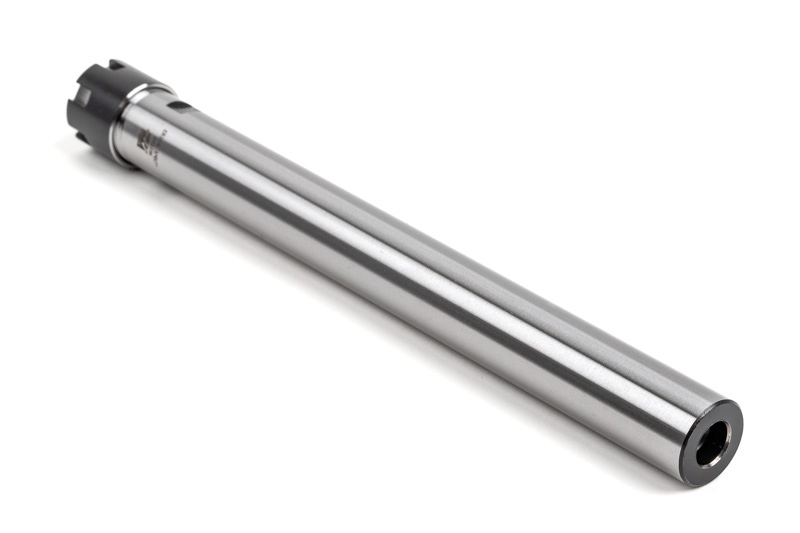

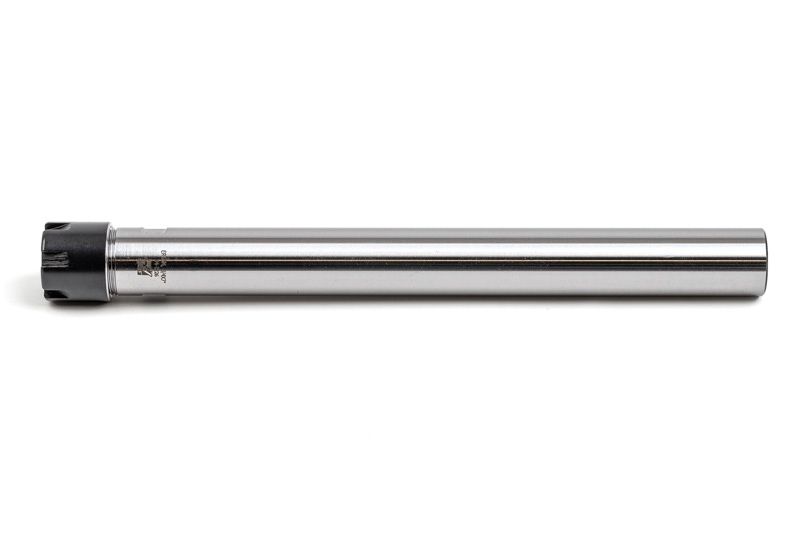

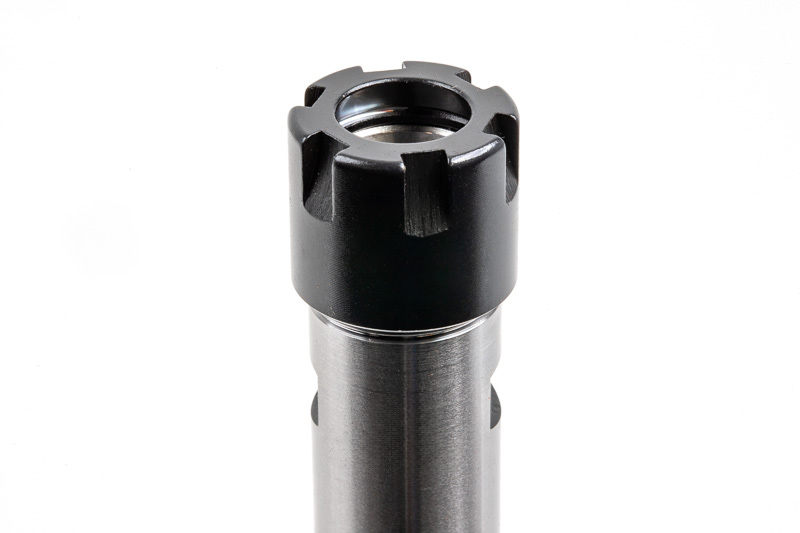

ER16M 3/4" Straight Shank Extended Collet Chuck x 7" Shank Length, TSC
Part # 04-1226COLLET EXTENSION, ER16M, 3/4x7"
Description
This straight shank ER16M collet extension accepts a variety of ER16M collet styles, and has a 0.75 in \ 3/4" shank, with a 7" shank length. It is primarily used as an extended-length milling collet, by clamping it into the appropriate end mill holder. The double-taper collet design provides high clamping force for round, smooth shank tools, and offers a wide gripping range with excellent TIR and balance.Technical specifications
System of Measurement | Inch - ANSI |
Collet Series | ER-16 |
[ØBD] Body Diameter | 0.866 in |
[ØDMM] Shank Diameter | 0.75 in \ 3/4" |
[LS] Shank Length | 7.0 in |
[OAL] Overall Length | 8.028 in |
[FS] Flat Size | 0.669 in |
[TP1] Thread | M10x1.5 |
Concentricity | 0.0004” |
Through Tool Coolant | Yes |
Weight | 0.9 lbs \ 0.4 kg |
Country of Origin | China |
Technical Images

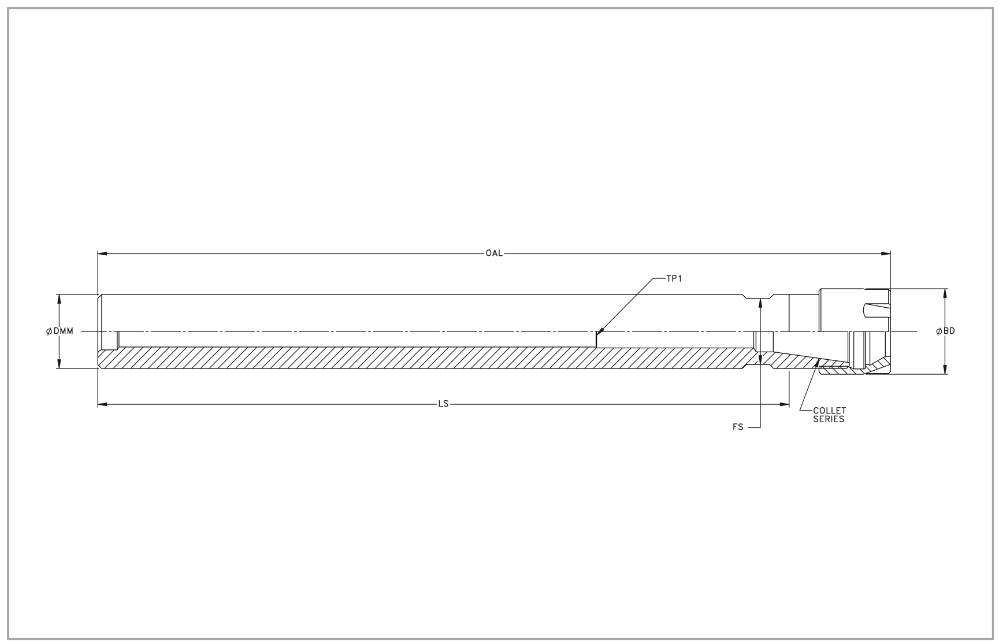

Enlarge Line Drawing & Specs
