ER40 32mm Straight Shank Collet Chuck with Flat, TSC

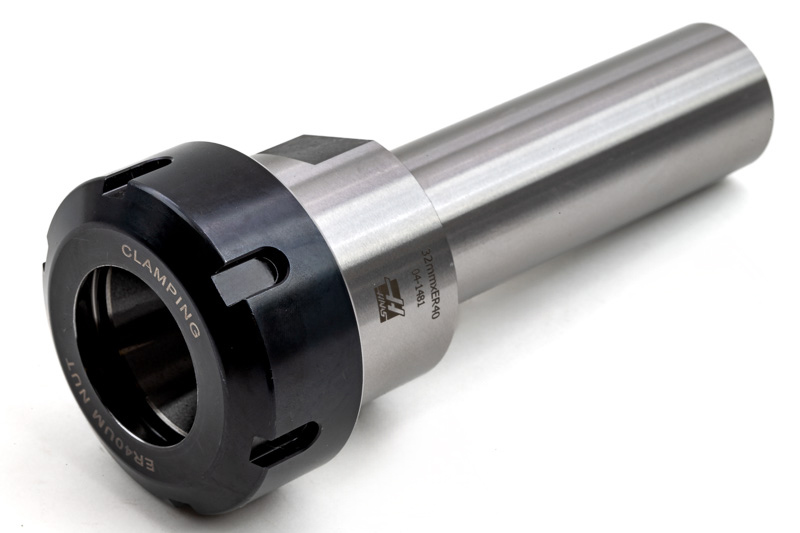

Part # 04-1481ST SHANK COLLET CHUCK 32mm x ER40 FLAT
Description
This straight shank ER40 collet chuck accepts a variety of ER40 collet styles, and has a 32mm shank. The precision cylindrical shank with a milled flat to mount into any internal (ID) turning holder with the appropriate bore size and set-screw clamping. The double-taper collet design provides high clamping force for round, smooth shank tools, and offers a wide gripping range with excellent TIR and balance. The collet chuck is through-tool coolant (TSC) capable, and also may be used as an extended-length milling collet, by clamping it into the appropriate end mill holder.Technical specifications
System of Measurement | Metric - ISO |
Collet Series | ER-40 |
[ØBD] Body Diameter | 63.0 mm |
[ØDMM] Shank Diameter | 32.0 mm |
[LS] Shank Length | 100.0 mm |
[LSCX] Maximum Clamping Length | 155.0 mm |
[OAL] Overall Length | 160.0 mm |
[FS] Flat Size | 45.0 mm |
[TP1] Thread | M22.5x1.5 |
Concentricity | 0.003 mm |
Through Tool Coolant | Yes |
Weight | 2.6 lbs \ 1.2 kg |
Country of Origin | China |
