HSK63A 20mm Hydraulic Chuck x 90mm Gage Length, TSC
Part # 04-1696HSK63A-HC-20-90MM
.png/_jcr_content/renditions/original./Hydraulic_Tool_Holder_(04-1664_04-1726).png?release=1.13.0)
Description
This HSK63A hydraulic milling chuck has a 20.0 mm bore diameter and a 90 mm gage length. The hydraulic fluid within the chuck compresses to provide equal pressure around the cutting tool shank, providing high grip strength, low runout, and excellent damping properties. It is through-tool coolant (TSC) capable.Technical specifications
System of Measurement | Metric - ISO |
Item | Hydraulic Chuck |
Taper | HSK63A |
[ØD] Bore Diameter | 20.0 mm |
[ØBD] Body Diameter | 42.0 mm |
[GL] Gage Length | 90.0 mm |
[BL] Body Length | 64.0 mm |
[LSCX] Maximum Clamping Length | 52.0 mm |
[OAL] Overall Length | 122.0 mm |
Concentricity | 0.003 mm |
Balanced to RPM | 25000 |
Through Tool Coolant | Yes |
Screw | T5 |
Spindle Drive Slots | Yes |
Weight | 2.9 lbs \ 1.3 kg |
Country of Origin | China |
Technical Images

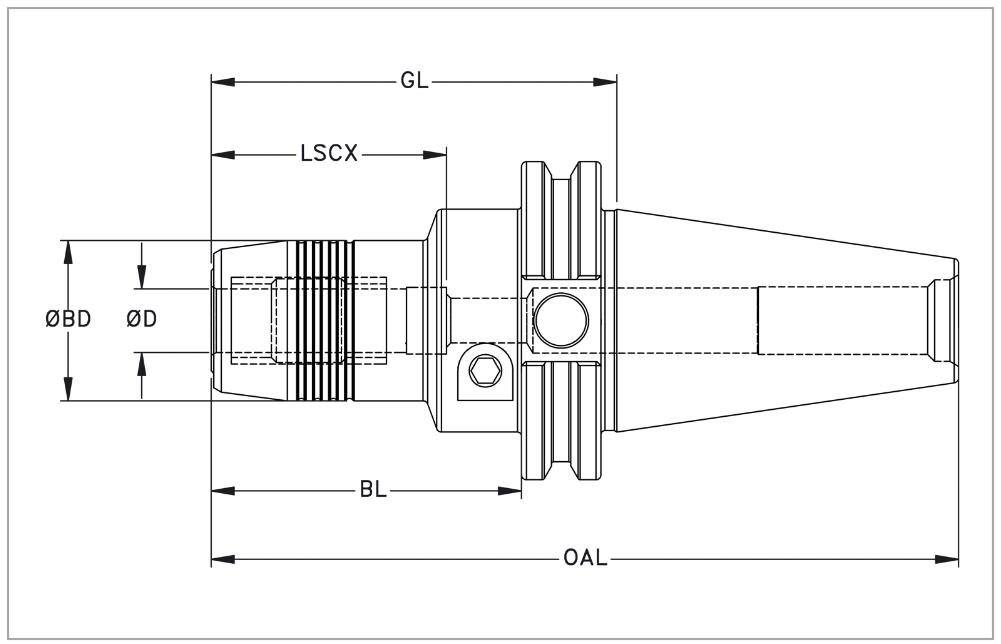

Enlarge Line Drawing & Specs
