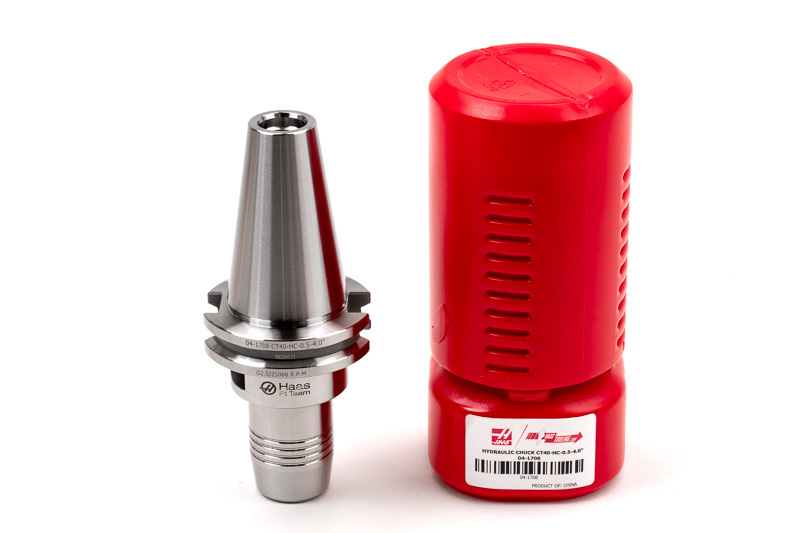

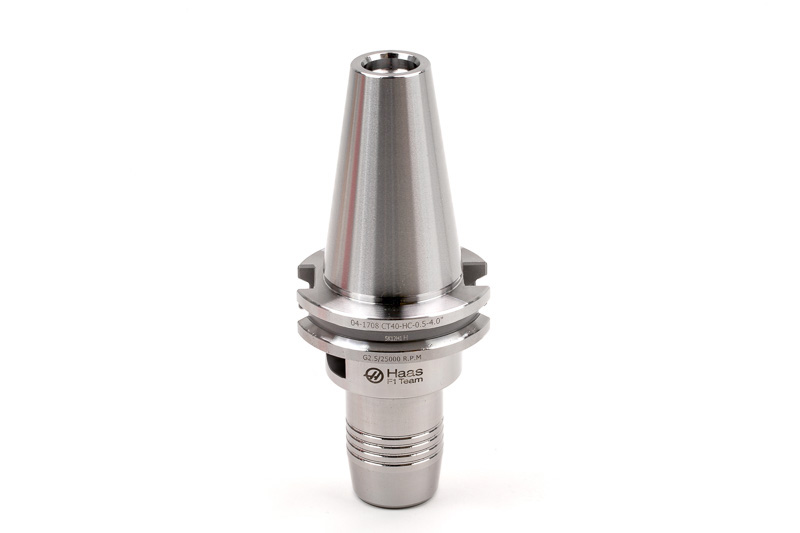

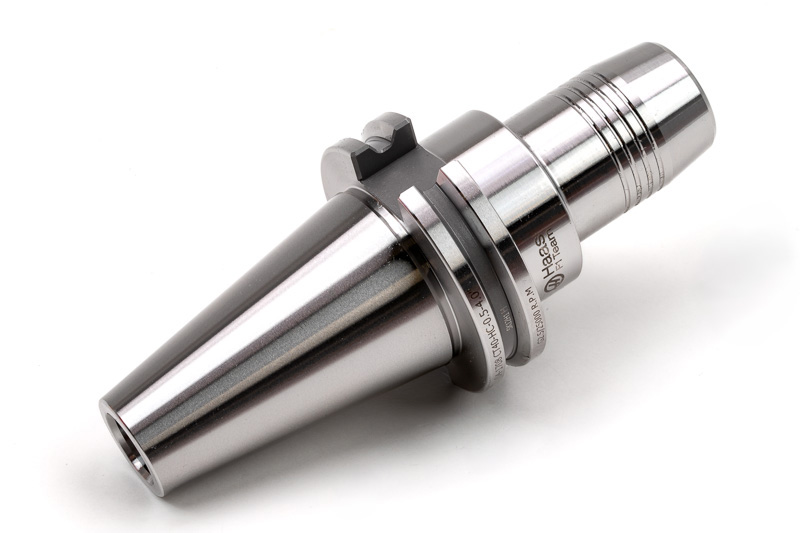

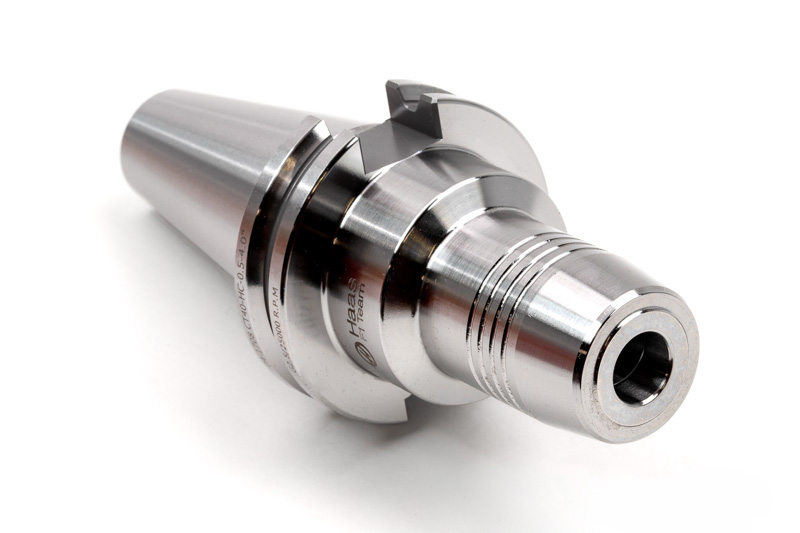

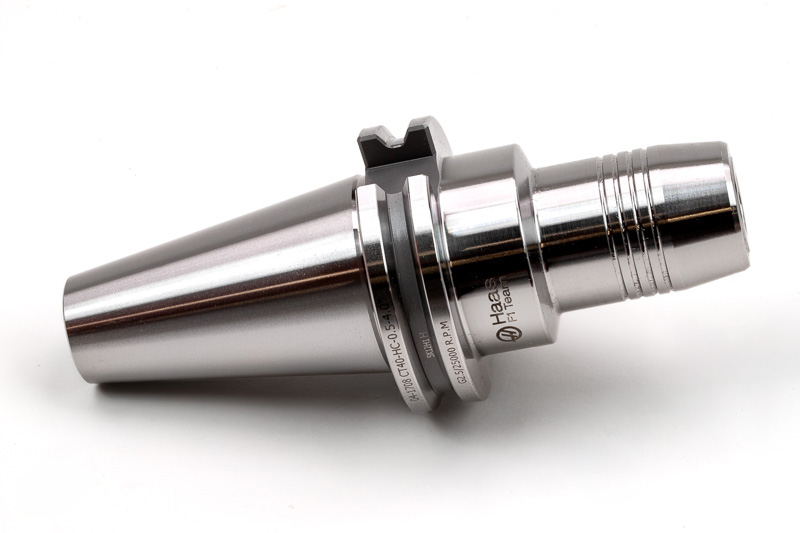

CT40 1/2" Hydraulic Chuck x 3.189" Gage Length, TSC

Part # 04-1708CT40-HC-0.5-3.19"
Hydraulic Tool Holder (04-1664 - 04-1726).png
Hydraulic Tool Holder (04-1664 - 04-1726).png
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This CT40 hydraulic milling chuck has a 0.5 in \ 1/2" bore diameter and a 3.189" gage length. The hydraulic fluid within the chuck compresses to provide equal pressure around the cutting tool shank, providing high grip strength, low runout, and excellent damping properties. It is through-tool coolant (TSC) capable, with a 5/8"-11 pull stud/retention knob thread.
Technical specifications

System of Measurement

Inch - ANSI

Item

Hydraulic Chuck

Taper

CT40

[ØD] Bore Diameter

0.5 in \ 1/2"

[ØBD] Body Diameter

1.26 in

[GL] Gage Length

3.189 in

[BL] Body Length

2.439 in

[LSCX] Maximum Clamping Length

1.85 in

[OAL] Overall Length

5.88 in

Concentricity

0.00012”

Balanced to RPM

25000

Retention Knob Thread Size

5/8"-11

Through Tool Coolant

Yes

Screw

T5

Spindle Drive Slots

Yes

Weight

2.6 lbs \ 1.2 kg

Country of Origin

China
Technical Images
Hydraulic Tool Holder (04-1664 - 04-1726).png
Enlarge Line Drawing & Specs
