Name: Riser Block for 5" (130mm) Self-Centering Vise
Brand: Haas Tooling
SKU: 05-0090
Price: 839.95 USD
Availability: InStock

Tooling

Winner's Circle

Shop Support

Automation Accessories

Tool Management

Measuring & Inspection

Mill Toolholding

Mill Workholding

Mill Tooling

ER Collets & Chucks

Boring Systems

Broaching

Lathe Toolholding

Lathe Workholding

Lathe Tooling

Tombstones

Holemaking

Threading

Tool Storage

Machine Maintenance

Tooling Accessories

Deburring & Abrasives

Apparel & Accessories

Ecomm Service Parts

Maintenance

Tool Changer

Chip Management

Enclosure

Spindles

Coolant

Hydraulics

Lubrication

Automatic Pallet Changer

Probing

Electrical Cabinet

Pendant

Counterbalance

Rotary

Tailstock

Lathe Turret

Leveling & Anchoring

Adapter Plates

FREE 2-DAY DELIVERY

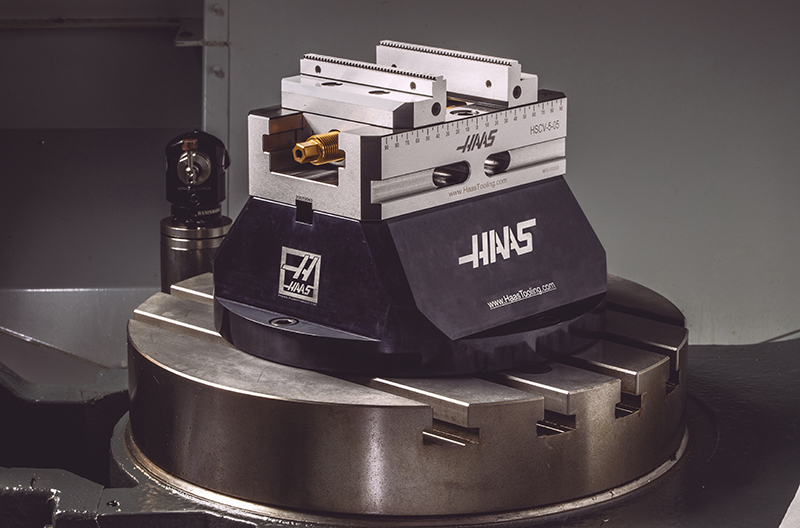

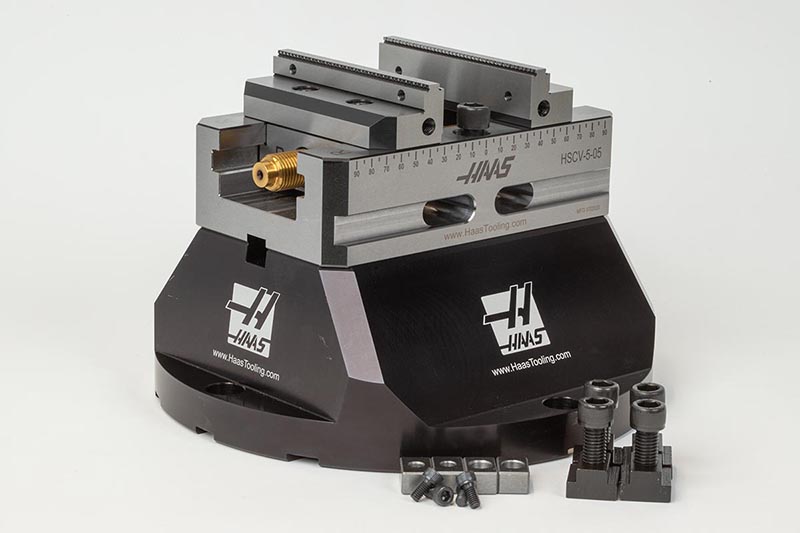

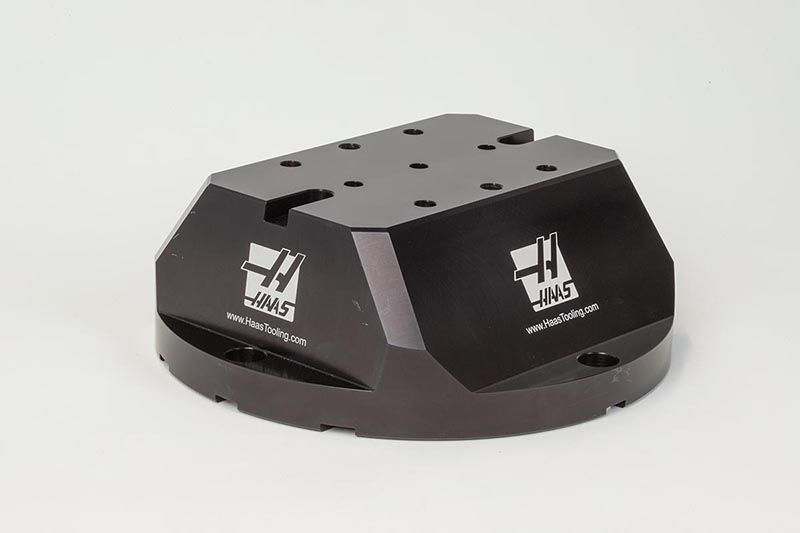

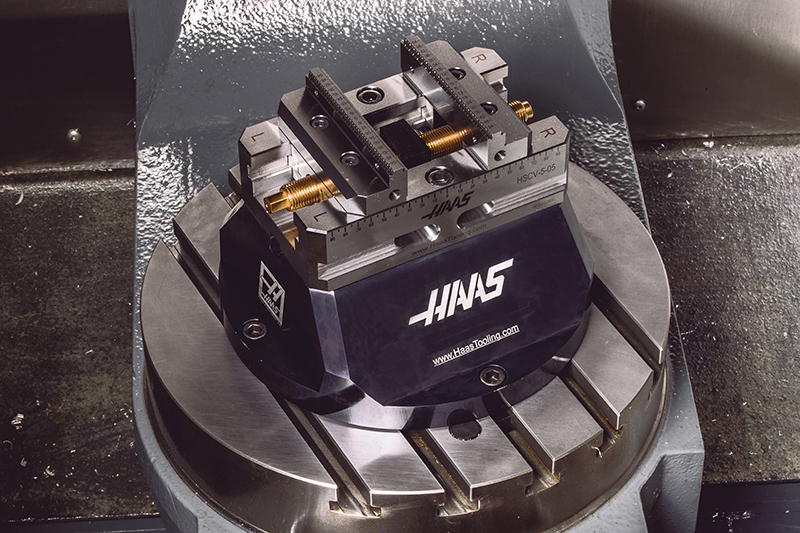

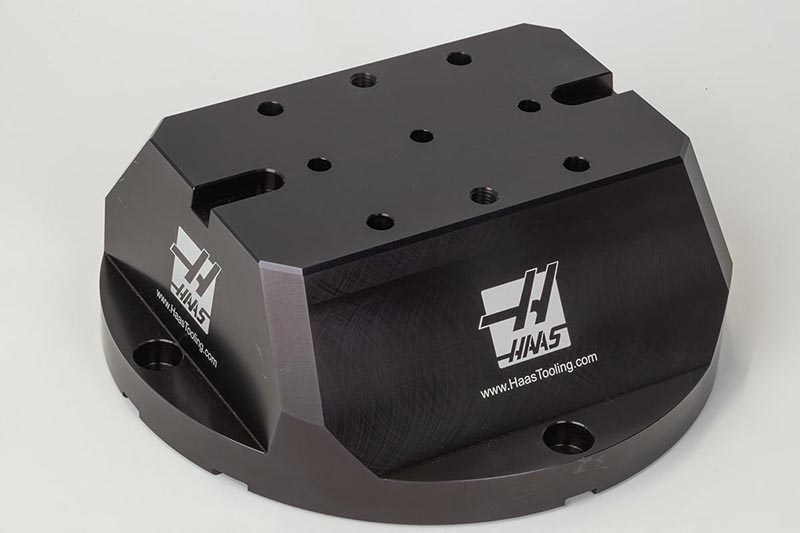

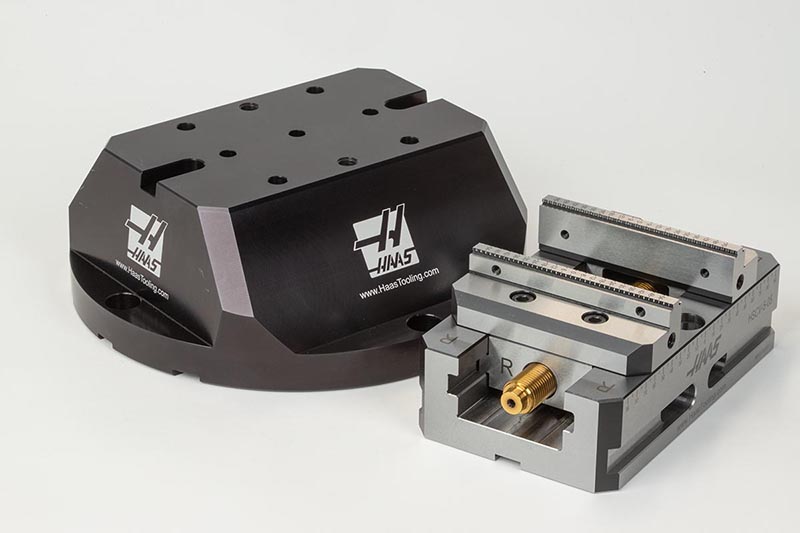

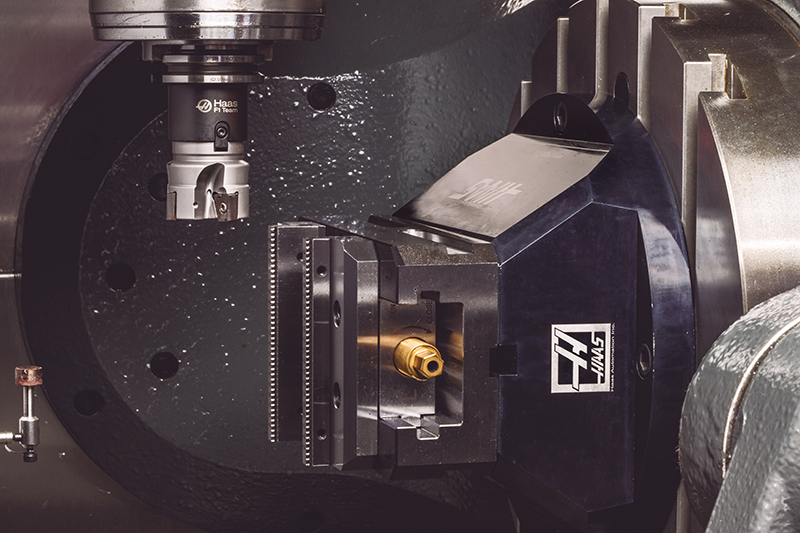

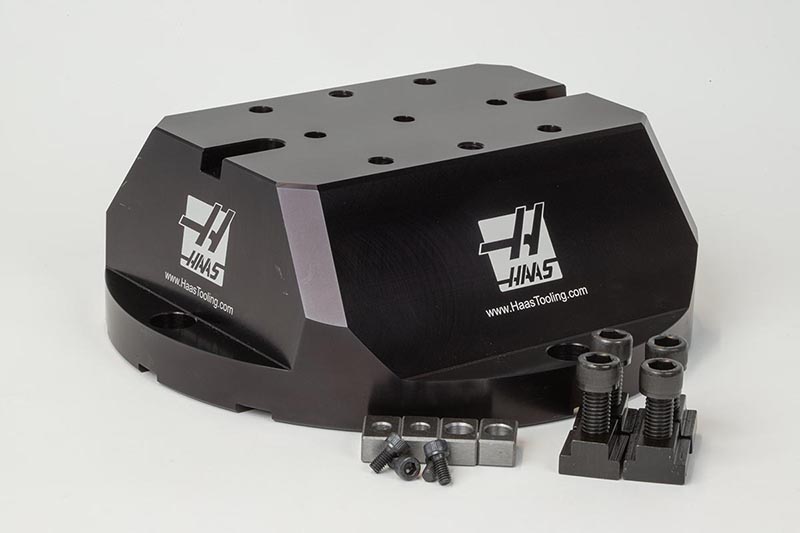

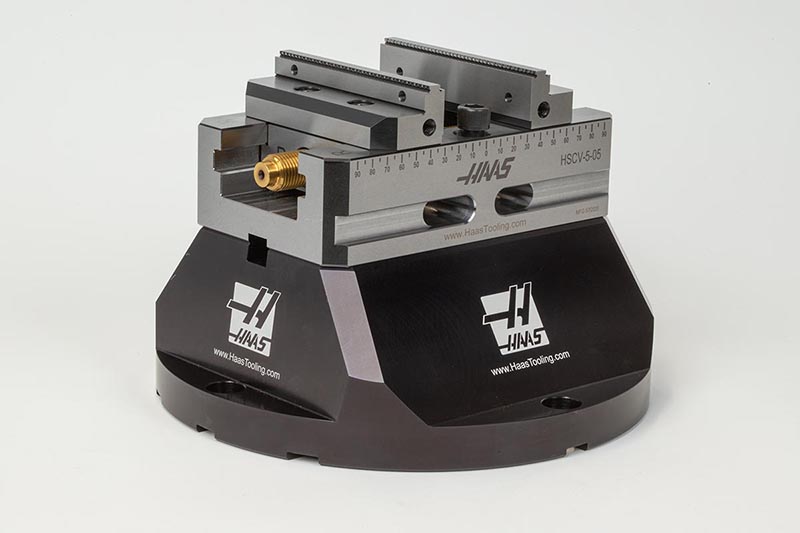

This riser block for the Haas 5" self-centering vise raises the vise 100mm off the platter surface to allow better access to all five sides of the workpiece during 5-axis applications. The sloped sides of the riser provide additional clearance for the spindle when the B-axis is at 90°. The riser is designed to mount to all Haas UMC platters, and all mounting hardware is included.

Riser Block for 5" (130mm) Self-Centering Vise

Doug

What’s the best way to indicate this base in on set up so it’s centered on my umc?

On Sale

Vise Type

Vise Holding Type

Number of Stations

Vise Size

Jaw Style

Material

[JW] Jaw Width

Type

[VO] Vise Opening

[OAD] Overall Depth

These aluminum machinable vise jaws for Haas 5" self-centering vises are easily machined to the shape of your part for custom workholding applications. The flat/no step jaws are 5" wide by 2" tall by 2-1/2" thick.

Aluminum Machinable Vise Jaws, 5" x 2-1/2" | Haas Tooling

Aluminum 5" (130mm) x 2-1/2" (64mm) Machinable Vise Jaws

These steel machinable vise jaws for Haas 5" self-centering vises are easily machined to the shape of your part for custom workholding applications. The flat/no step jaws are 5" wide by 2" tall by 2-1/2" thick.

Soft Steel 5" (130mm) x 2-1/2" (64mm) Machinable Vise Jaws

These non-machinable vise jaws for Haas 5" self-centering vises are constructed of hardened steel, and feature serrated gripping surfaces to hold parts securely during machining. The jaws are reversible to accommodate different sized parts.

Hard Steel 5" (130mm) Non-Machinable Serrated Vise Jaws

This Haas 5" self-centering vise has a maximum opening of 5", and         features a compact, low-profile design that automatically adjusts the               workpiece to the center of the vise for increased precision and                     repeatability. The simple bolt-on jaws are easily changed or reversed,              and have built-in serrated gripping surfaces which do NOT feature dovetail jaws. Includes one set of                 hardened-steel jaws, a ratchet wrench, and all necessary mounting                   hardware. Replacement hard jaws, as well as machinable steel and                    aluminum soft jaws, are available.

5 Inch Self-Centering Vise, 5" Opening | Haas Tooling

5" (130mm) Self-Centering Vise, 5" (130mm) Opening

5" Self-Centering Vise and Riser Kit

Relevance

Part # (Lowest)

Part # (Highest)

Lowest Price

Highest Price

New Arrivals

You have {value, plural, =1 {1 item} other {# items}} in your cart from the last session. Would you like to merge it with your current cart?

Cart merging

Welcome Back!

Enter your email in order to continue as guest

Your account has been locked

User verification

Only {value} units in stock. Do you want to proceed with {value} units?

Stock validation

Make sure to enter coupon code exactly as shown, including dashes.

Please have your Order No: {orderId} ready when inquiring about your order.

Contact Customer Service at +32 2 526 17 48.

If you are calling regarding your shopping cart, please reference the following Shopping Cart ID: {value}.

Contact Customer Service at (805) 988-6919.

Need Help?

Your current cart will be merged with the items from this email. Do you want to proceed?

Cart Merging

Import New Cart

Are you sure you want to clear your cart? This will remove all items.

Clear Cart

To add this item, your cart needs to contain only clearance or only regular products.

Clearance items are ordered separately

Enter the recipient's email address and an additional message (optional), and we will send them an email with a link to view the contents of your cart.

Your appointed Distributor is:

Share Cart with Factory Outlet

Share Cart

Please verify that the taper of the tooling in your shopping cart is correct for your machine, before completing your purchase.

Tooling Taper Verification

Tax exemption must be approved before placing your order. Once an order is invoiced, we cannot refund any taxes. Click the button below for instructions on how to submit your tax-exempt certificate.

Tax-Exempt Order

Products mix

Share via Email

Taper Verification

Tax Exempt

Need to Place a Tax-Exempt Order?

Winner's Circle Members enjoy up to 8% off every order, free {store, select, us {next-day} other {express}} delivery and low annual membership fee.

Winner's Circle Education Members enjoy free {store, select, us {next-day} other {express}} delivery and a low annual membership fee.

Add <winnerCircle>Winner's Circle</winnerCircle> & {isEdu, select, true {Get Free Delivery} other {<save>save {amount}!</save>}}

<bold>EXTRA DISCOUNT</bold> - 10% OFF ENDS FRIDAY

Just enter your password and confirm your email address.

Sign up today for faster checkouts, exclusive deals, and more!

When you join the Haas Tooling Winner's Circle, you'll get even better prices and express delivery.

When you join the Haas Tooling Winner’s Circle, you’ll get express delivery.

Haas Tooling Winner's Circle

We couldn’t retrieve delivery options for your address. Please update the quantity or check the address and try again. If the issue persists, contact us or call us at <phoneLink>{phoneNumber}</phoneLink> to complete your order.

Free shipping is valid on <important>orders of 99 € or more</important> (after promotions and discounts are applied), shipped to a single address within the European Union.

Free shipping is valid on <important>orders of $99 or more</important> shipped to a single address in the 48 contiguous United States, after promotions and discounts are applied.

Free Shipping

Checkout Info

All clearance items in your order have sold out and cannot be ordered. Clearance products are not restocked or backordered. Please update your cart to continue.

Clearance Items Unavailable

One or more clearance items in your order are no longer available in the requested quantity.

Stock Update for Clearance Items

Some items in your order are currently out of stock and will be shipped once available.

Some items in your order are not fully in stock and will be shipped later.

Some clearance items have sold out and were removed from your order.

Product No Longer Available

Stock Information

We couldn’t verify this shipping address, please review it carefully before continuing. Proceeding may result in delivery delays or a failed shipment.

Address Validation

Pay by Credit Card

We will ship your order once we have received the total amount of your order. For the payment, you will receive the instructions, sent in a separate confirmation email. It takes about 2 working days before your transfer is processed.

Due to low or very low stock, or backordered status of one or more items in your cart, we are unable to proceed with the Bank Transfer payment method. Please remove these items or choose a different payment method to continue.

Order by Bank Transfer

Your PayPal authorization is complete. The payment amount has been reserved. You will be charged once you submit your order.

Pay with PayPal

You can use your PayPal account on our site.

Pay by PayPal

In addition to ACH, bank wires, and check payments, terms customers are now eligible to make payments through our Bill Pay Portal.

We've created a step-by-step application below outlining the entire application process along with the link to apply.

Not sure what to expect?

You don’t have "Pay by Invoice" service activated. For Activation select "Apply Now".

Pay by Invoice

Once you click "apply," you will be taken to our third-party credit application site. Click "start" to begin the application.

Pay by Invoice is not yet active. Once you get approved, you can use this option. Feel free to apply but please select other payment option for this order.

Invoice not active yet.

You don’t have 'Pay by Invoice' service activated. For Activation select 'Apply Now'

Purchase Order Number / Optional / 30 char

You don’t have "Terms" service activated. For Activation select "Apply Now".

Terms

You’ll be able to use this payment option once your Terms account is approved. You can apply now, or choose a different payment method to complete this order.

Terms not active yet.

You don’t have 'Terms' service activated. For Activation select 'Apply Now'.

Pay by Terms

This section highlights tooling and accessories that are directly compatible with the main product based on key technical specifications such as taper, gauge length, and tool diameter.

Filters & Sort

Filters

Title

Thank you for submitting the form. Good luck!

Go to homepage

Looking for a Haas machine? You’re just a few clicks away from the full machine experience.

This page is a reference-only catalogue to help you find what you need. Machines are not available for purchase or full browsing on the Tooling website. For complete specs, configurations, and purchasing, please visit our main machines site.

Machines Catalogue

Please select your country and enter a valid VAT ID number. You can store only one VAT number per country.

Your previously entered VAT ID was invalid/unverified. Please update the VAT ID. You can only save one VAT ID number per country.

 Edit VAT ID

Create New VAT ID

Your Addresses

Billing Details

If you cancel now, you can still access your membership until {date}.

Renews {date}

Your Winner’s Circle membership expired on {date}. Please renew to continue enjoying exclusive benefits.

Expired {date}

Your membership is active until {date}. Continue now to ensure uninterrupted access after that date.

Expires {date}

Your Membership

Haas Bucks

LOW ANNUAL MEMBERSHIP

FREE {store, select, us {NEXT-DAY} other {EXPRESS}} SHIPPING

Enjoy discounts from 5% to 8% on all Haas Tooling products, based on your tier level.

Up to 8% OFF Every Purchase

Our special loyalty program designed just for you. Enjoy {store, select, us {next-day} other {express}} shipping and special savings every time.

Winner’s Circle Benefits

Favorites

This order has been cancelled. You can still view the order items and put the in new Cart if you want.

Order #{orderNumber}{isFullCancellation, select, true {} other { Partially}} Cancelled

Invoices

The order has been partially cancelled. The remaining items will still be processed.

Please provide additional details about your return, so we may process your request more efficiently. Please note that refunds may have a 20% restocking fee and cost of shipping subtracted. <link>Click here</link> for more info.

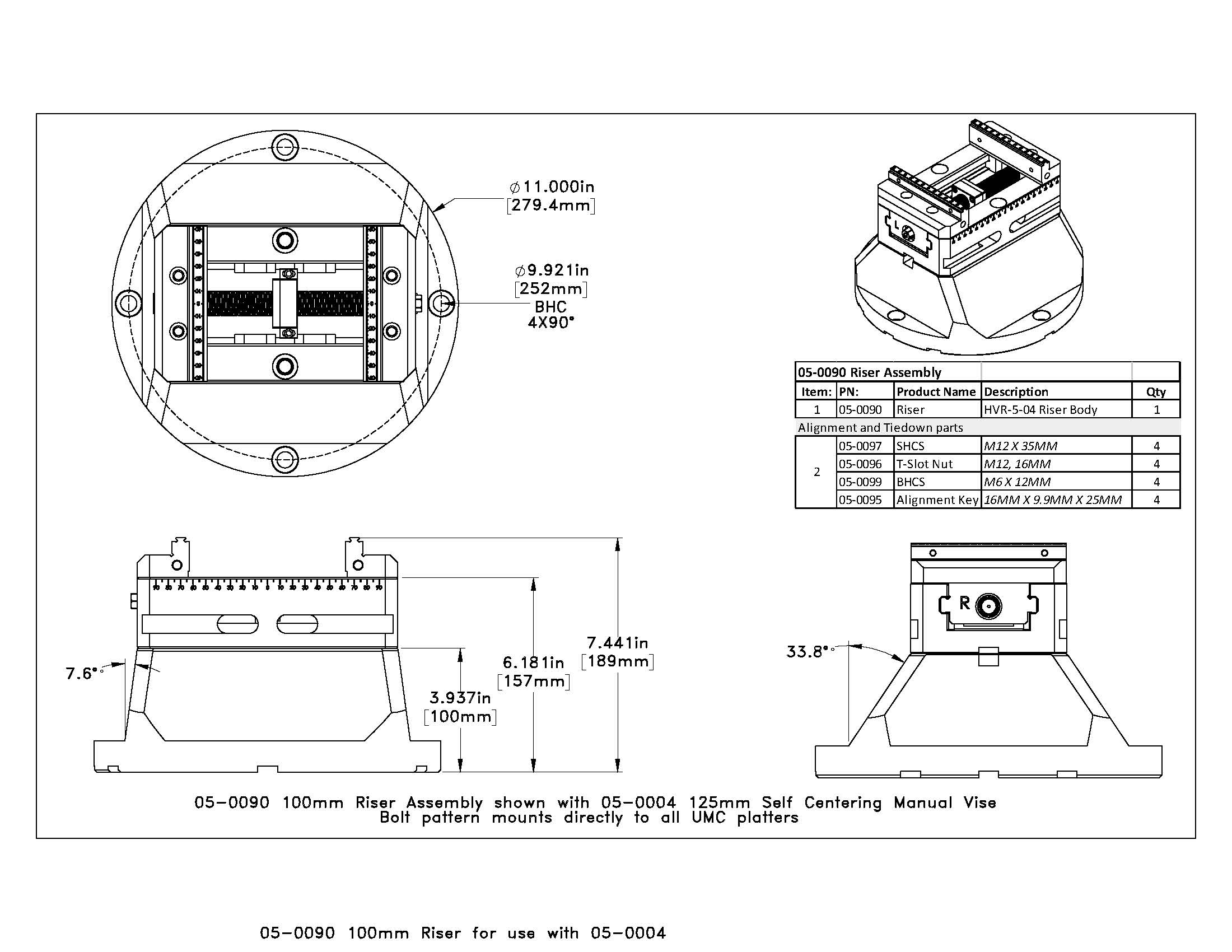

Material	Aluminum
[ØB] Base Diameter	11.0 in \ 279.4 mm
[ØBHC] BHC Diameter	9.921 in \ 252.0 mm
[ØD1] Counterbore Diameter	0.5 in \ 12.7 mm
[BH] Body Height	6.18 in \ 157.0 mm
[OAH] Overall Height	3.937 in \ 100.0 mm
[a] Dimension	0.394 in \ 10.0 mm
[b] Dimension	0.394 in \ 10.0 mm
[c] Dimension	3.78 in \ 96.0 mm
[BT] Base Thickness	3.937 in \ 100.0 mm
[S] Screw Spacing	4.0 in \ 101.6 mm
[TP] Thread Pitch	M12-1.75
Weight	22.5 lbs \ 10.2 kg
Country of Origin	Taiwan

Shop Tooling

Riser Block for 5" (130mm) Self-Centering Vise

Description

Technical specifications

Technical Images
