System of Measurement	Metric - ISO
Clamping Type	S - Screw-On
Cut Type	Roughing
Type	Cartridge
Insert Style	C Style - 80° Rhombic
[ØD1] Boring Range	76.0-97.0mm (2.992-3.819")
Connection Size	36
Insert Size	CCMT1204ㅁㅁ
[OAL] Overall Length	64.5 mm
[IC] Inscribed Circle Diameter	0.5 in \ 12.7 mm
[D1] Insert Hole Size	0.217 in \ 5.5 mm
[L10] Cutting Edge Length	0.508 in \ 12.9 mm
Weight	0.3 lbs \ 0.1 kg
Country of Origin	South Korea

Shop Tooling

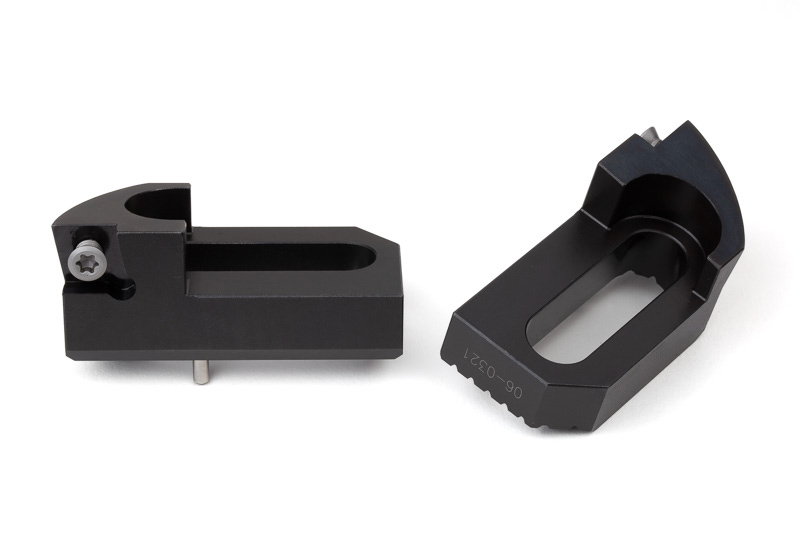

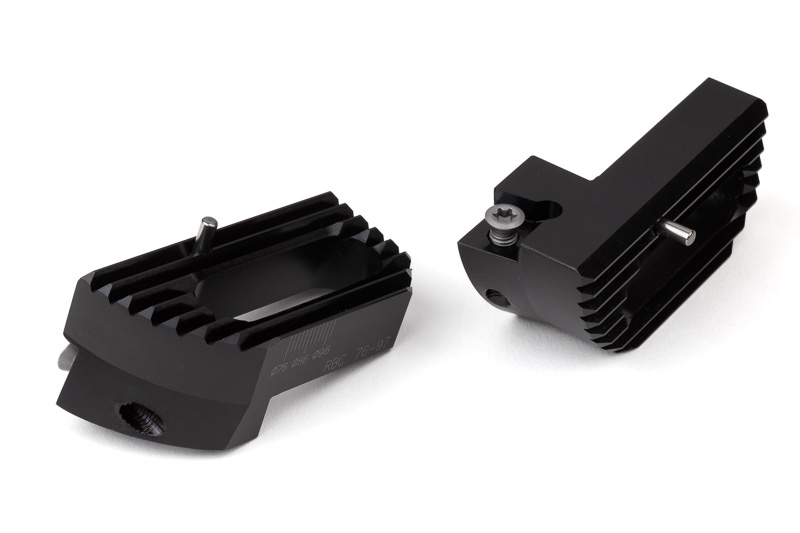

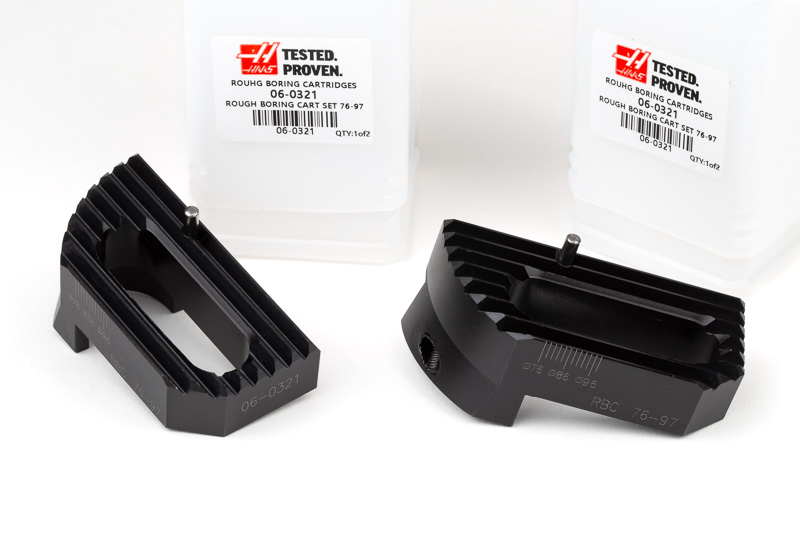

76.0 - 97.0mm (2.992 - 3.819") Ø [36] Rough Boring Cartridge, Set of 2

HOW TO USE THIS PRODUCT?

Download documents

Technical specifications

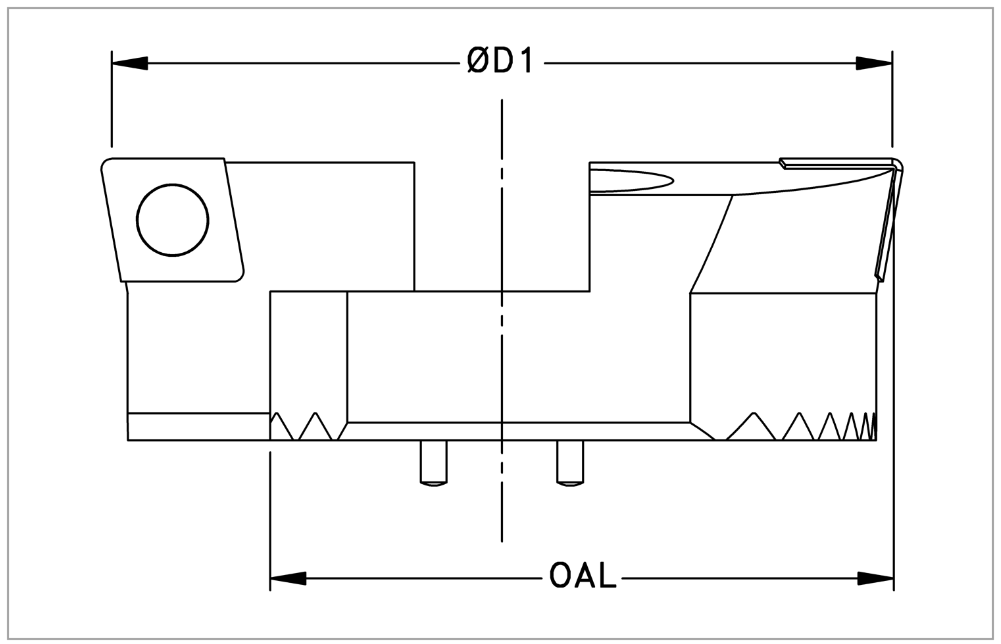

Technical Images
