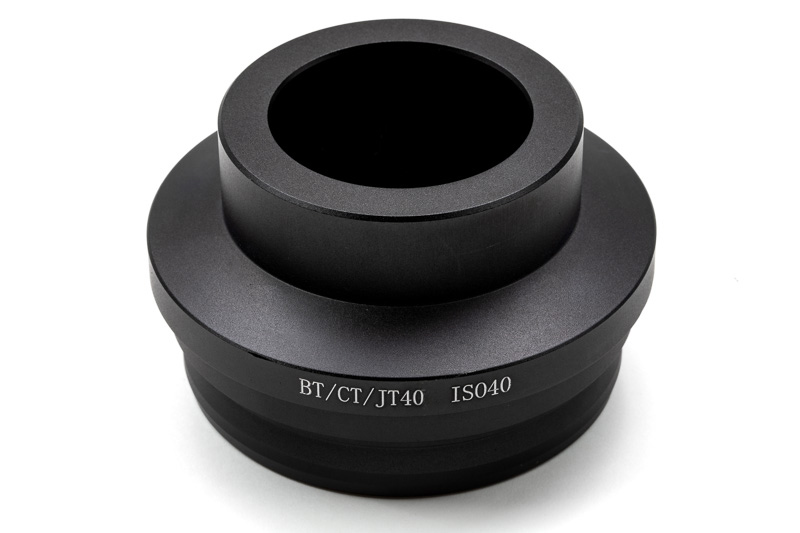

40-Taper Shrink-Fit Toolholder Sleeve, HSF-450

Part # 06-0540BT/CAT/JT40 - HSF-450 TOOL TAPER SLEEVE
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This shrink-fit toolholder sleeve is designed to fixture 40-taper toolholders and is intended exclusively for use with the HSF-450. It ensures proper alignment and stability of the toolholder to the heating head during the thermal expansion and contraction processes required to insert or remove cutting tools. This sleeve supports CT40, BT40, and SK40 tool holders.
Technical specifications

Type

Taper Pot

Taper

CT40, BT40, SK40 \ DIN 69871

[ØD] Bore Diameter

1.8 in \ 44.7 mm

Material

Aluminum

Weight

1.0 lbs \ 0.4 kg

Country of Origin

China
