System of Measurement	Universal - ANSI, ISO
Machine Models	VF-4
Pallet Pool Compatible	Yes
Plate Style	Rectangle
Plate Design	Grid
Material	Steel
[OAL] Overall Length	26.0 in \ 660.4 mm
[OAW] Overall Width	19.5 in \ 495.3 mm
[OAH] Overall Height	0.5 in \ 12.7 mm
[a] Dimension	1.189 in \ 30.2 mm
[b] Dimension	11.811 in \ 300.0 mm
[c] Dimension	12.598 in \ 320.0 mm
[d] Dimension	3.45 in \ 87.65 mm
[e] Dimension	3.937 in \ 100.0 mm
[TP1] Thread	M12x1.75
Parallelism	0.002 in \ 0.051 mm
Weight	76.100 lbs \ 34.600 kgs
Country of Origin	China

Shop Tooling

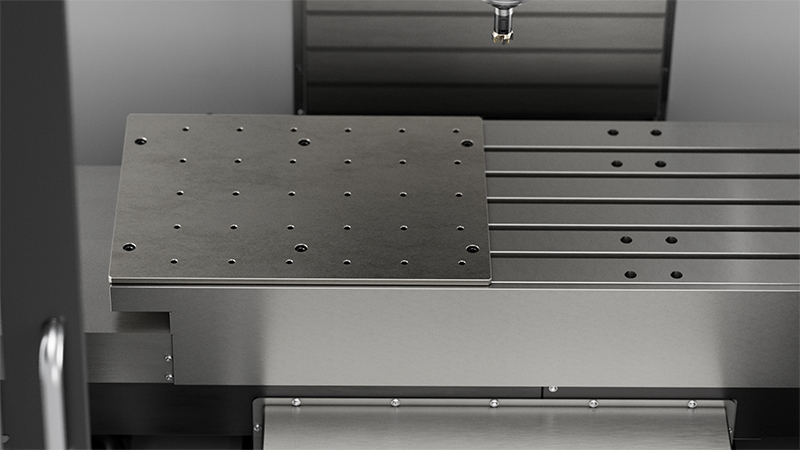

VF-4 Rectangle Grid Steel Tooling Fixture Subplate, 19-1/2" Width x 26" Length x 1/2" Thick
