Universal Table Top/Cabinet 36"L x 24"W x 36"H
Technical specifications
Type | Accessory |
Weight | 178.0 lbs \ 80.7 kg |
Country of Origin | India |
Universal Table Top / Cabinet

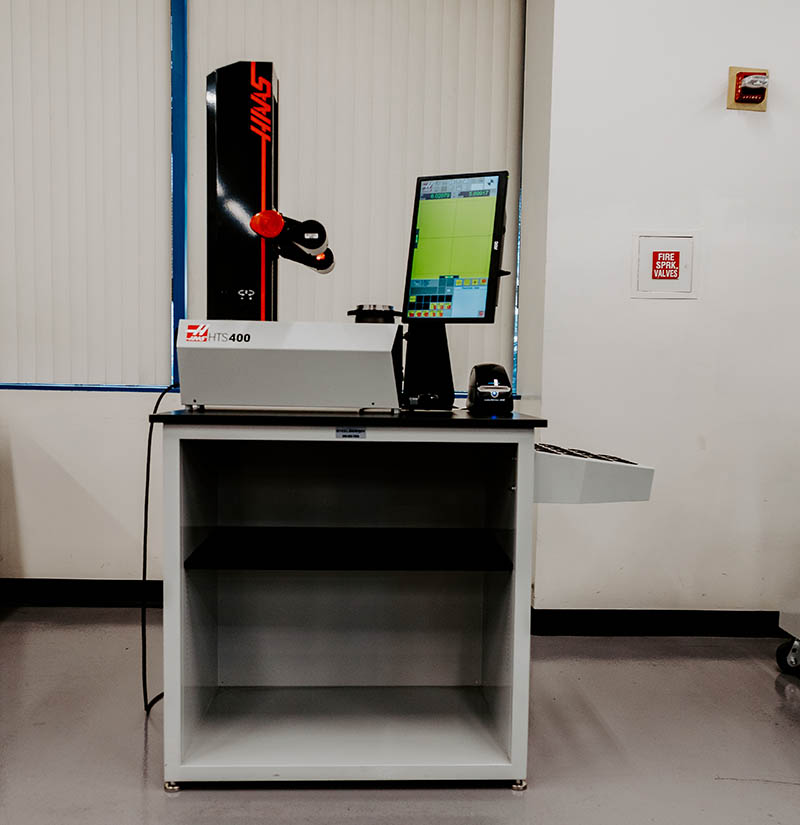

This compact table top storage cabinet features heavy-duty, welded-steel construction, making it the perfect platform for Haas Automation’s tool management equipment. Rated to hold up to 500 lb (227 kg), the table top will easily support the Haas HTS400 Tool Presetter or the HSF-325 Shrink Fit Machine, with plenty of weight capacity to spare.
The HTS400 and HSF-325 each fit perfectly on the 24" x 36" (610 x 914 mm) table top, and the cabinet’s adjustable feet allow you to level the table top, to ensure smooth movement of the devices’ mechanisms.
The single shelf in the cabinet easily adjusts to maximize storage space, and is rated to support up to 100 lb (45 kg).
Both sides of the Universal Table Top Cabinet feature a hole pattern for attaching optional tool trays that can hold up to 18 toolholders. Optional tool trays are available in ISO 30, ISO 40, and HSK63A.
