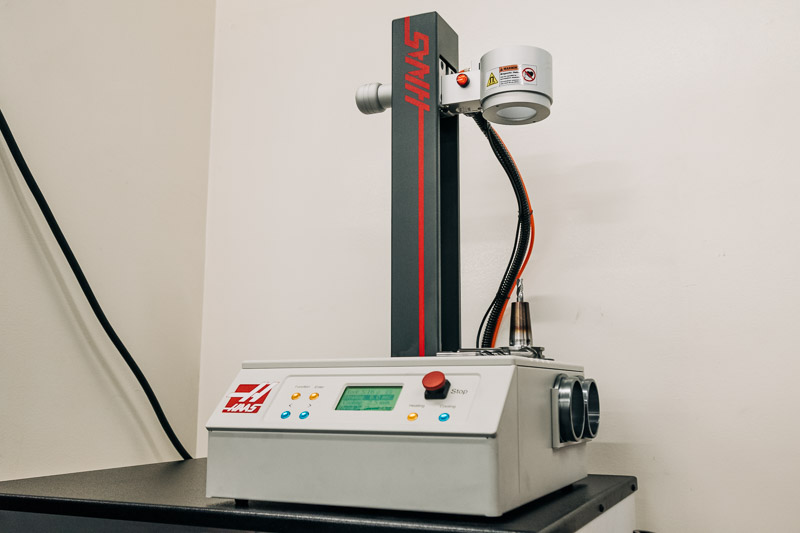

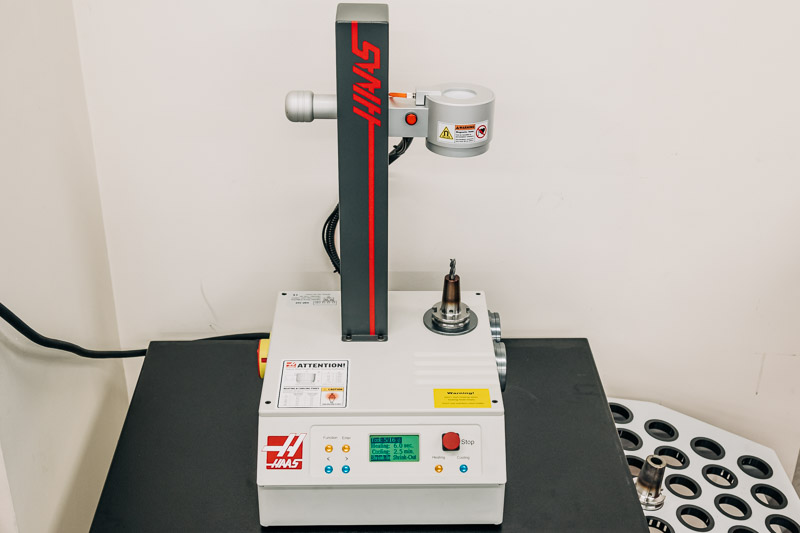

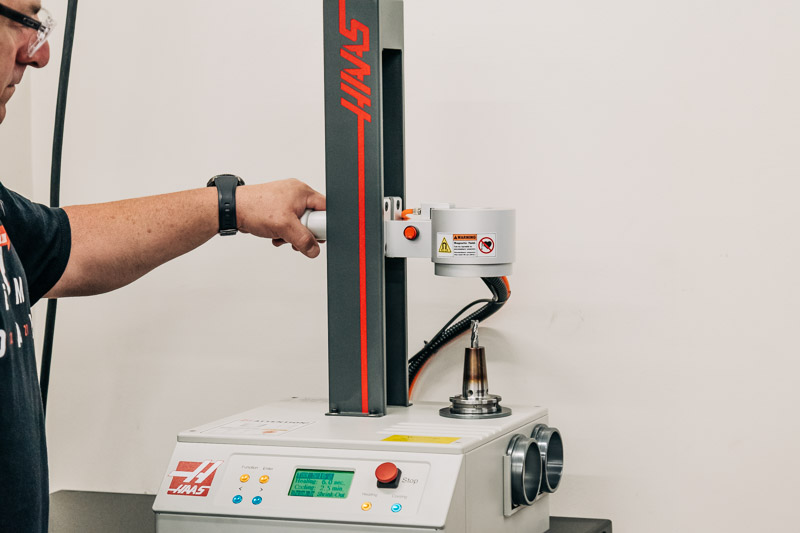

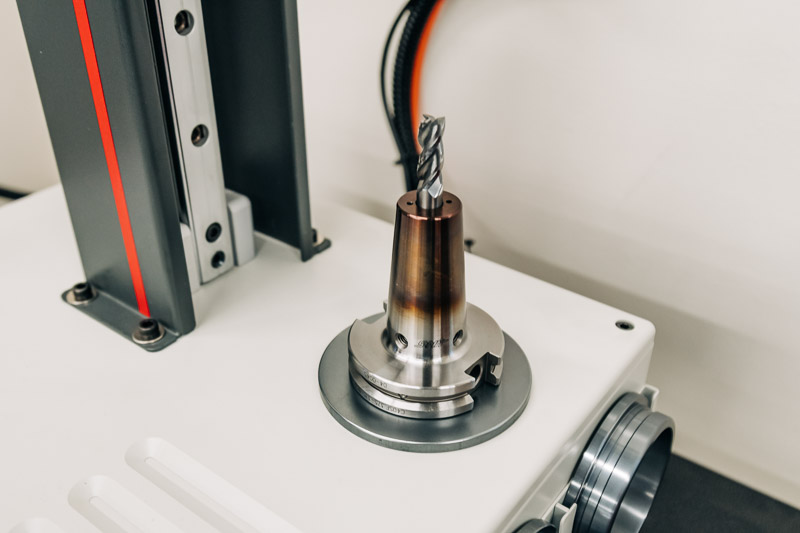

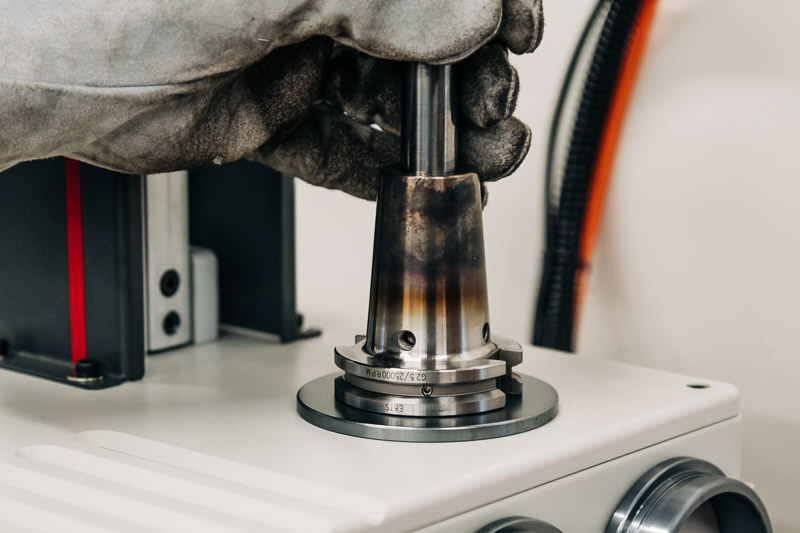

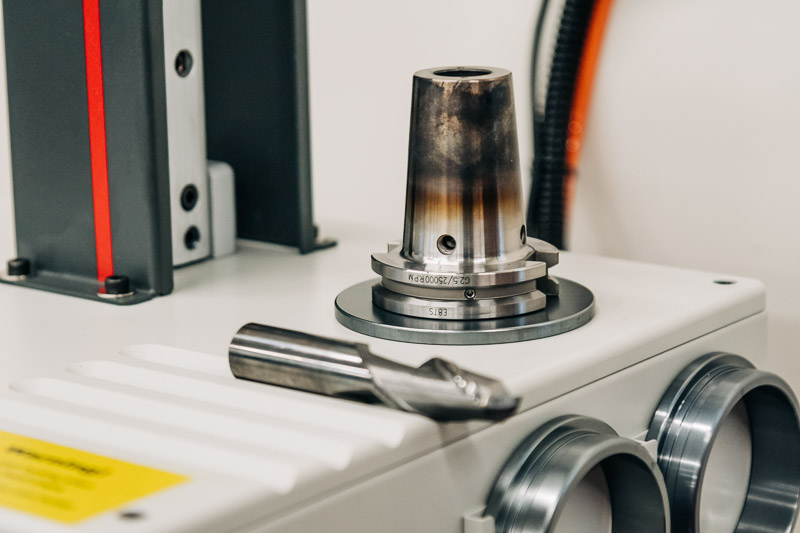

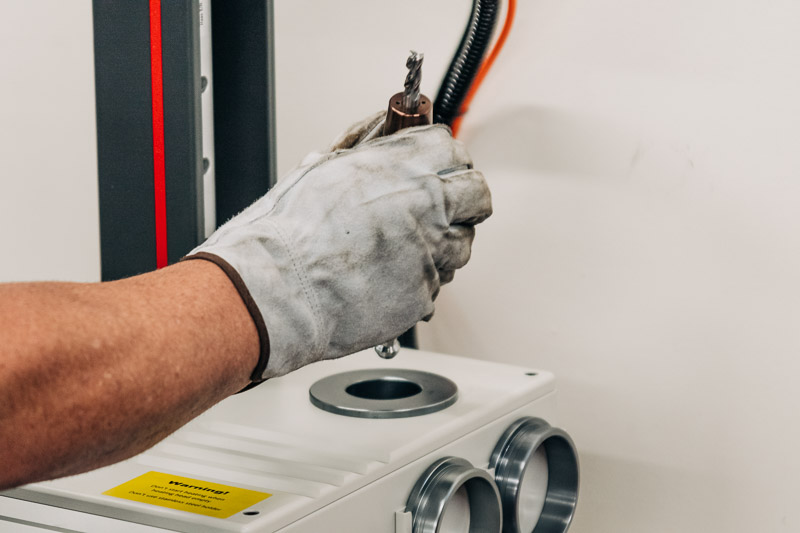

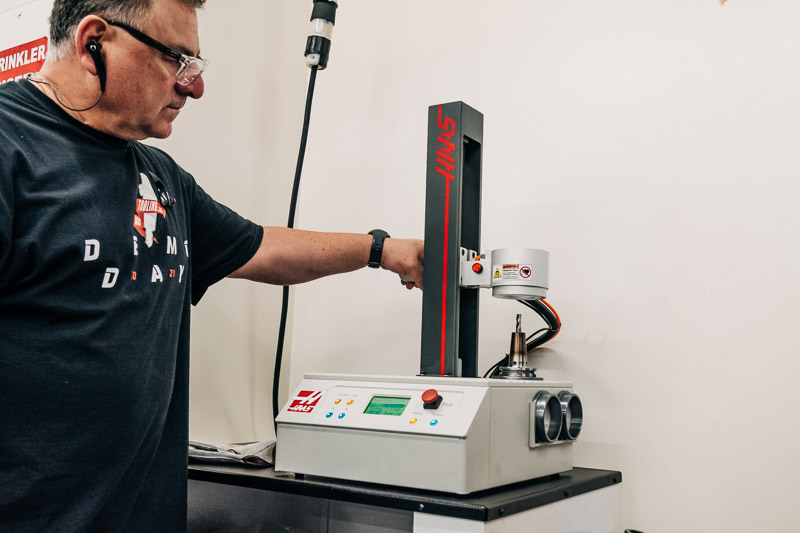

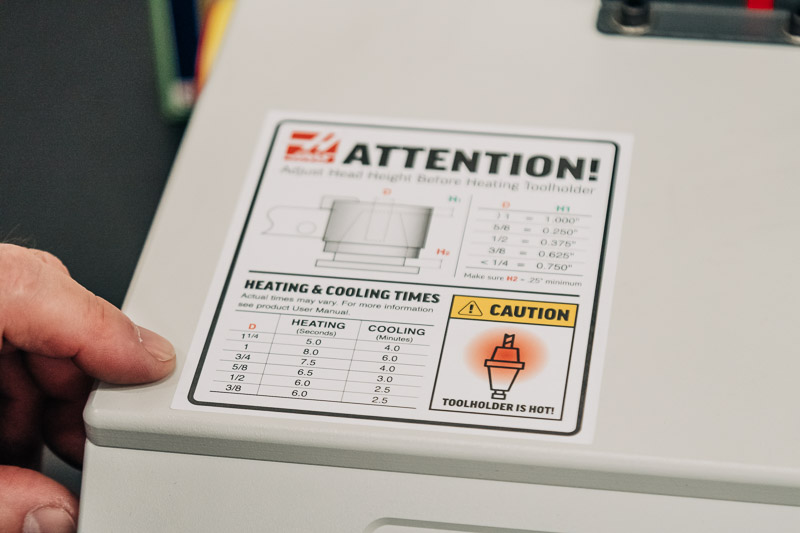

HSF-325, Bench Top Shrink Fit Machine
Part # 09-0020HSF-325 SHRINK FIT MACHINE BENCH TOP
Recommended for carbide cutting tools only.
Download documents
Technical specifications
Type | Shrink Fit |
Taper | CT40, HSK63A, CT50, BT40, SK40 \ DIN 69871, BT50, HSK63F, SK50 \ DIN 69871 |
Country of Origin | Taiwan |
Recommended for carbide cutting tools only.
Please note: the HSF-325 requires a power supply of 220 AC 50/60HZ (3 phase + ground terminal).
Haas Product Warranty - 1 Year
This product includes a 1-year parts warranty and support by your local Haas Factory Outlet. On-site installation, training, service labor, and travel charges will apply. Contact your local Haas Factory Outlet.

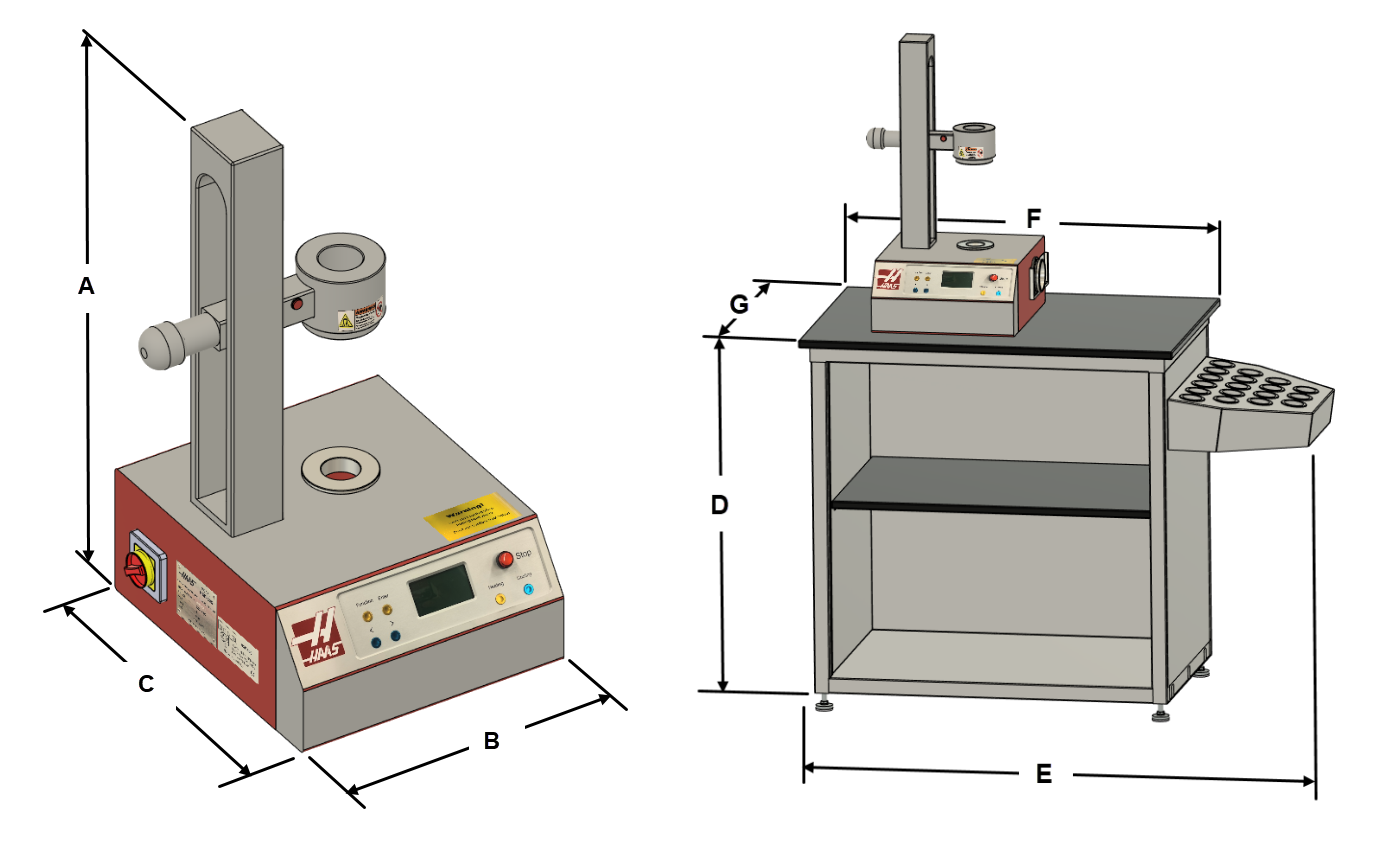

Technical Specs | |
| HSF-325 Height [A] | 26.50 in \ 675.00 mm |
| HSF-325 Length [B] | 15.00 in \ 380.00 mm |
| HSF-325 Width [C] | 16.00 in \ 405.00 mm |
| Table Height [D] | 36.0 in \ 915.0 mm |
| Table Overall Length [E] | 49.5 in \ 1257.0 mm |
| Table Top Length [F] | 36.0 in \ 915.0 mm |
| Table Top Width [G] | 24.0 in \ 610.0 mm |

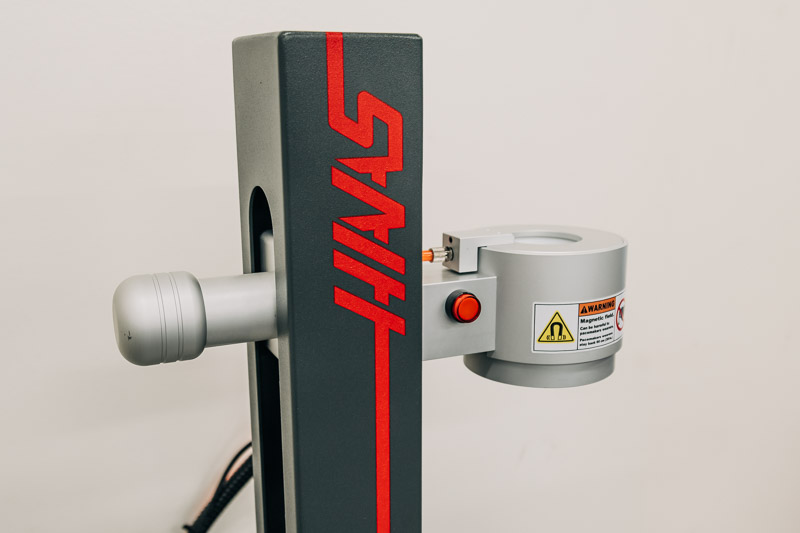

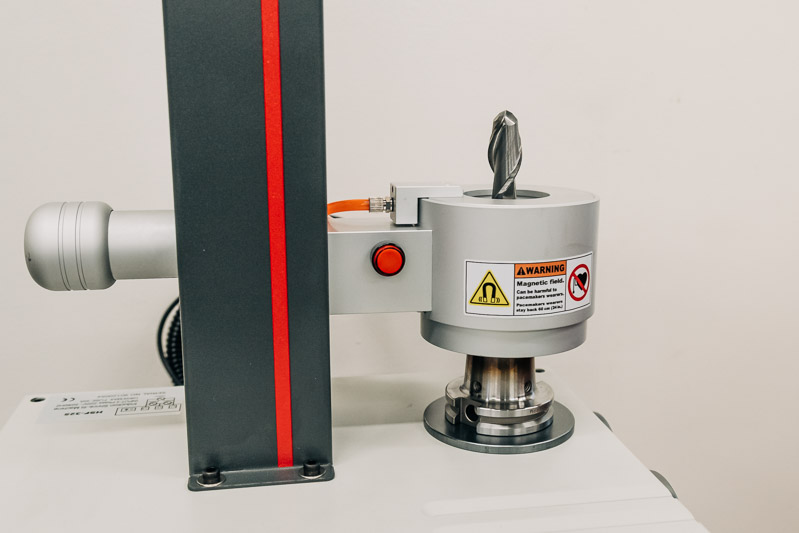

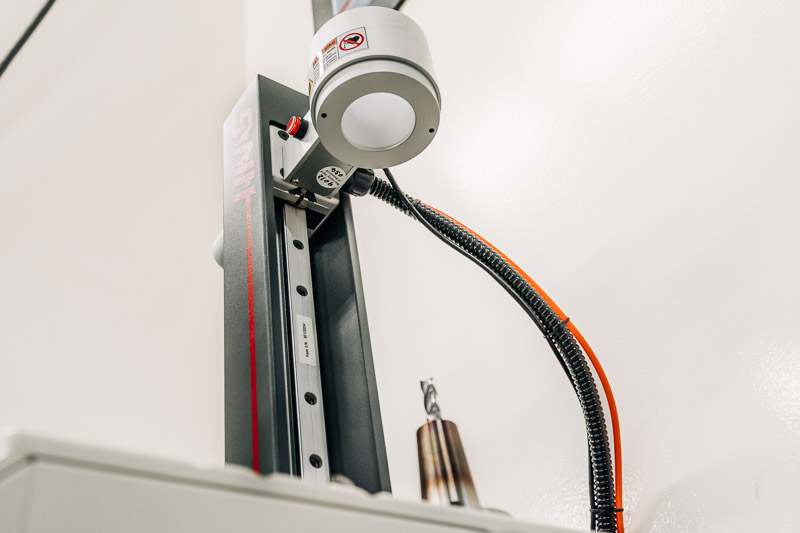

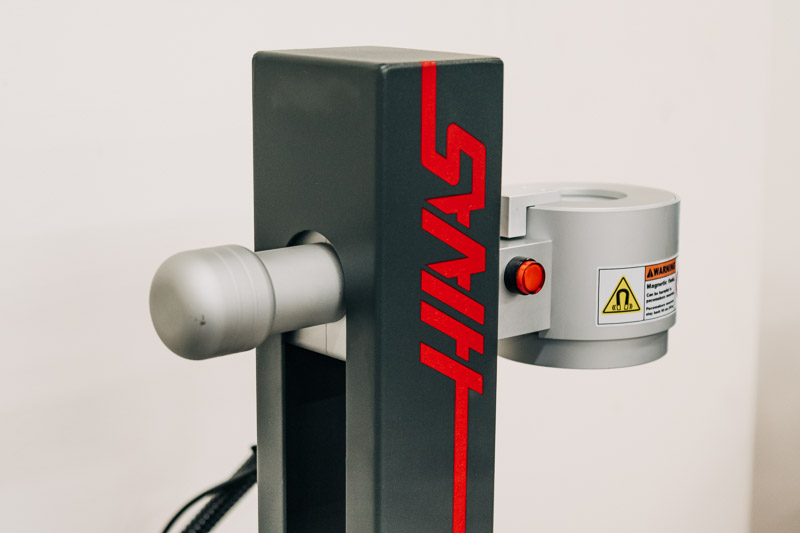

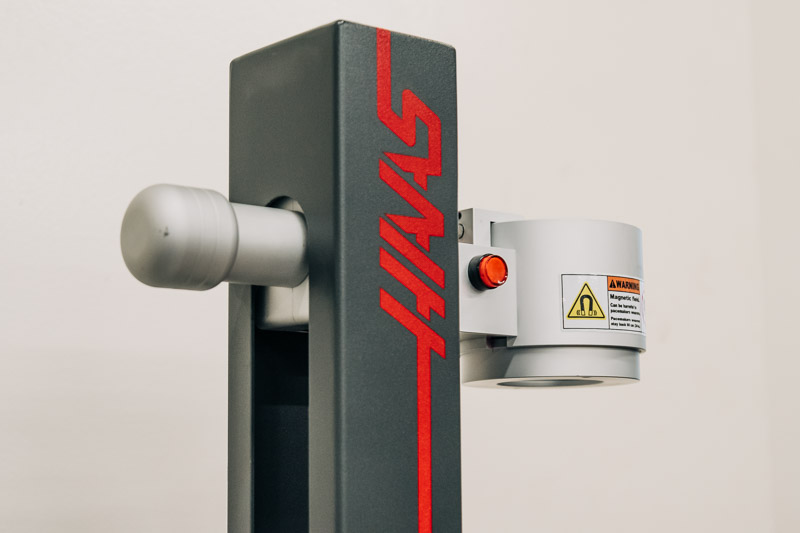

| Induction Head ID | 1.375 in \ 35.00 mm |
| Heating Range Min | 0.393 in \ 10.00 mm |
| Heating Range Max | 1.000 in \ 25.00 mm |
| Heating Process | Induction |

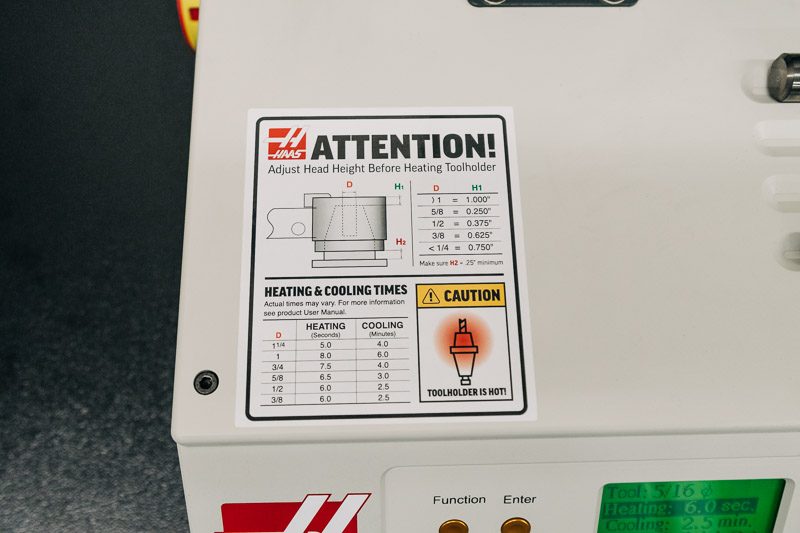

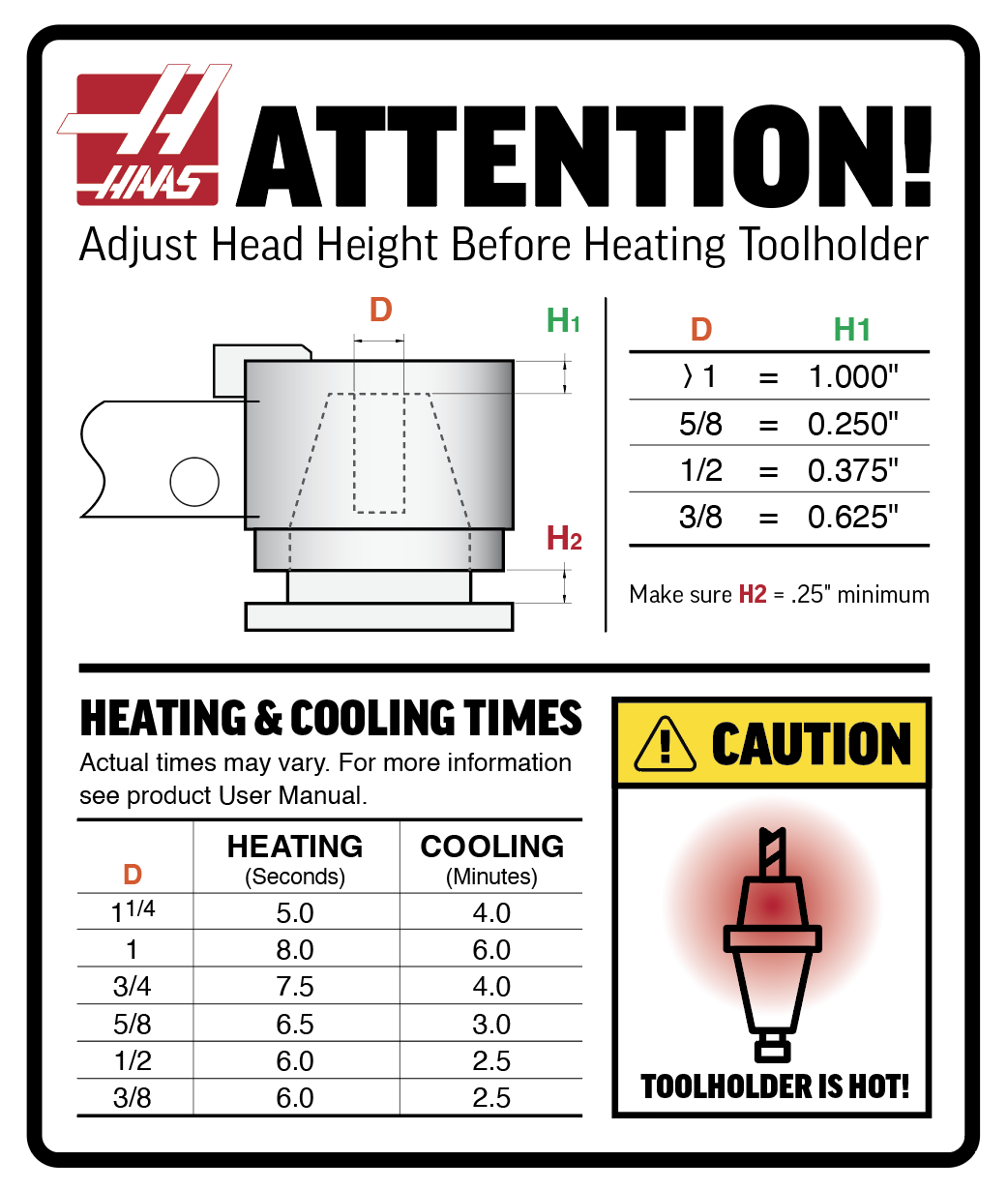

| Shrinking Period | 3-5 Seconds |

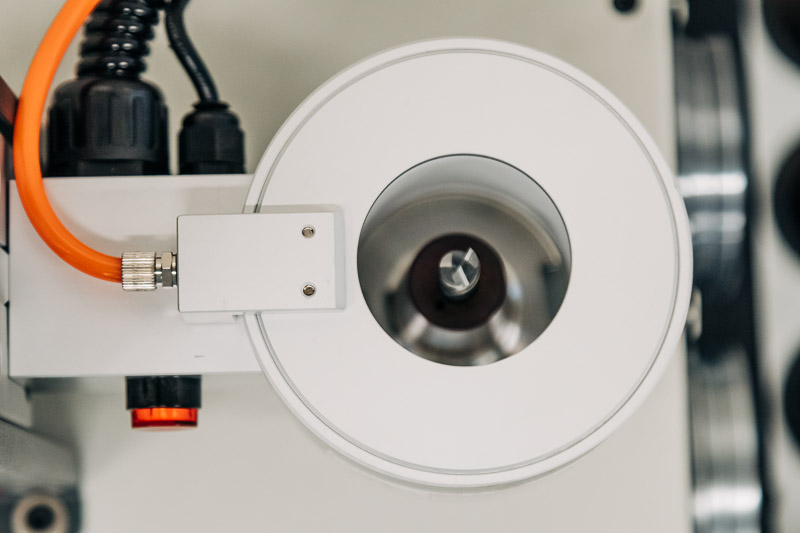

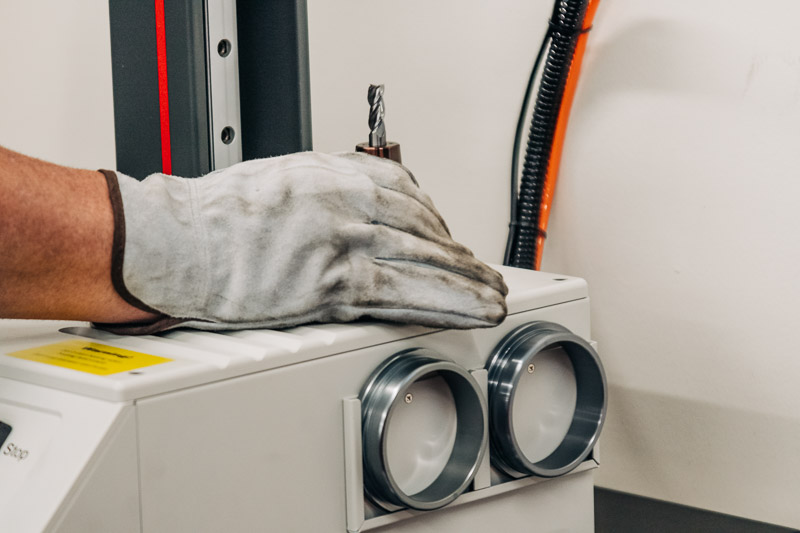

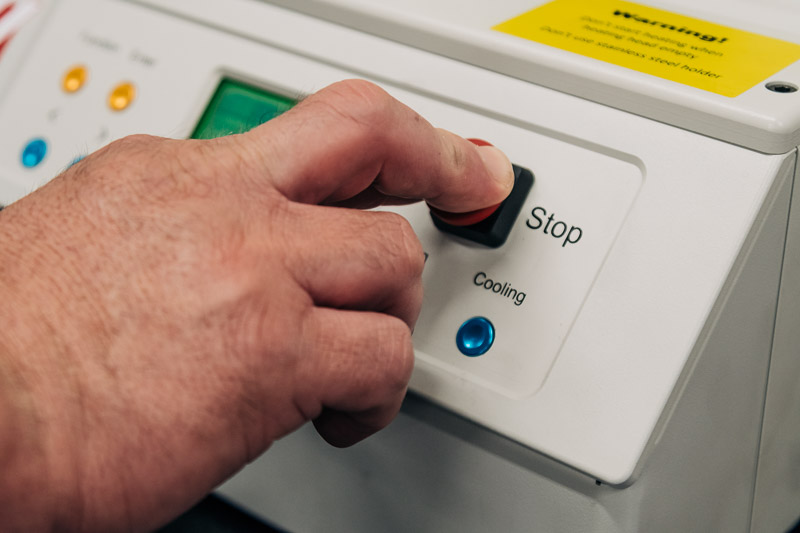

| Cooling Process | Shop air attached to head |
| Cooling Air Pressure Range | 2-5kgf/cm³ |
| Cooling Period | up to 10 minutes |

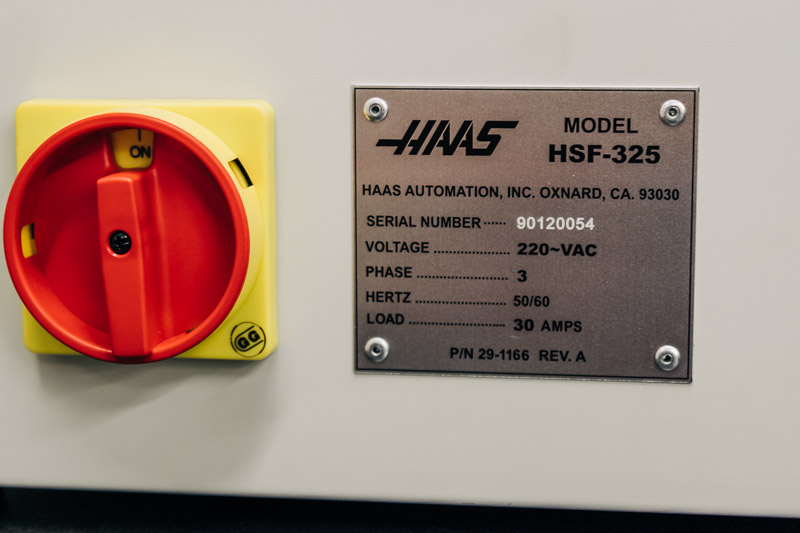

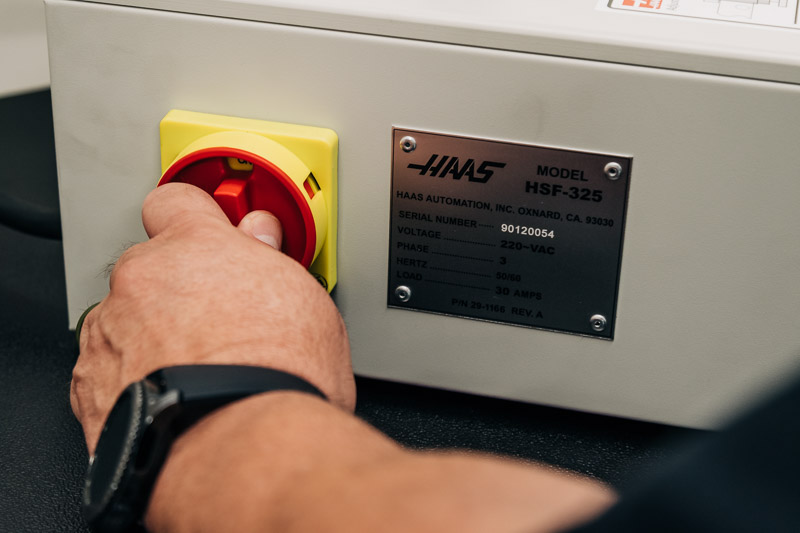

| Power Supply | 220 AC 50/60HZ, 3 phase + ground terminal |
| Max Power Consumption | 10,000 Watts |
| Rated Amps | 30A |

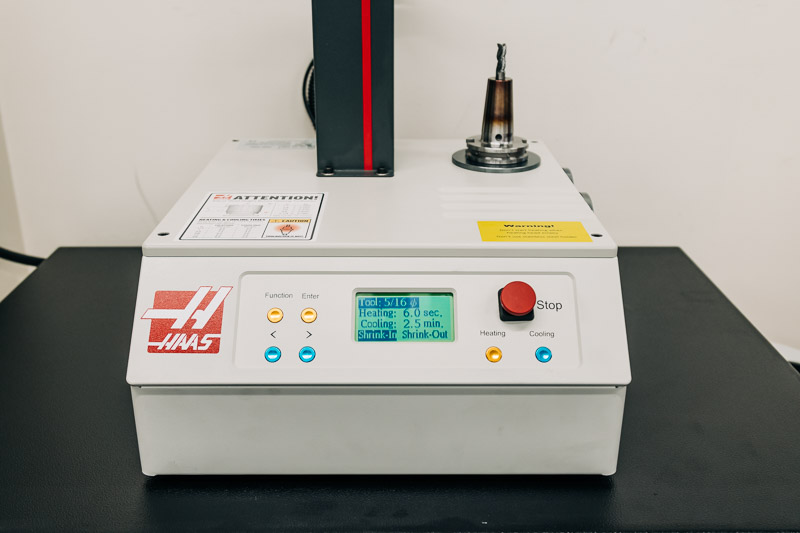

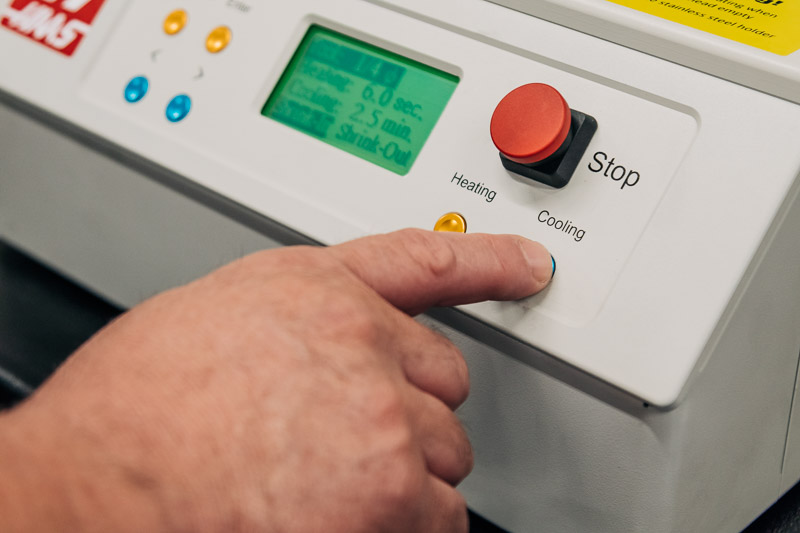

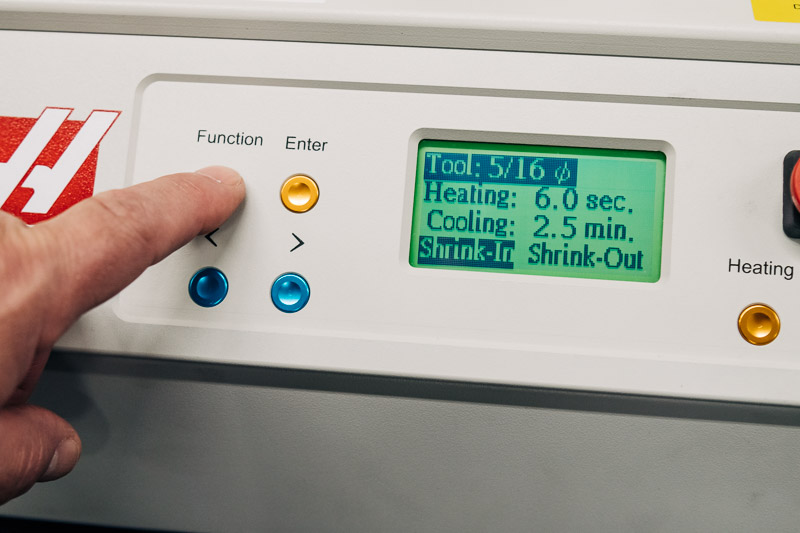

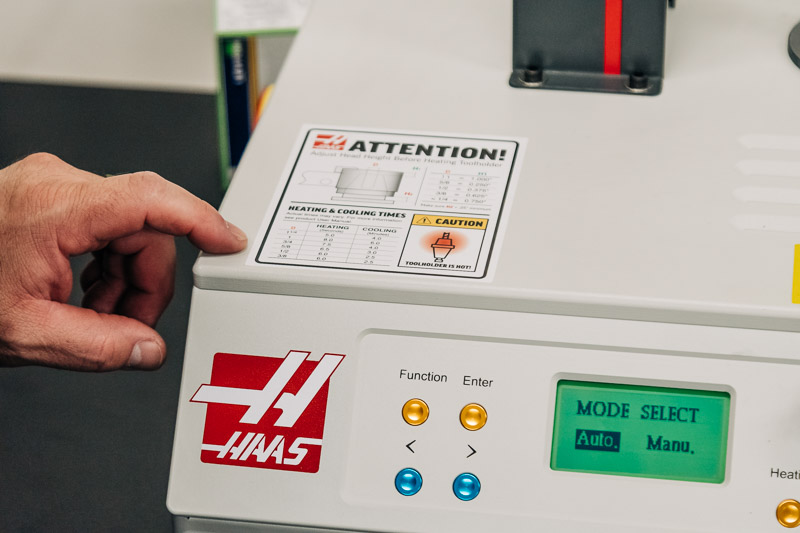

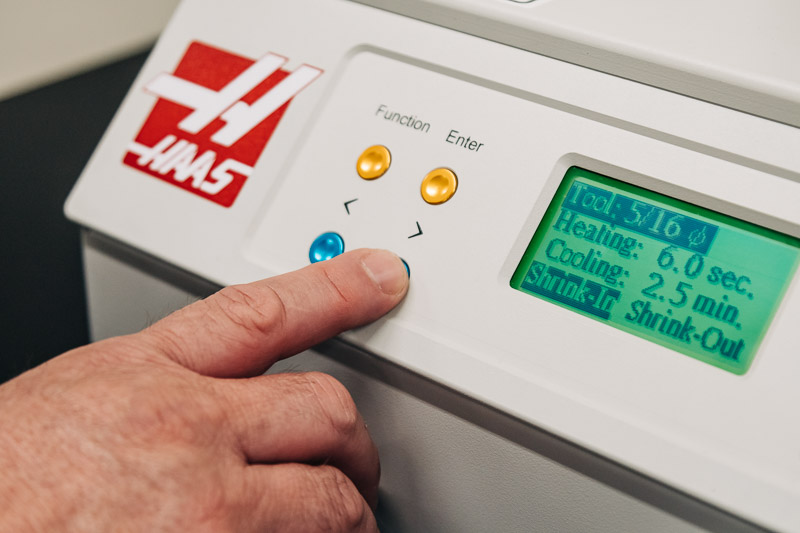

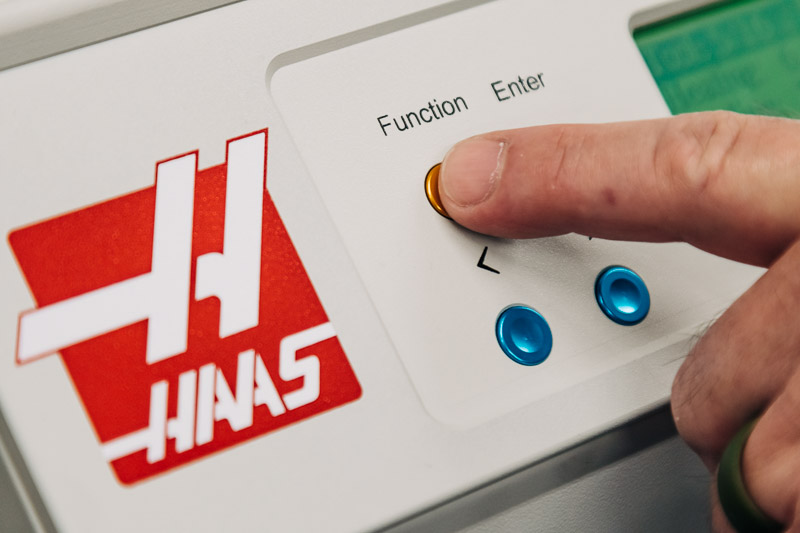

| Display Type | LCD |
| Holder Support | HSK50/HSK63/HSK80/BT40/BT50(OPTION) |
| Included Accessories | a. 2 tool adapters (holder supports) b. 8 pieces tool pick springs: 4mm×2, 6mm×2, 8mm×2, 10mm×2 c. Power input cable, 2 meters d. User’s manual |
| Optional Accessories | a. Table (09-0011) b. ISO 40 Tool Tray (09-0021) c. ISO 30 Tool Tray (09-0022) d. HSK63A Tool Tray (09-0023) |
| Shipping Weight | 58lb \ 26kg |
| Shipping Dimensions Inches (L x W x H) | 20" x 23" x 15" |
| Shipping Dimensions mm (L x W x H) | 508 x 584 x 381mm |
| Country Of Origin | Taiwan |
FREE SELECT TOOLHOLDERS & PULL STUDS!
* Discount will be shown in your cart, once all items are added. Excludes: Milling Chucks, Drill Chucks, and Hydraulic Milling Chucks
BUY A HAAS SHRINK FIT MACHINE
GET 10 FREE SHRINK FIT HOLDERS + PULL STUDS!
SAVE MORE WHEN YOU BUY BOTH!
UP TO $1000 SAVINGS + 20 FREE SELECT TOOLHOLDERS
TECHNICAL DOCUMENTS
Features

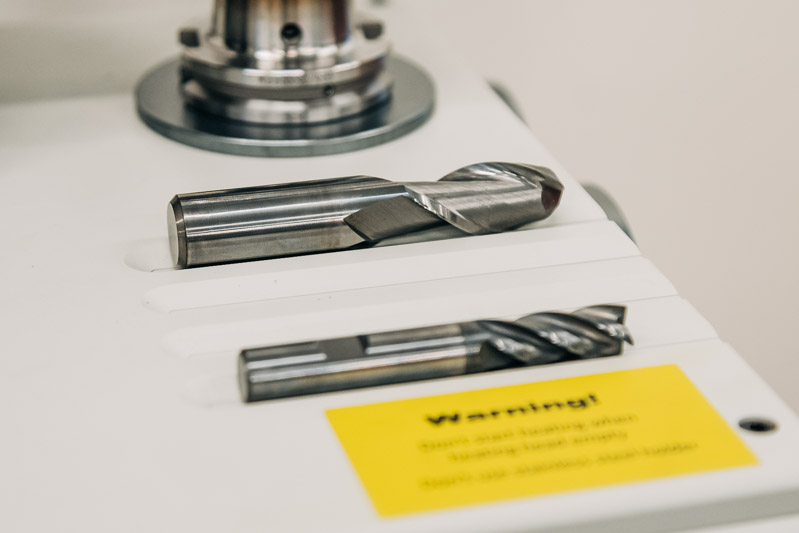

- Clamping range for tool diameters 10 mm to 32 mm

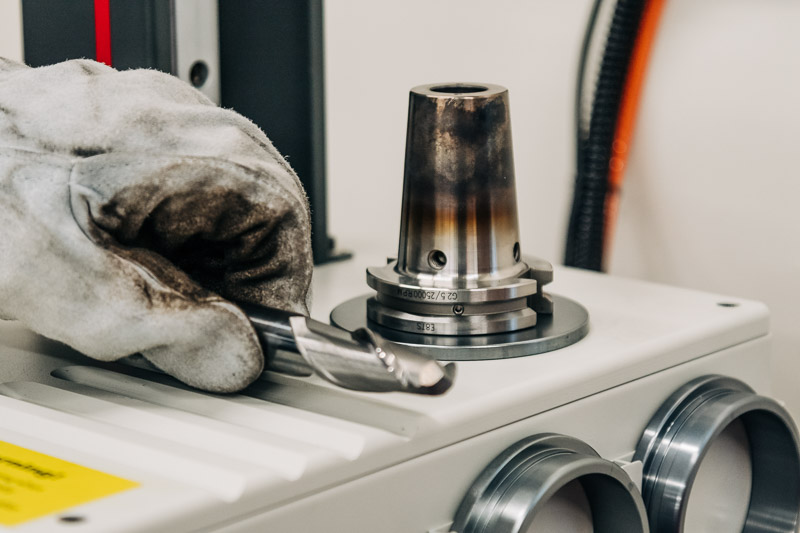

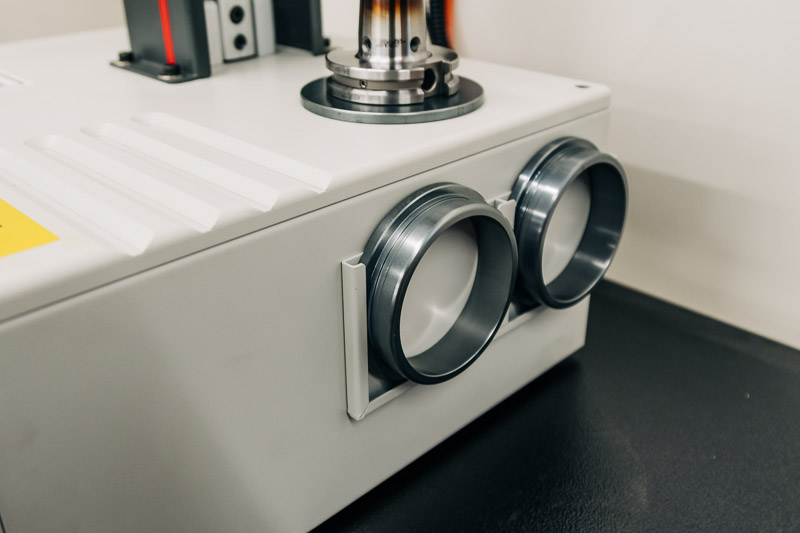

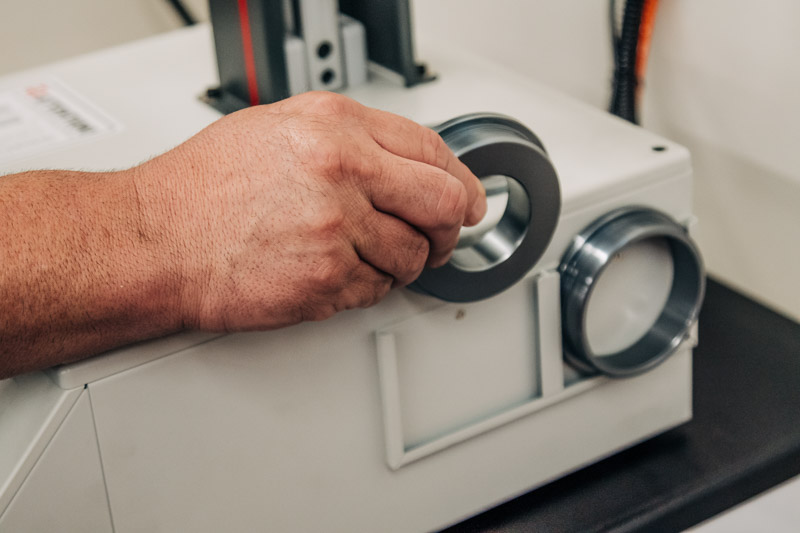

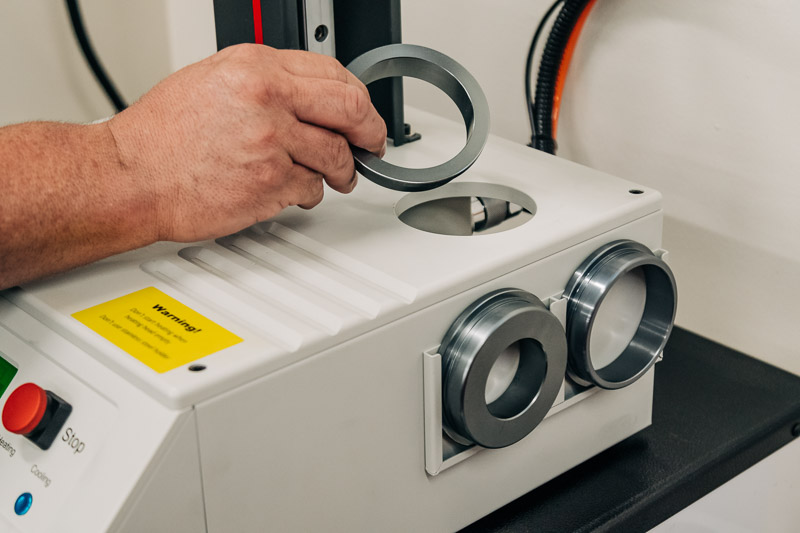

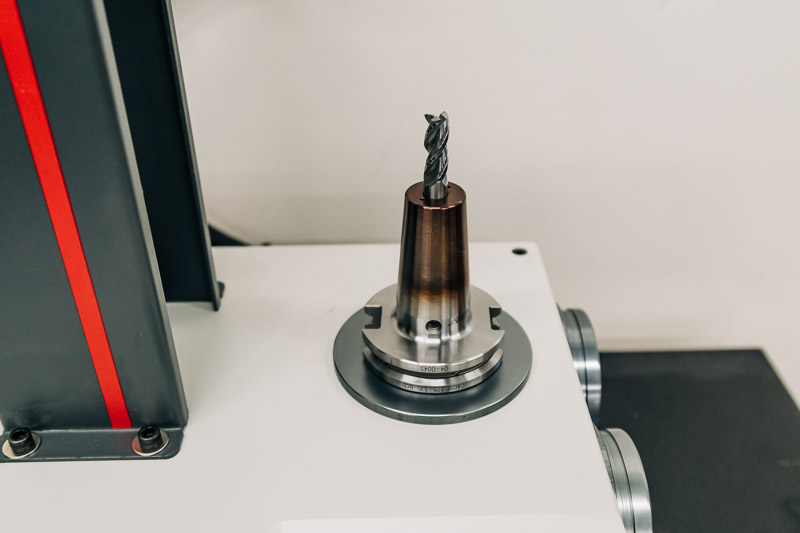

- Interchangeable tool sleeves are easy to change when heating different taper toolholders

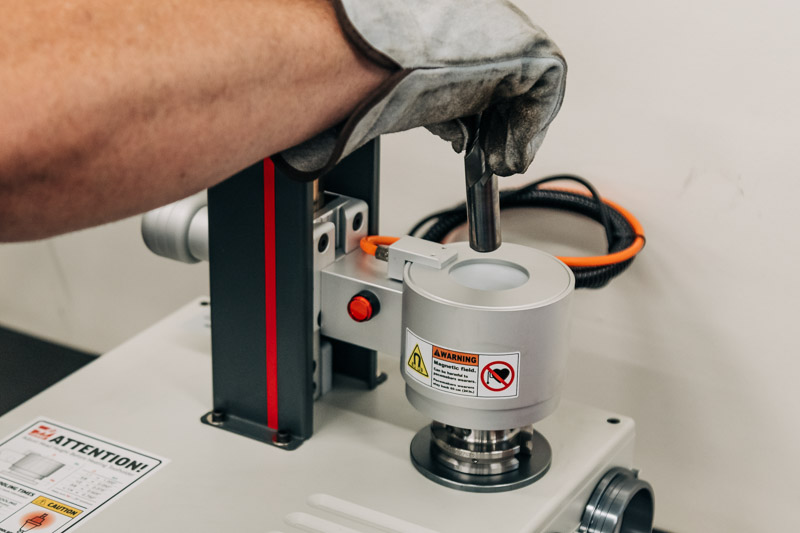

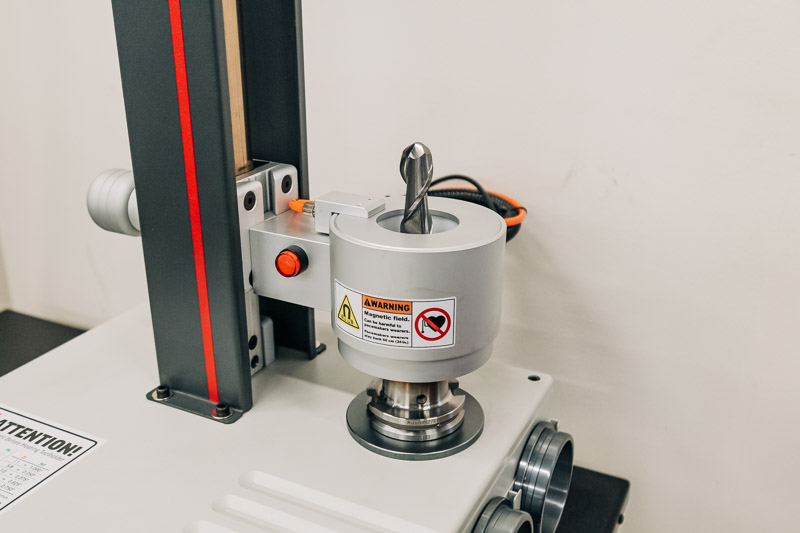

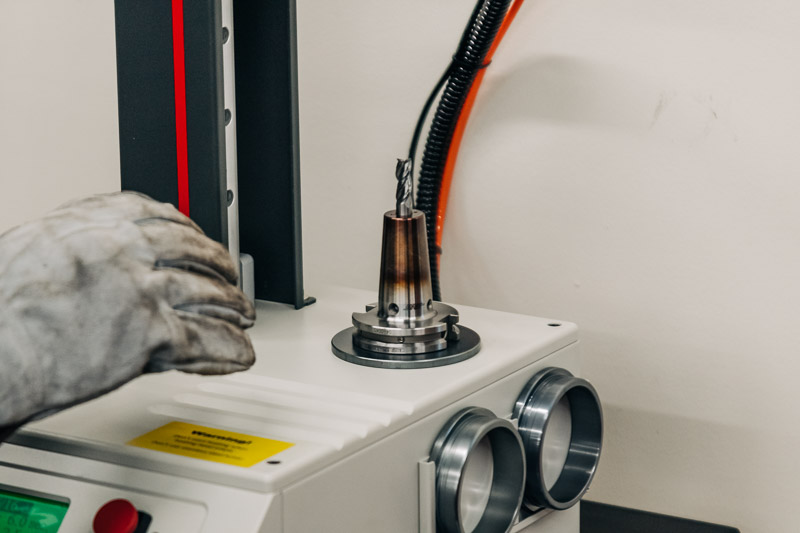

- Fast heating – the eddy current induces heat from the high-frequency magnetic field, for short cycle times and easy operation
- Higher efficiency – the process is timed to apply enough heat to the toolholder to remove cutting tools, without overheating
- Cooling unit uses shop air for ease of connectivity and use
- Haas shrink-fit holders are available in a wide range of diameters
- 12-month parts warranty from ship date, supported by your local Haas Factory Outlet; on-site installation, training, service labor, and travel charges will apply
Benefits of Shrink Fit Tooling:
- Very low runout (< 0.0001" TIR)
- Very accurate
- Very high grip force
- Small nose diameters for better part access
- Quick tool changeovers
- Low maintenance
Applications:
- High-volume production
- High-accuracy machining
- High spindle speeds and feedrates
- Long-reach applications
- Better part access for 5-axis machining
Due to continuous product improvement, specifications may be subject to change without notice, and actual product appearance may differ.
