10-18mm High Resolution Dial Bore Gage, 0.001mm Graduation, 100mm Reach
Part # 09-0408DIAL BORE GAGE HP, 10-18mm/0.001mm
Description

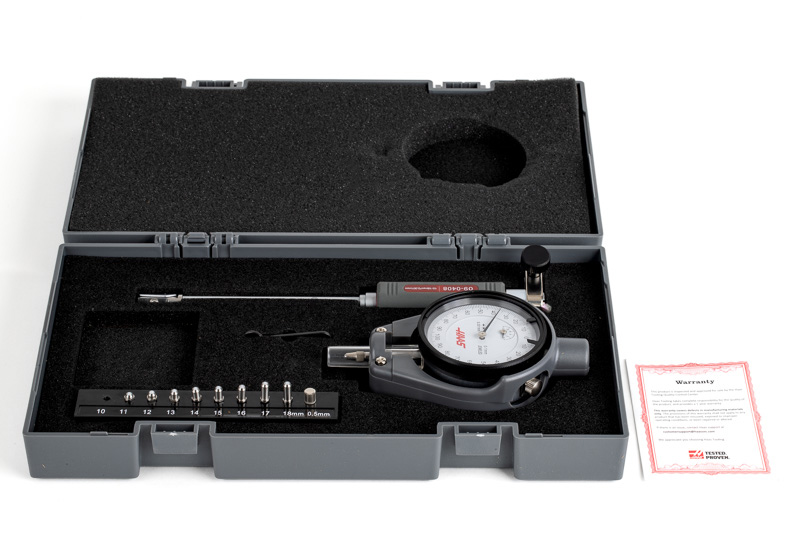

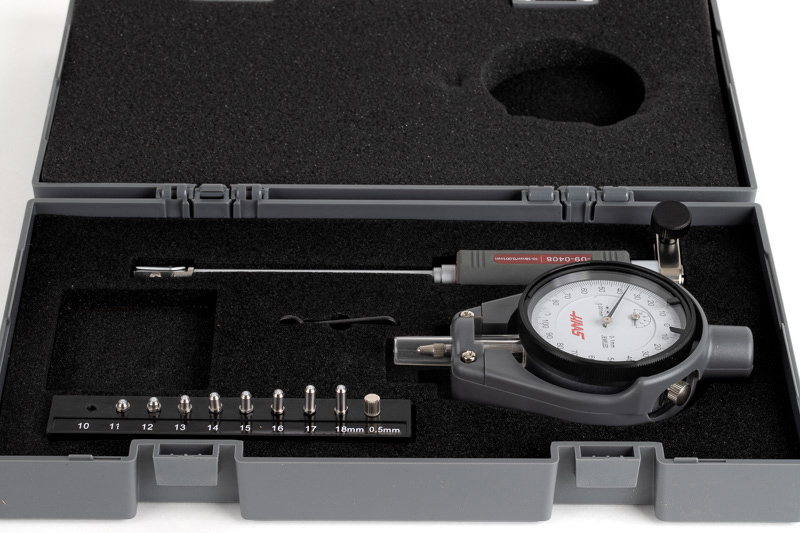

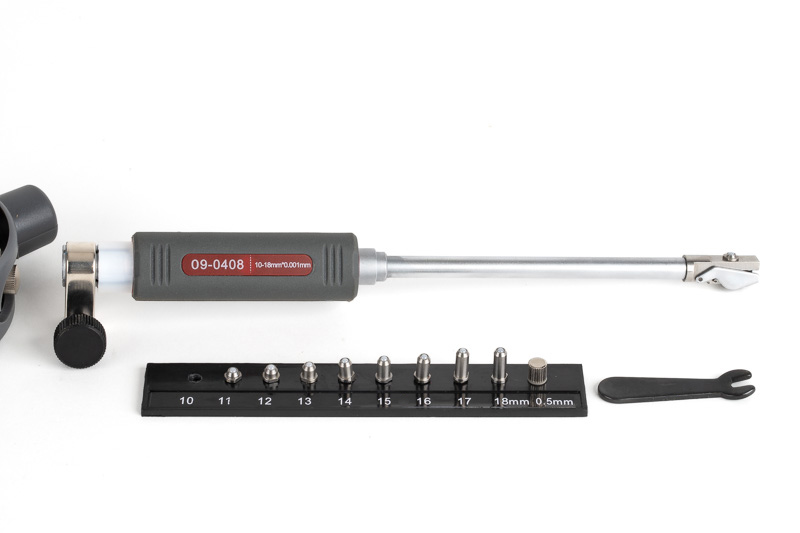

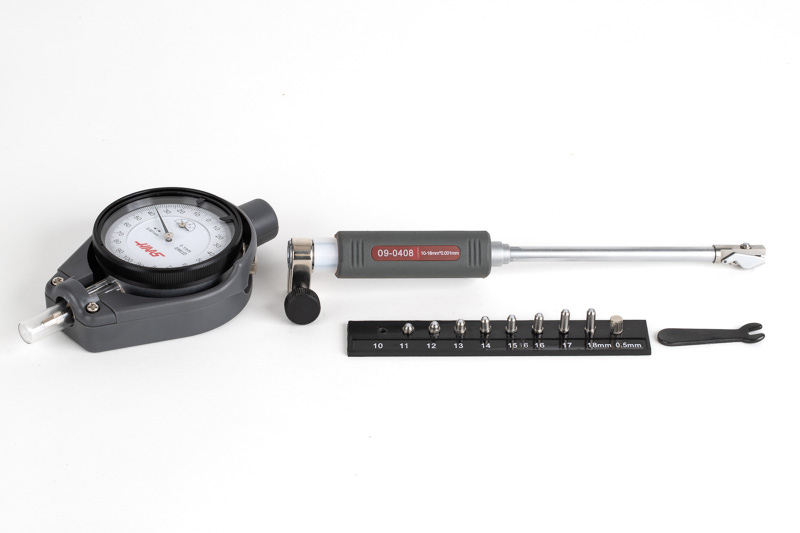

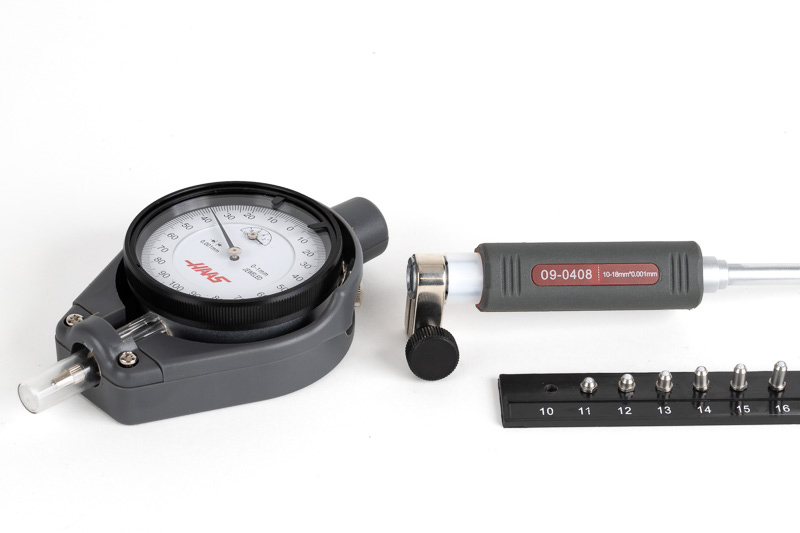

This Haas high precision dial bore gauge has a measuring range of 10.0 - 18.0 mm. It features a 0.001 mm dial graduation, a 100.0 mm depth reach, and a set of 9 ceramic anvils plus spacers to cover the entire measuring range. The continuous dial numbering is ideal for taking direct bore measurements.Download documents
Technical specifications
System of Measurement | Metric - ISO |
Type | High Resolution Dial |
Dial Reading | 0-100 |
Dial Diameter | 58.0 mm |
Dial Type | Continuous |
Graduation | 0.001 mm |
Accuracy | ± 0.005 mm |
Range | 10.0 - 18.0 mm |
Range Per Revolution | 0.2 mm |
Depth Range | 100.0 mm |
Number of Anvils | 9 |
Anvil Sizes | 10mm |
Anvil Material | Ceramic |
Bearing Type | Jeweled |
Fulcrum Material | Steel 08F (Carburized） |
Hysteresis | 0.002 mm |
Repeatability | 0.002 mm |
Conformance Standard | CNAS |
Weight | 1.7 lbs \ 0.7 kg |
Country of Origin | China |
Calibration Certificate (Y/N) | N |
