Granite Comparator Stand, 150x100x40mm, Fine Adjust Head, Fits: 8mm, 3/8"
Part # 09-0547PRECISION GRANITE STAND, 150x100x40mm
Description

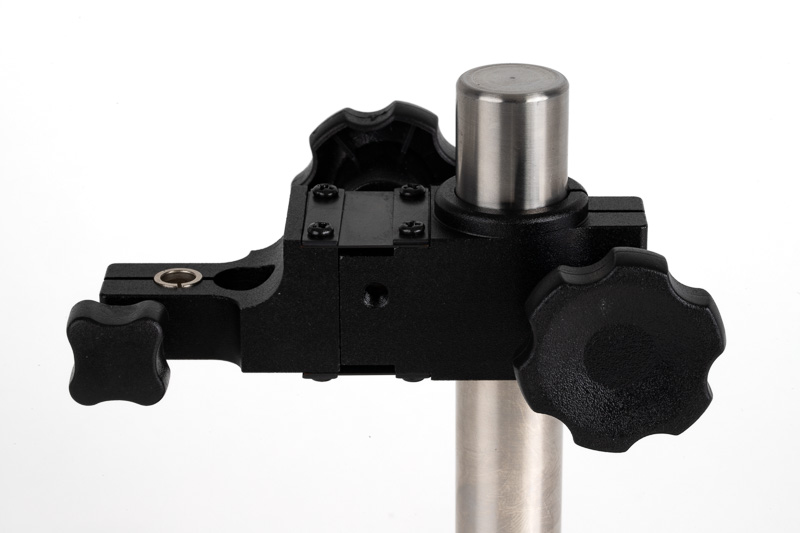

Comparator stands combine the benefits of a surface plate and an indicator holding stand into one tool. The granite base provides a flat and dimensionally stable platform for inspection, and the sturdy column ensures a rigid setup for reliable and accurate measurements. The base has dimensions of 150x100x40mm. This model has a the fine adjust mechanism on the measuring head. Clamp accepts 8mm and 3/8" stems.Technical specifications
Type | Comparator Stand |
System of Measurement | Universal - ANSI, ISO |
Mount Type | Stem |
Clamp Hole Diameter | 8.0 mm |
Main Arm Length | 180.0 mm |
Main Arm Diameter | 25.0 mm |
Base Type | Granite |
Base Length | 150.0 mm |
Base Width | 100.0 mm |
Base Height | 40.0 mm |
Weight | 6.4 lbs \ 2.9 kg |
Country of Origin | China |
