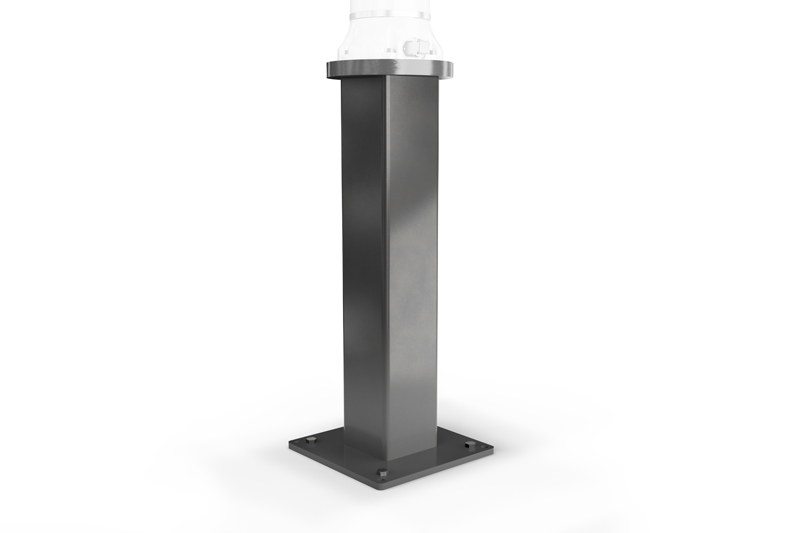

Cobot, 30" (760mm) Fixed Height Stand
Part # 09-0642COBOT BASE WELDED 30
Description
This cobot fixed height stand provides a mounting solution for Haas collaborative robots. The fixed height provides a more rigid design for machines requiring the cobot to be 30 inches above the floor.This stand is compatible with only HC5, HC10, and HC15 robots.Technical specifications
System of Measurement | Universal - ANSI, ISO |
Type | Pedestal |
Robot Series | HC5 (5kg x 800mm), HC10 (10kg x 1000mm), HC15 (15kg x 1300mm) |
Material | Steel |
[a] Dimension | 10.551 in \ 268.0 mm |
[b] Dimension | 8.976 in \ 228.0 mm |
[c] Dimension | 9.449 in \ 240.0 mm |
[d] Dimension | 8.465 in \ 215.0 mm |
[OAL] Overall Length | 11.8 in \ 300.0 mm |
[OAW] Overall Width | 11.8 in \ 300.0 mm |
[OAH] Overall Height | 30.0 in \ 762.0 mm |
Weight | 87.3 lbs \ 39.6 kg |
Country of Origin | China |
Technical Images

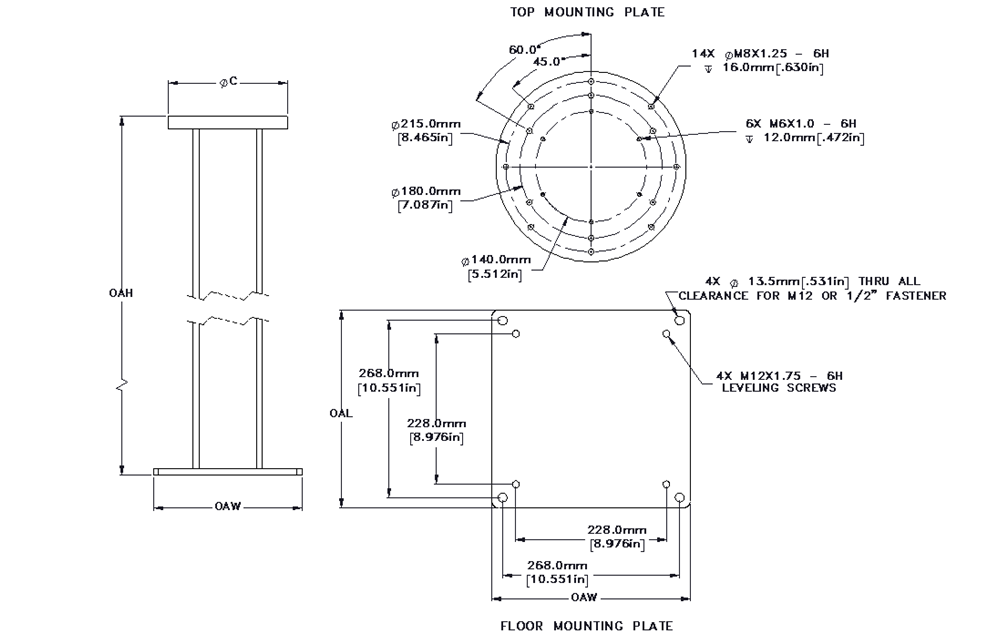

Enlarge Line Drawing & Specs
