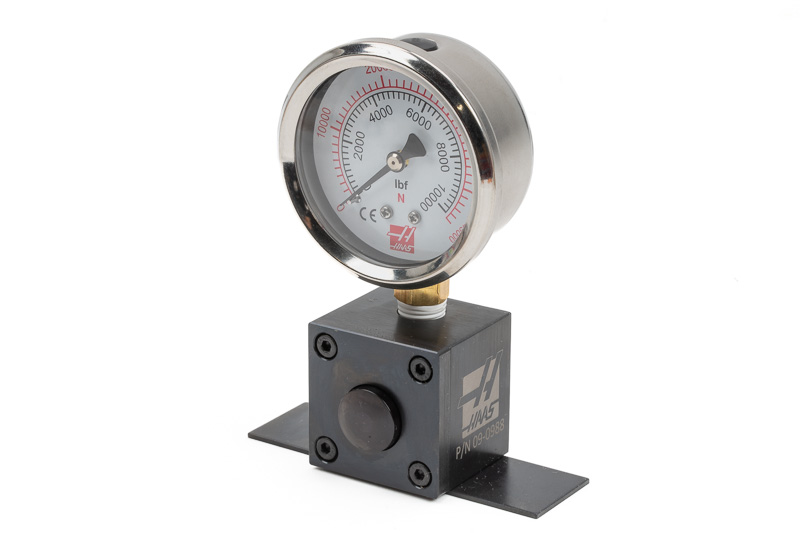

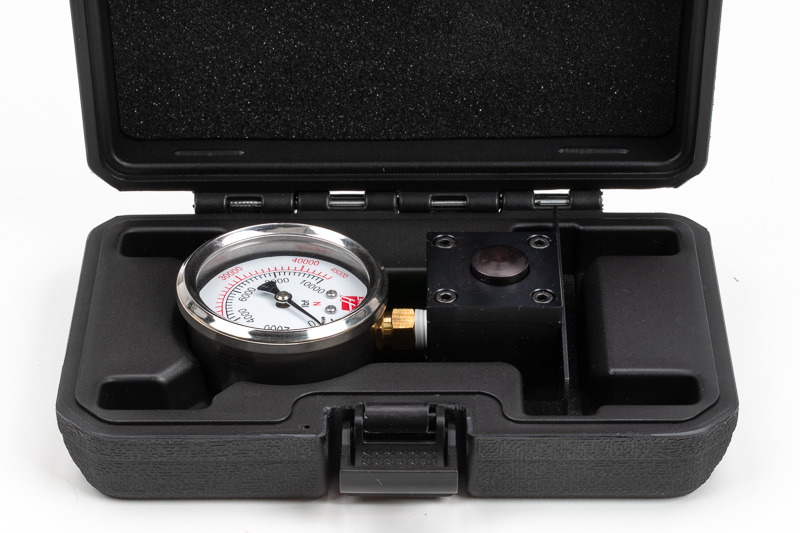

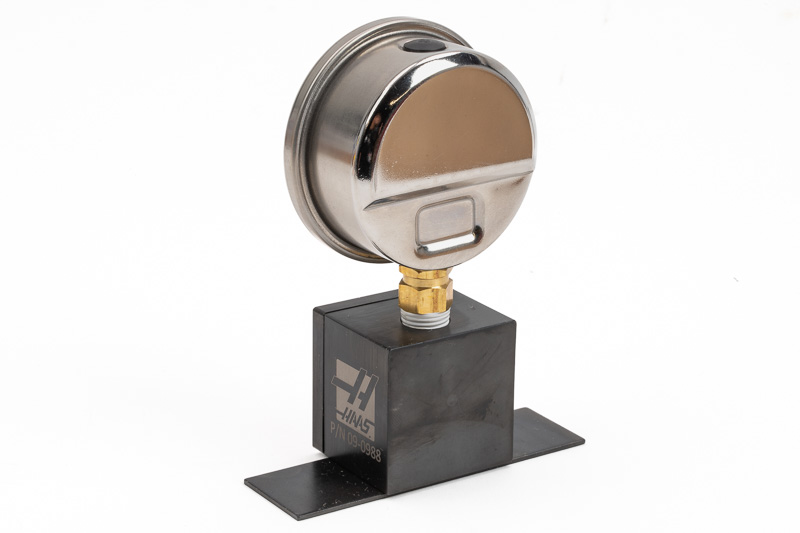

Clamp Force Gauge, Max Load 10000lbf/44.5kN
Part # 09-0988CLAMP FORCE GAUGE 10K
Description
Clamp force gauge for verifying workholding pressure in CNC machining setups. Measures clamping force up to 10,000 lbf \ 44.5 kN to help ensure proper part retention and prevent distortion caused by excessive clamping. Designed for use with milling fixtures and common workholding systems to improve setup consistency and machining reliability.Technical specifications
System of Measurement | Universal - ANSI, ISO |
Type | Force Gauge |
[Ød1] Diameter | 0.744 in\ 18.94 mm |
[BH] Body Height | 1.744 in\ 44.30 mm |
[H] Height | 0.854 in \ 21.70 mm |
[W] Width | 0.167 in \ 4.24 mm |
[OAL] Overall Length | 3.937 in \ 100 mm |
[OAH] Overall Height | 5.087 in \ 129.2 mm |
[OAW] Overall Width | 1.72 in \ 43.70 mm |
Load Capacity | 10000 lbf \ 44.5KN |
Weight | 1.71 lbs \ 0.78 kg |
Country of Origin | China |
Technical Images
Enlarge Line Drawing & Specs
