10 - 45 lbs-ft (13.6 - 61 N-m) Interchangeable Head ER Torque Wrench, 10mm Hub Connection
Part # 09-1150TORQUE WRENCH 10-45 FTLB 10mm INSERT
Description

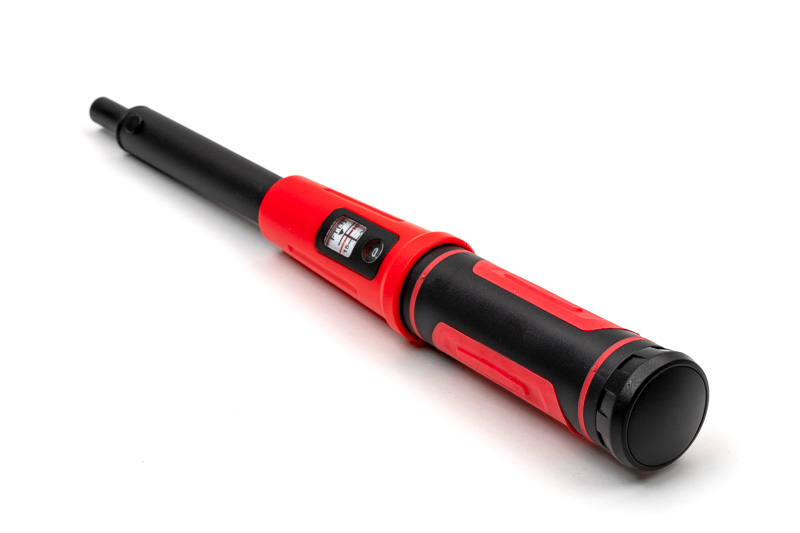

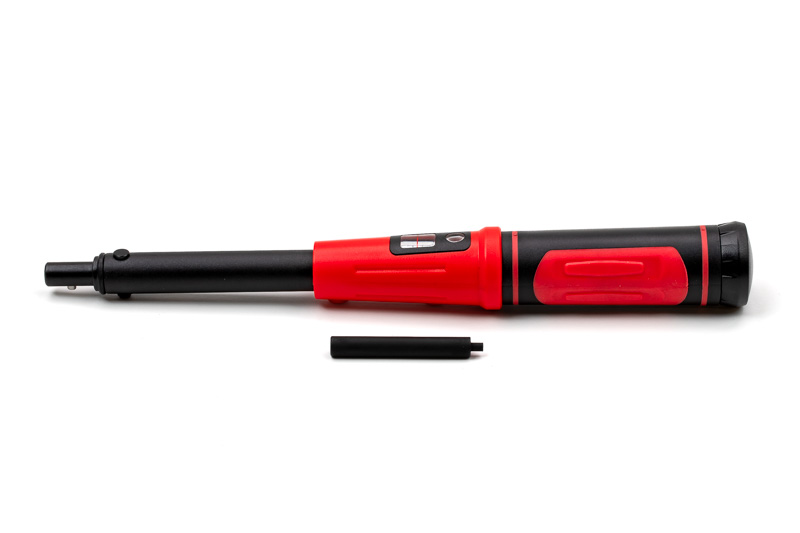

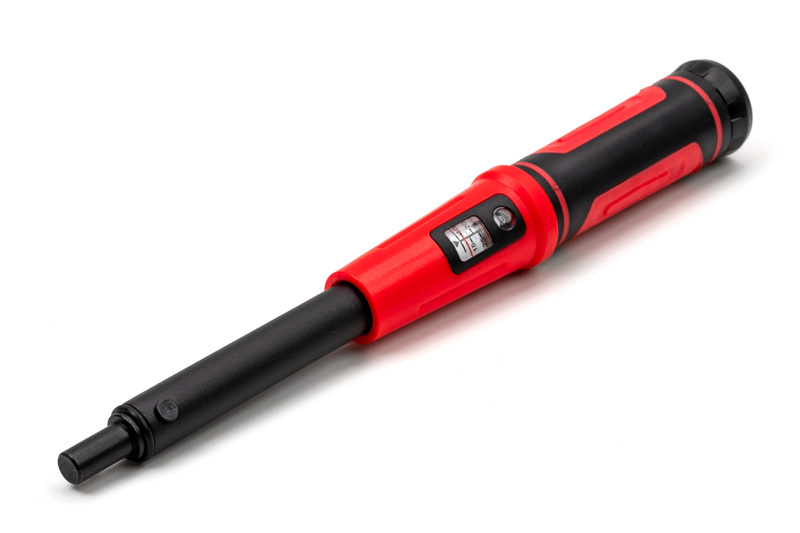

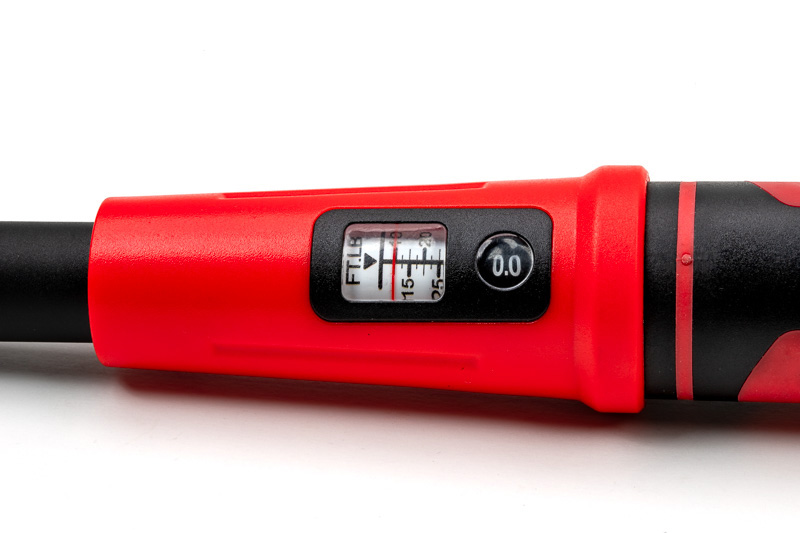

Tighten your ER collets to the correct torque every time with this interchangeable head, precision torque wrench. Featuring a 10mm hub connection, this wrench accommodates ER11, ER16, and ER25 torque wrench heads and offers a torque range of 10 - 45 lbs-ft (13.6 - 61 N-m) in 0.1 lbs-ft (0.13 N-m) increments for precise adjustment.Technical specifications
System of Measurement | Universal - ANSI, ISO |
Type | Torque Wrench |
Collet Series | ER-11, ER-16, ER-25 |
Torque Specification | 10.0 - 45.0 lbs-ft, 13.6 - 61.0 N-m |
[ØDCON] Connection Diameter | 0.394 in \ 10.0 mm |
[OAL] Overall Length | 11.197 in \ 284.4 mm |
[OAW] Overall Width | 1.374 in \ 34.9 mm |
Weight | 0.8 lbs \ 0.4 kg |
Country of Origin | China |
Technical Images

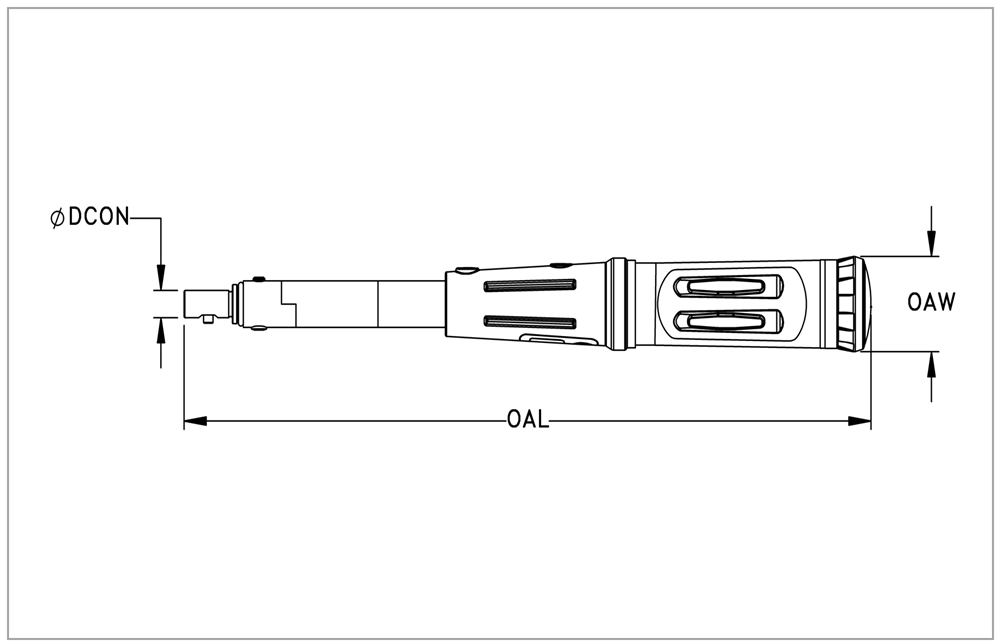

Enlarge Line Drawing & Specs
