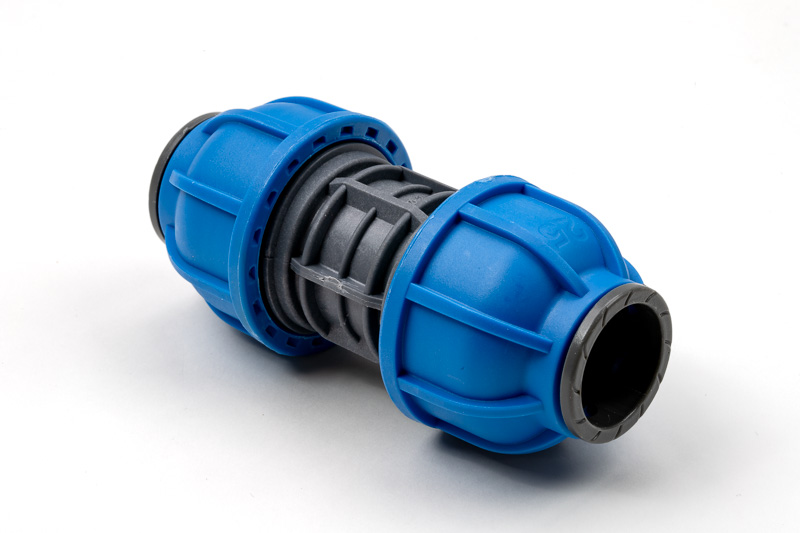

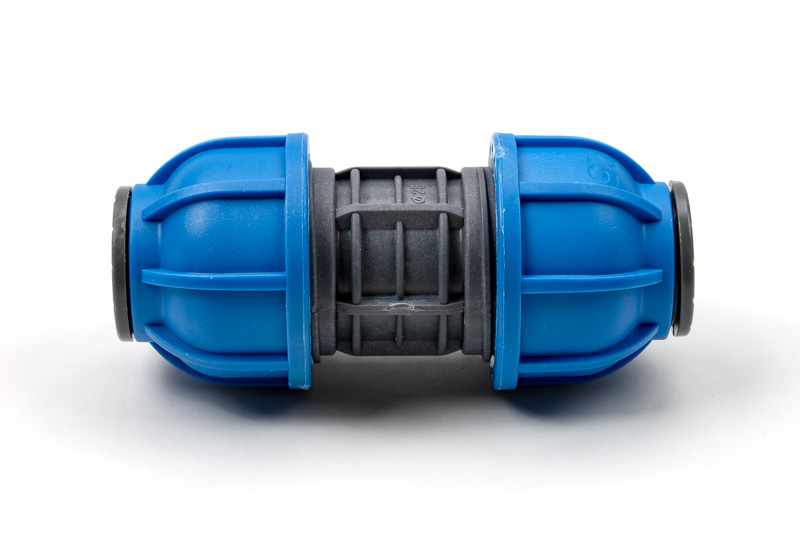

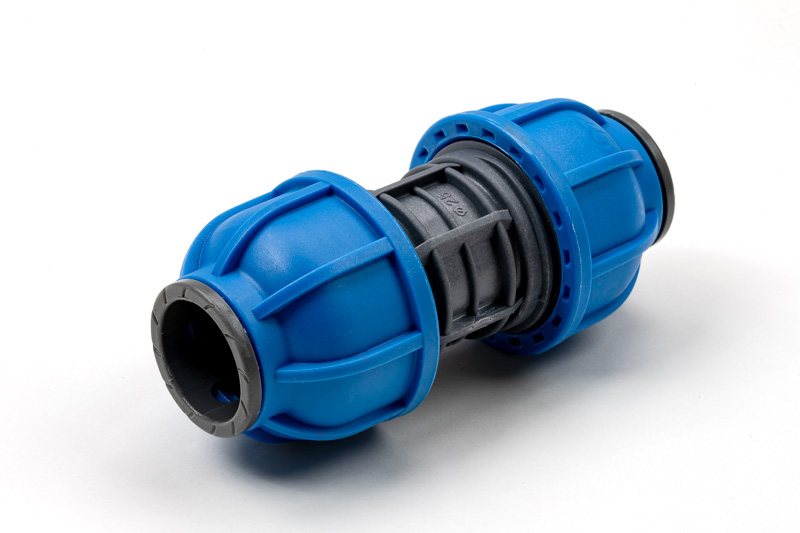

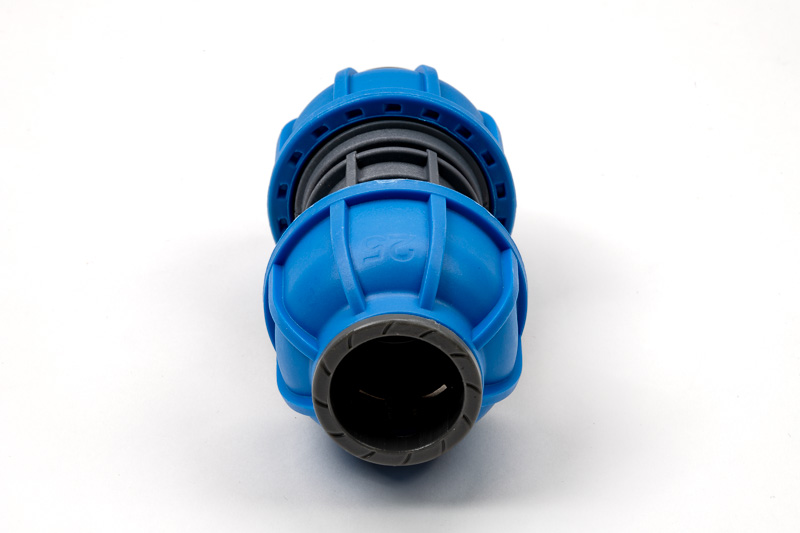

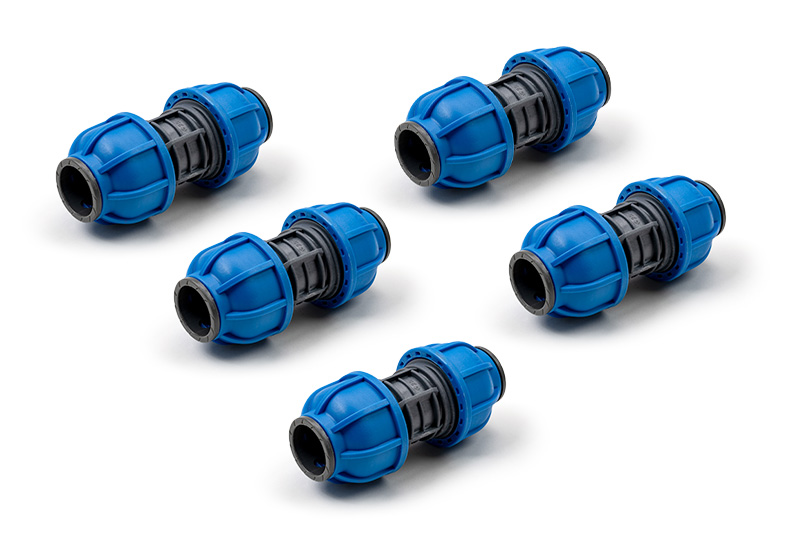

25mm (0.98") Ø Airline In-Line Union Compression Fitting - Pack of 5

Part # 09-122425mm UNION 5PK
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
Expand your compressed air piping system with this 5-pack of 25mm in-line unions, designed for use with the HAC15-VS Complete Airline Kit (09-1147). These high-quality compression unions make it easy to extend or modify your existing airline without threading, gluing, or soldering. Built for fast installation and a secure, leak-free seal, they're ideal for workshops, CNC, and industrial compressed air systems. Manufactured from durable, corrosion-resistant materials for long-lasting performance
Technical specifications

System of Measurement

Universal - ANSI, ISO

Type

Airline

Machine Models

HAC15-VS

Material

Nylon

[ØDCON] Connection Diameter

0.984 in \ 25.0 mm

Max Working Pressure

145.0 psi \ 10.0 bar

Number of Pieces

5

[OAL] Overall Length

4.27 in \ 108.5 mm

[OAH] Overall Height

2.08 in \ 52.8 mm

Weight

1.4 lbs \ 0.6 kg

Country of Origin

China
Technical Images

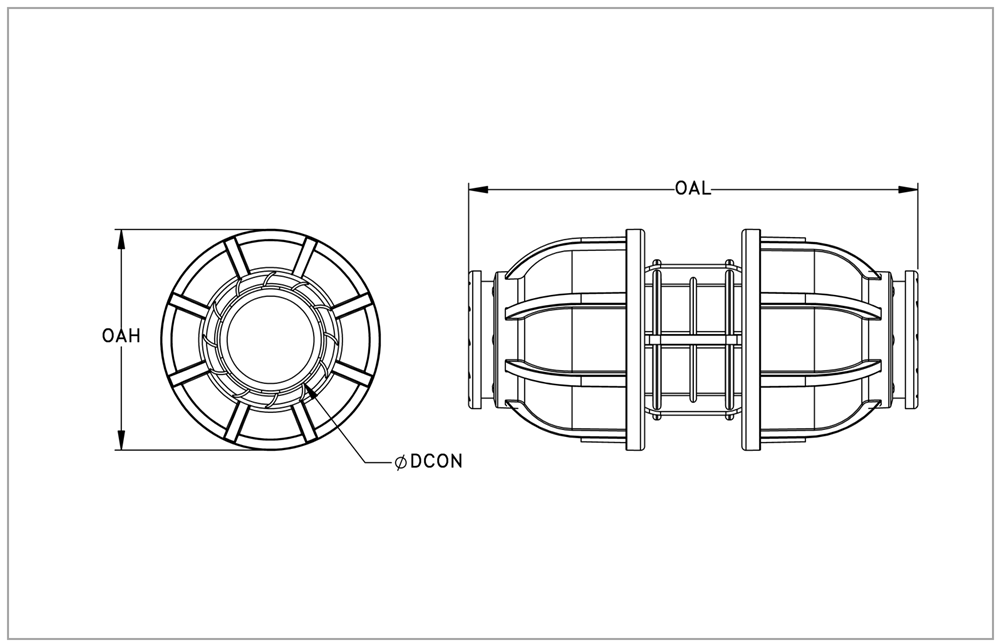

Enlarge Line Drawing & Specs
