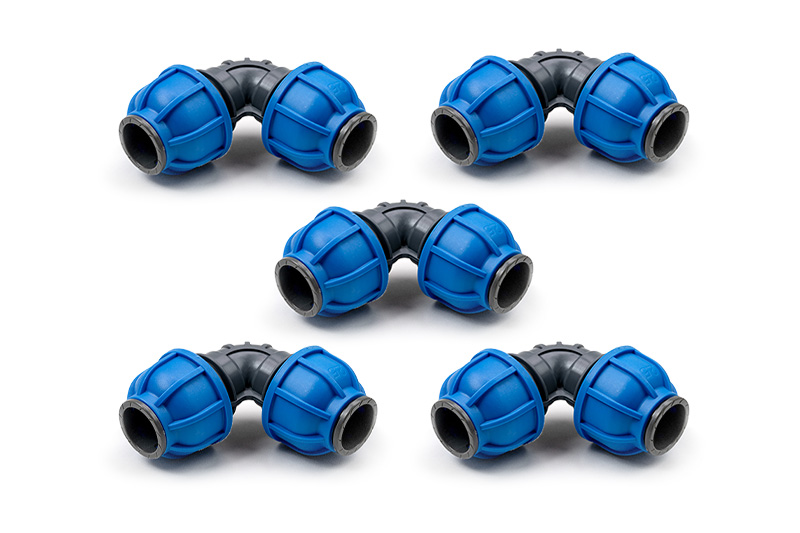

25mm (0.98") Ø Airline 90° Elbow Compression Fitting- Pack of 5
Part # 09-122525mm ELBOW JOINT 5PK
Description

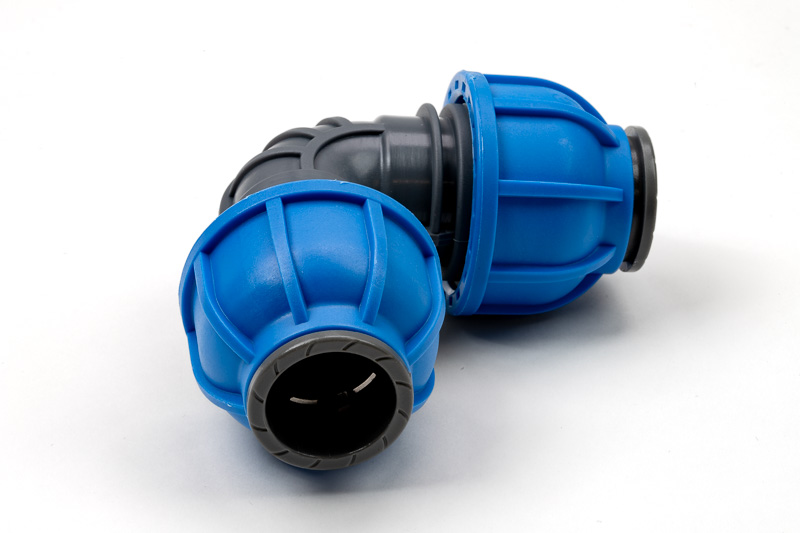

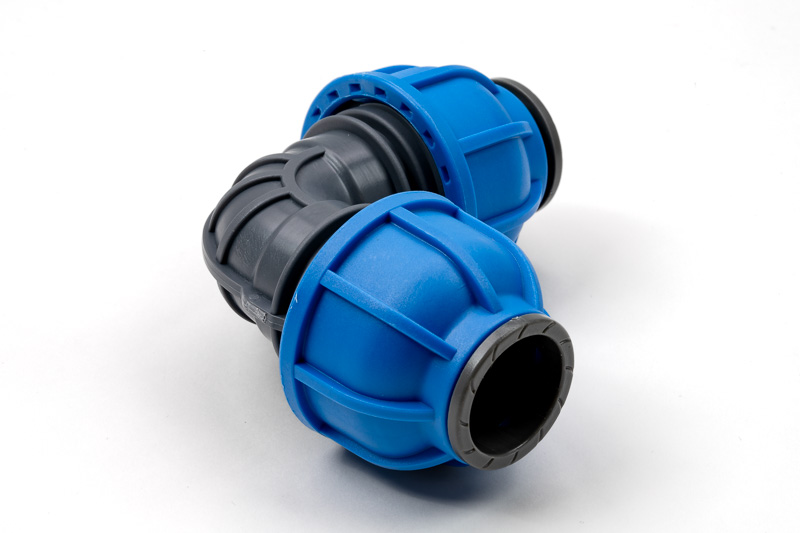

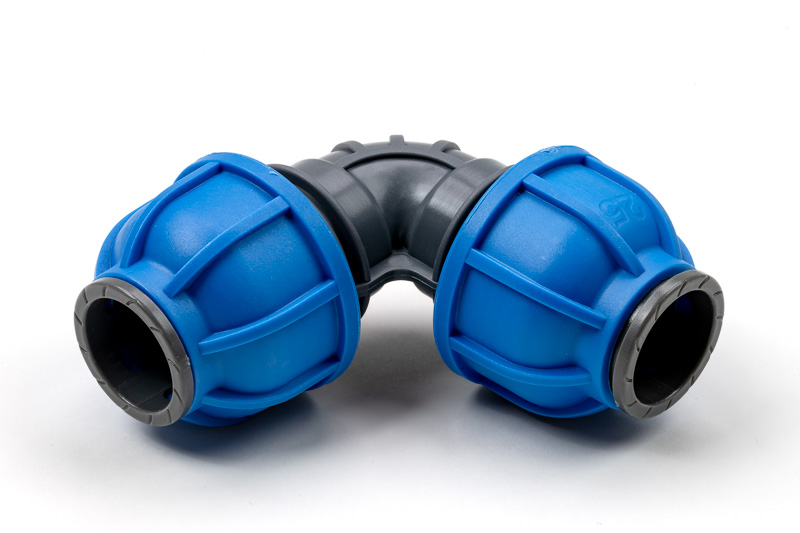

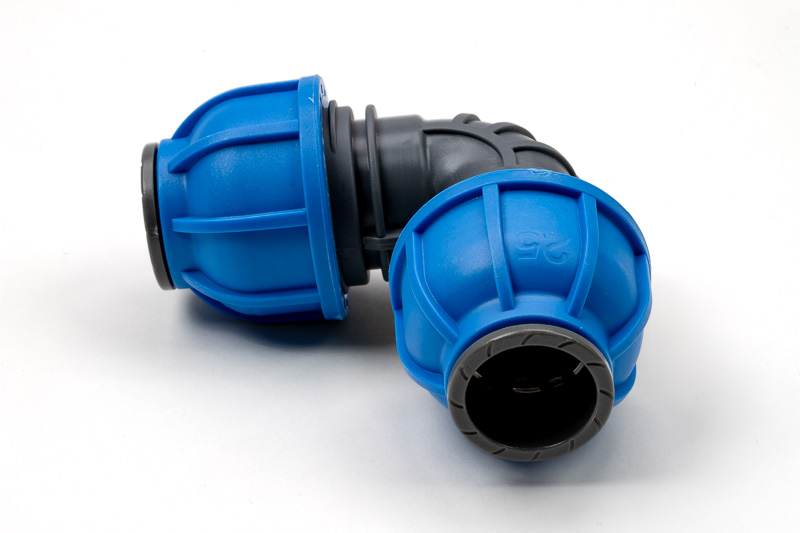

Create clean 90-degree turns in your compressed air piping system with this 5-pack of 25mm aluminum pipe elbows, designed for use with the HAC15-VS Complete Airline Kit (09-1147). These compression-fit 90° elbows allow you to easily route rigid air lines around corners without threading, gluing, or soldering. Built for fast installation and a secure, leak-free connection, they are ideal for expanding or modifying compressed air systems in workshops, CNC shops, and industrial applications. Made from durable, corrosion-resistant materials for reliable long-term performance.Technical specifications
System of Measurement | Universal - ANSI, ISO |
Type | Airline |
Machine Models | HAC15-VS |
Material | Nylon |
[ØDCON] Connection Diameter | 0.984 in \ 25.0 mm |
Max Working Pressure | 145.0 psi \ 10.0 bar |
Number of Pieces | 5 |
[OAL] Overall Length | 3.99 in \ 101.3 mm |
[OAH] Overall Height | 2.08 in \ 52.8 mm |
Weight | 1.6 lbs \ 0.7 kg |
Country of Origin | China |
Technical Images

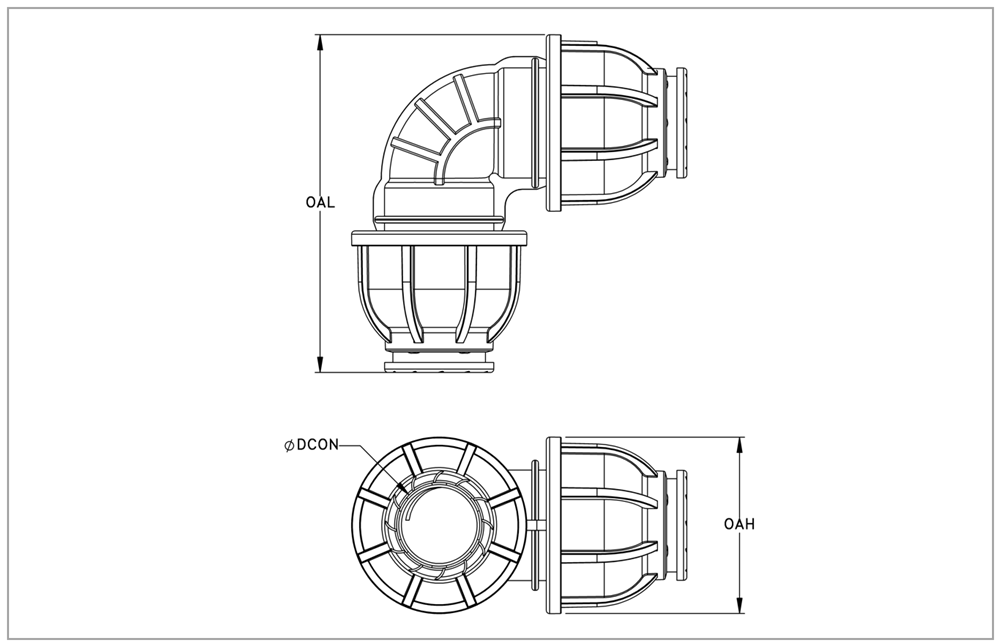

Enlarge Line Drawing & Specs
