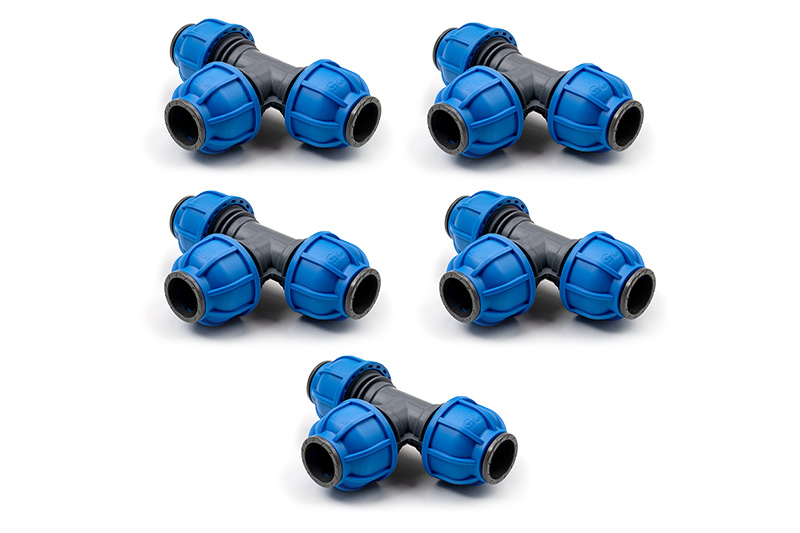

25mm (0.98") Ø Airline T-Joint Compression Fitting- Pack of 5
Part # 09-122625mm TEE JOINT 5PK
Description
Expand or reconfigure your compressed air system with this 5-pack of 25mm T-joints, designed for use with the HAC15-VS Complete Airline Kit (09-1147). These compression T-fittings allow you to create new branch lines or add additional air drops without threading, gluing, or soldering. Engineered for fast installation and a reliable, leak-free seal, they're ideal for workshops, CNC machines, and industrial compressed air systems. Manufactured from durable, corrosion-resistant materials for long-lasting performance.Technical specifications
System of Measurement | Universal - ANSI, ISO |
Type | Airline |
Machine Models | HAC15-VS |
Material | Nylon |
[ØDCON] Connection Diameter | 0.984 in \ 25.0 mm |
Max Working Pressure | 145.0 psi \ 10.0 bar |
Number of Pieces | 5 |
[OAL] Overall Length | 5.73 in \ 145.5 mm |
[OAW] Overall Width | 2.08 in \ 52.8 mm |
[OAH] Overall Height | 3.91 in \ 99.3 mm |
Weight | 2.2lbs \ 1.0 kg |
Country of Origin | China |
Technical Images

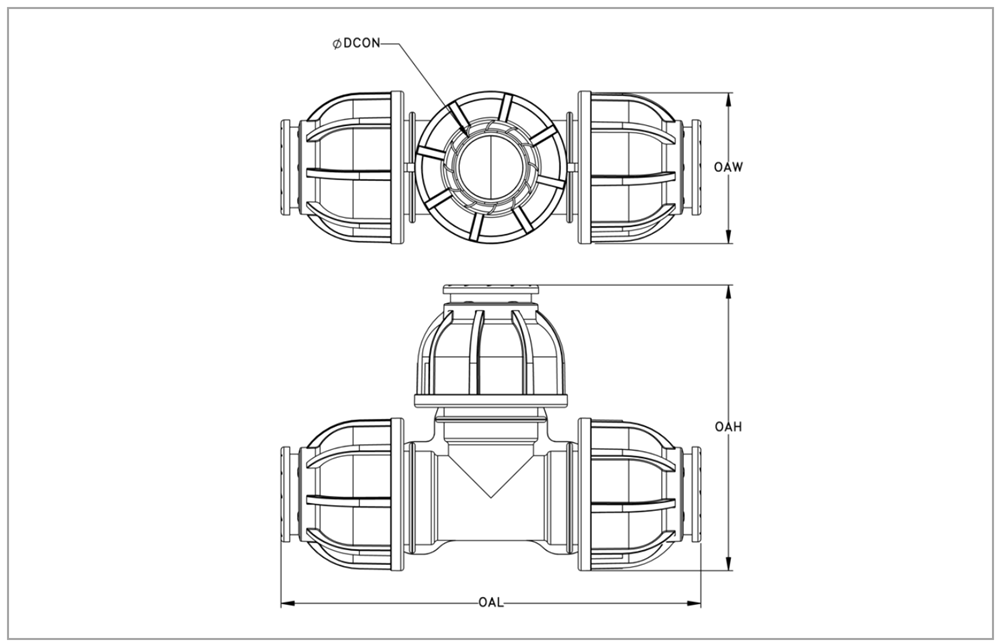

Enlarge Line Drawing & Specs
