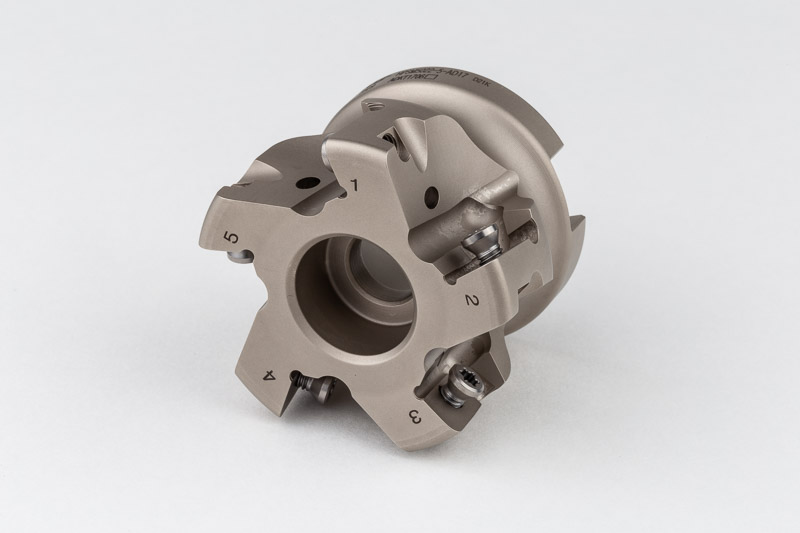

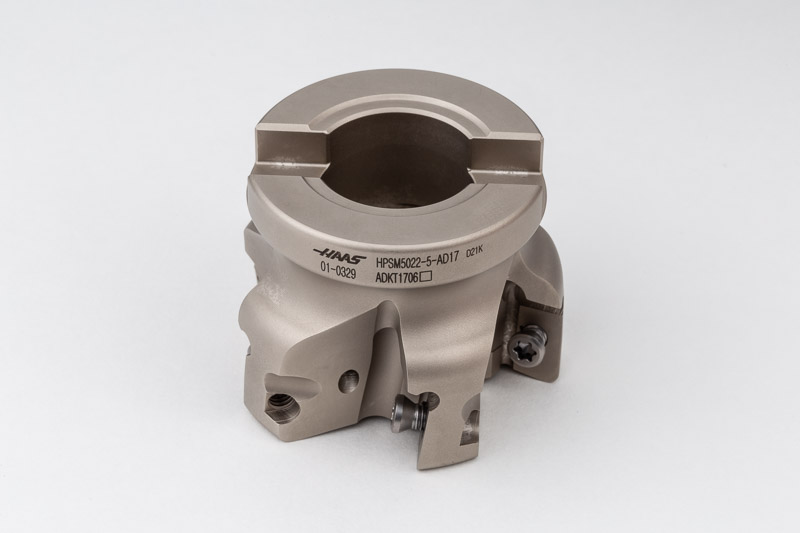

HPSM, 50mm Ø Shell Mill, 22mm Pilot Bore x 90° Lead Angle, 5 Flute, Positive/Positive Geometry, TSC
Part # 01-0329HPSM5022-5-AD17
Description

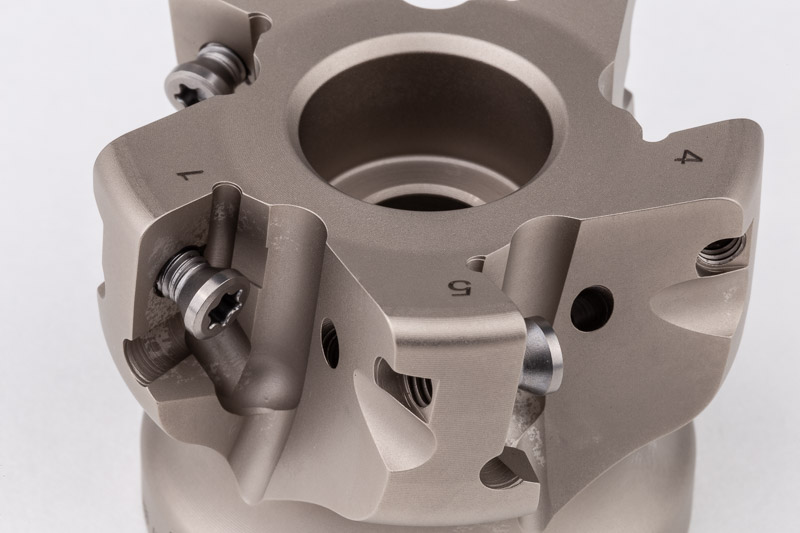

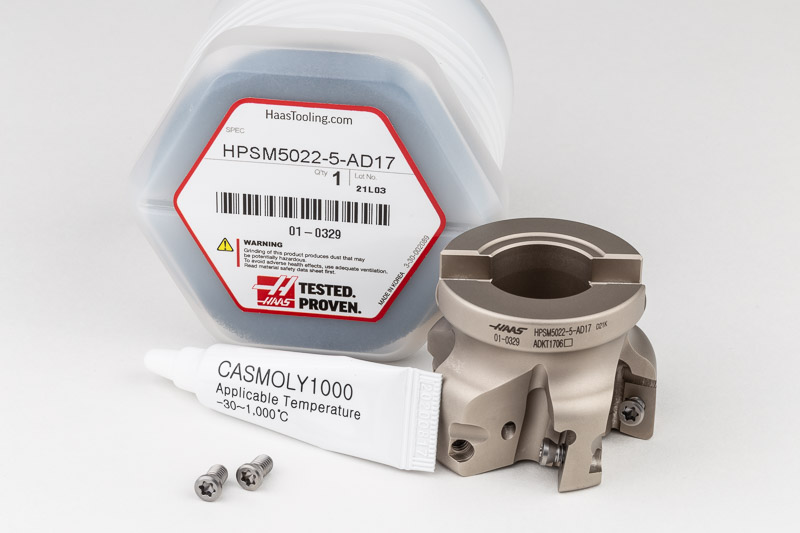

This Haas High Positive (HPSM) medium-pitch shell mill is a rigid, multi-purpose cutter for hard-to-cut materials. The high-rake, wi per-edge insert lowers cutting loads at greater cutting depths, while still providing satisfactory surface finishes and improved chip control at higher material removal rates, specifically when applied for copy milling, face milling, helical milling, ramping, shoulder milling, and slotting. It has a 50mm cutting diameter, and a 22mm pilot bore, with a 90-degree cutting edge. The positive axial, positive radial-raked cutter body takes 5 parallelogram cutting inserts. The screw-clamp inserts have 2 cutting edges, and are available in grades for steel, stainless steel, cast iron, and aluminum/non-ferrous materials. This cutter body is through-tool coolant (TSC) capable, when used in conjunction with a coolant-through arbor screw. Inserts and coolant-through arbor screw sold separately.Download documents
Technical specifications
System of Measurement | Metric - ISO |
[ØDC] Cutting Diameter | 50.0 mm |
Milling Cutter Series | HPSM - Haas High + HD |
Toolpath Type | Shoulder Milling, Slotting, Copy Milling, Ramping, Helical Milling, Face Milling |
[°] Lead Angle | 90 |
[Z] Number of Cutting Teeth | 5 |
[Ød2] Diameter | 18.0 mm |
[Ød] Arbor Hole Diameter | 22.0 mm |
[E] Arbor Hole Depth | 21.0 mm |
[a] Keyway Width | 10.4 mm |
[b] Keyway Depth | 6.3 mm |
[Ap] Max. Cutting Depth | 16.5 mm |
[OAL] Overall Length | 40.0 mm |
Maximum RPM | 10000 |
Torque of Insert Screw | 300 Ncm |
Coupling Style | A |
Through Tool Coolant | Yes |
Weight | 0.4 lbs \ 0.2 kg |
Country of Origin | South Korea |
Technical Images

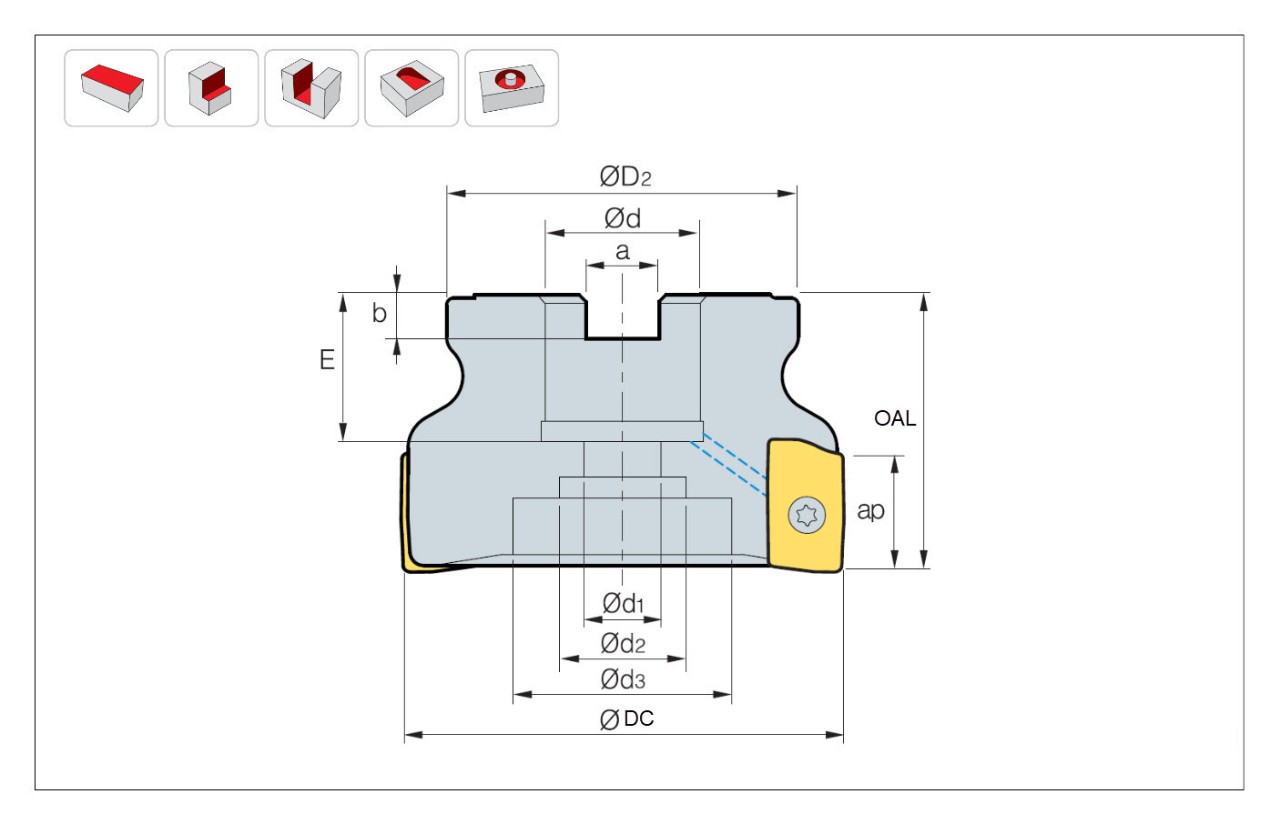

Enlarge Line Drawing & Specs
