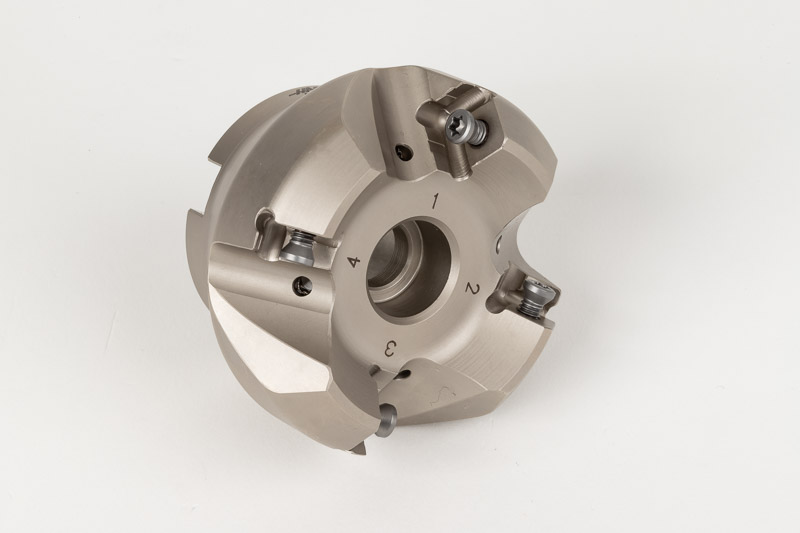

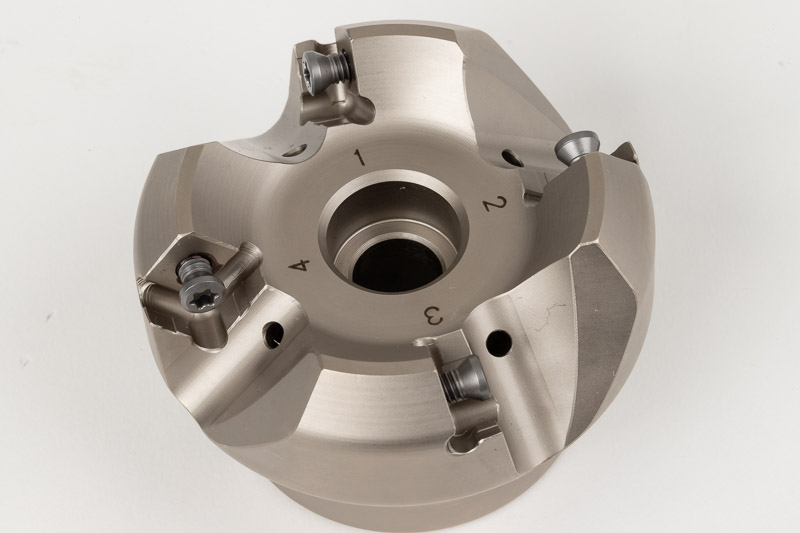

HCSNP, 2" Ø Shell Mill, 3/4" Pilot Bore x 45° Lead Angle, 4 Flute, Negative/Positive Geometry, TSC
Part # 01-0608HCSNPI4200-4
Description
This Haas Square Negative Positive (HCSNP) coarse-pitch shell mill is an economical, highly durable cutter that produces lower cutting forces and improved surface finishes due to its high-rake, wiper-edge inserts. Its unique geometry excels in low-power machining applications across a wide range of materials, and is specifically designed for face milling. It has a 2.0 in \ 2" cutting diameter, and a 3/4" pilot bore, with a 45-degree cutting edge. The negative axial, positive radial-raked cutter body takes 4 square cutting inserts. The screw-clamp inserts have 8 cutting edges, and are available in grades for steel, stainless steel, cast iron, and aluminum/non-ferrous materials. This cutter body is through-tool coolant (TSC) capable, when used in conjunction with a coolant-through arbor screw. Inserts and coolant-through arbor screw sold separately.HOW TO USE THIS PRODUCT?
Download documents
Technical specifications
System of Measurement | Inch - ANSI |
[ØDC] Cutting Diameter | 2.0 in \ 2" |
Milling Cutter Series | HCSNP - Haas Square - / + |
Toolpath Type | Face Milling |
[ØDCX] Max Cutting Diameter | 2.527 in |
[°] Lead Angle | 45 |
[Z] Number of Cutting Teeth | 4 |
[Ød2] Diameter | 1.77 in |
[Ød] Arbor Hole Diameter | 0.75 in |
[a] Keyway Width | 0.315 in |
[b] Keyway Depth | 0.22 in |
[Ap] Max. Cutting Depth | 0.236 in |
[OAL] Overall Length | 1.75 in |
Maximum RPM | 9000 |
Torque of Insert Screw | 300 Ncm |
Coupling Style | A |
Through Tool Coolant | Yes |
Weight | 1.1 lbs \ 0.5 kg |
Country of Origin | South Korea |
Technical Images

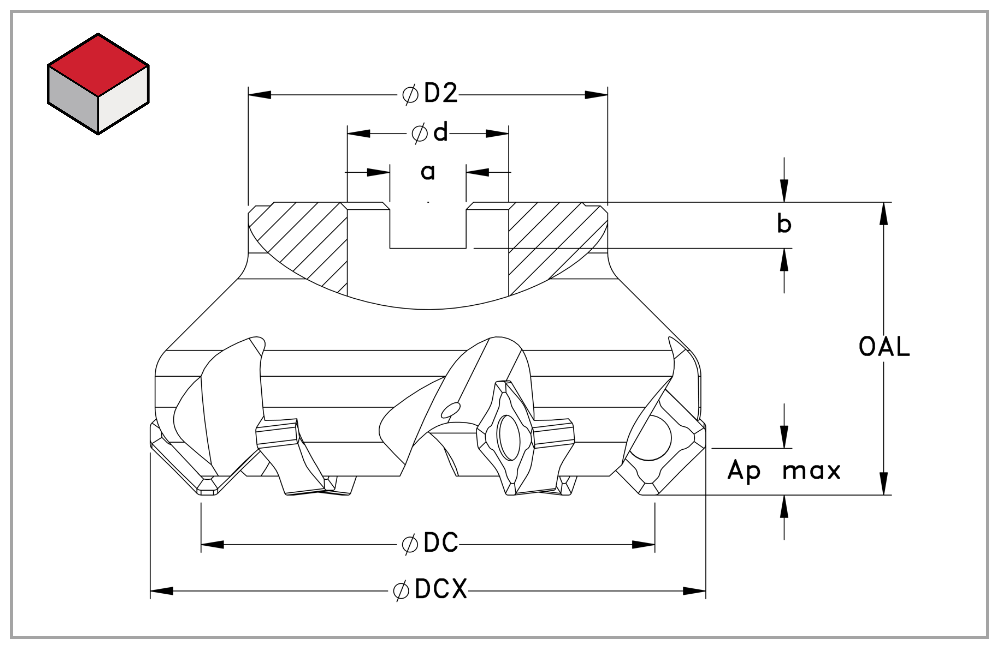

Enlarge Line Drawing & Specs
