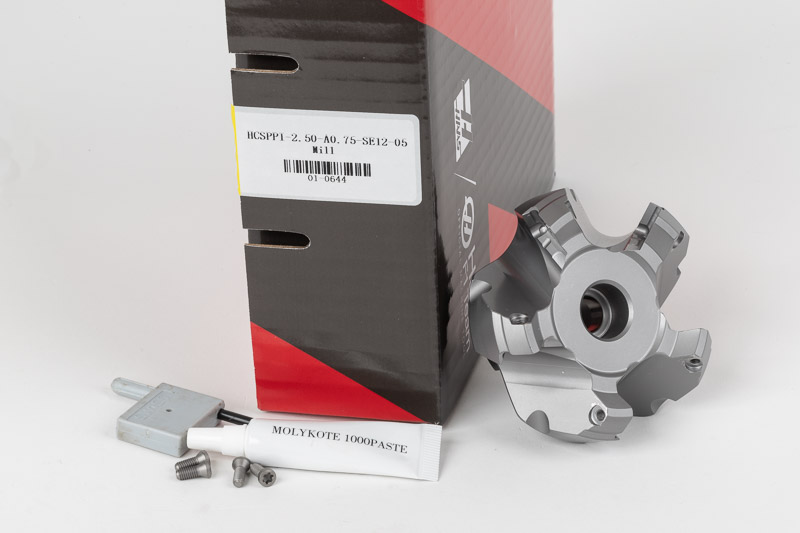

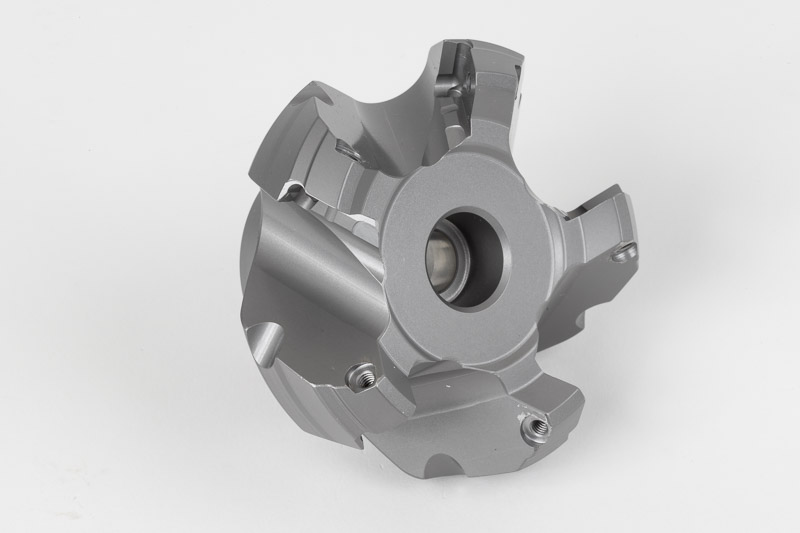

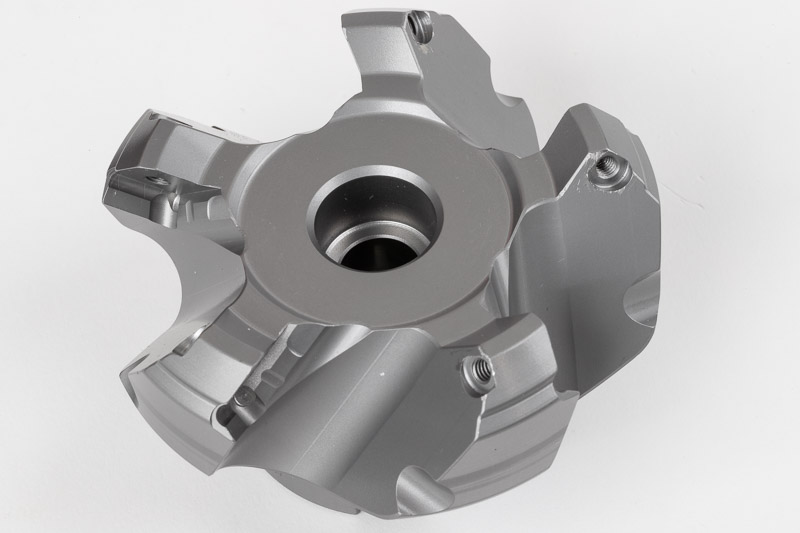

HSPP, 2-1/2" Ø Shell Mill, 3/4" Pilot Bore x 45° Lead Angle, 5 Flute, Positive/Positive Geometry
Part # 01-0644HCSPPI-2.50-A0.75-SE12-05
Description
This Haas Square Positive Positive (HSPP) medium-pitch shell mill is an excellent multi-purpose cutter for applications that require high material removal rates while still maintaining good surface finishes. The large spaces between each cutting edge encourage excellent chip evacuation, and the wiper-edge inserts improve overall surface finish when face milling. It has a 2.5 in \ 2-1/2" cutting diameter, and a 3/4" pilot bore, with a 45-degree cutting edge. The positive axial, positive radial-raked cutter body takes 5 square cutting inserts. The screw-clamp inserts have 4 cutting edges, and are available in grades for steel, stainless steel, and aluminum/non-ferrous materials. Inserts sold separately.Technical specifications
System of Measurement | Inch - ANSI |
[ØDC] Cutting Diameter | 2.5 in \ 2-1/2" |
Milling Cutter Series | HSPP - Haas Square + / + |
Toolpath Type | Face Milling |
[ØDCX] Max Cutting Diameter | 3.01 in |
[°] Lead Angle | 45 |
[Z] Number of Cutting Teeth | 5 |
[Ød2] Diameter | 1.77 in |
[Ød] Arbor Hole Diameter | 0.75 in |
[a] Keyway Width | 0.313 in |
[b] Keyway Depth | 0.22 in |
[Ap] Max. Cutting Depth | 0.236 in |
[OAL] Overall Length | 1.75 in |
Maximum RPM | 14000 |
Torque of Insert Screw | 270 Ncm |
Coupling Style | A |
Through Tool Coolant | No |
Weight | 1.9 lbs \ 0.9 kg |
Country of Origin | China |
Technical Images

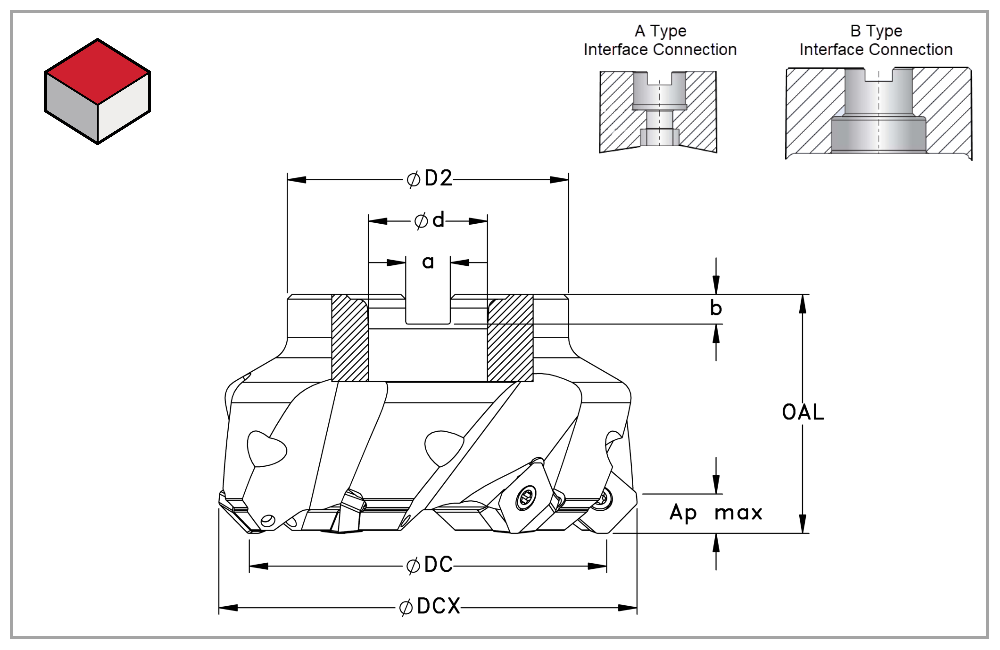

Enlarge Line Drawing & Specs
