System of Measurement	Metric - ISO
Tool Or Insert	Tool
Tool Orientation	External
Hand of Tool	Right
Insert Style	HRPT - Full Rad. Profile Turn, HMDT - Multi Directional Turn, HTG - Turn, Groove
[OAL] Overall Length	150.0 mm
[H1] Cutting Height	25.0 mm
[H] Shank Height	25.0 mm
[B] Shank Width	25.0 mm
[f] Dimension	25.35 mm
[CW] Cutting Width	0.157 in \ 4.0 mm
[T-MAX] Maximum Depth	13.0 mm
Through Tool Coolant	No
Weight	1.5 lbs \ 0.7 kg
Country of Origin	Germany

Shop Tooling

HPT2525-04DR13, 25mm Square Steel Shank External (OD) Grooving Tool, Right-Hand, Insert Size 4

Technical specifications

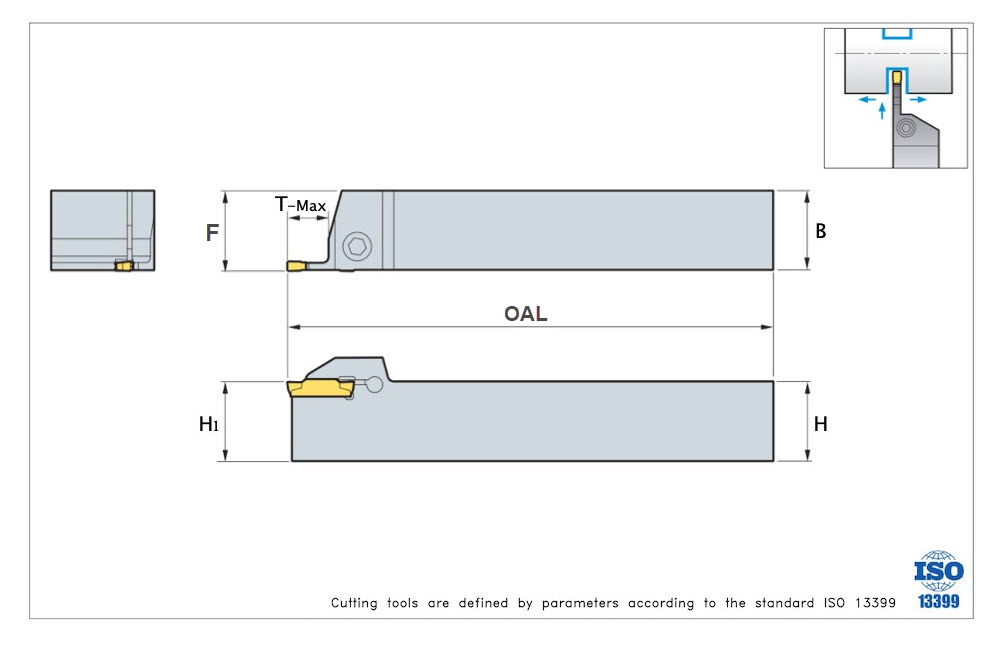

Technical Images
