System of Measurement	Universal - ANSI, ISO
Tool Or Insert	Insert
Tool Orientation	Internal, External
Insert Style	HGMN - Deep Groove Turn
Grade	HU30 - Light Finishing
Coating	PVD-TiAlN
Configuration	Standard

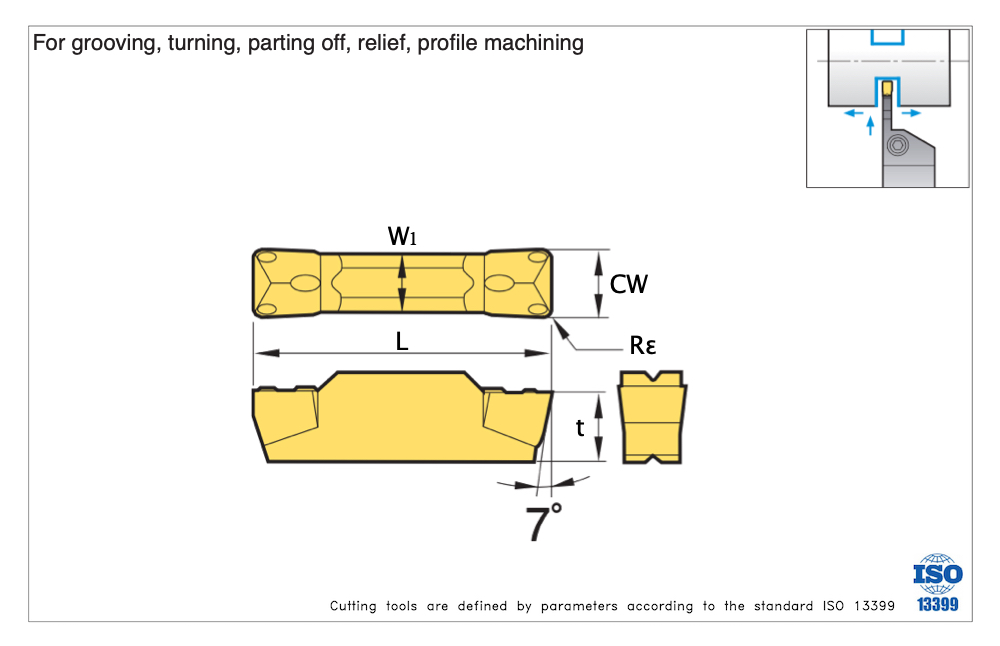

[INSL] Insert Length	0.63 in \ 16.0 mm
[t] Cutting Edge Height	0.138 in \ 3.5 mm
[W1] Insert Width	0.063 in \ 1.6 mm
[RE] Corner Radius	0.008 in \ 0.2 mm
[CW] Cutting Width	0.079 in \ 2.0 mm
Weight	0.1 lbs \ 0.1 kg
Country of Origin	South Korea
