Carbide Engraving Tapered Ball End Mill, 2 Flute, Uncoated, 1/8" Smooth Shank x 5/16" LOC, 0.0313" Radius
Part # 03-2088BNEM 2FL 1/8 (R.0312).1250X.3125X1.5"
Description
This 2-flute carbide engraving tapered ball end mill has a 0.125 in \ 1/8" cutting diameter, with a 1/8" smooth shank, 5/16" length of cut (LOC), 0.0313" corner radius, and a 1-1/2" overall length. It is uncoated, and made to cut aluminum/non-ferrous materials.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
N - Aluminum
Technical specifications
System of Measurement | Inch - ANSI |
Material | Carbide |
Coating | Uncoated |
[RE] Radius Size | 0.0313 in |
[ØDC] Cutting Diameter | 0.125 in \ 1/8" |
[ØDMM] Shank Diameter | 0.125 in |
[LOC] Length Of Cut | 0.313 in |
[OAL] Overall Length | 1.5 in |
[NOF] Number of Flutes | 2 |
[SIG°] Included Angle | 14 |
Cutting Direction | Right |
Weight | 0.1 lbs \ 0.1 kg |
Country of Origin | USA |
Technical Images

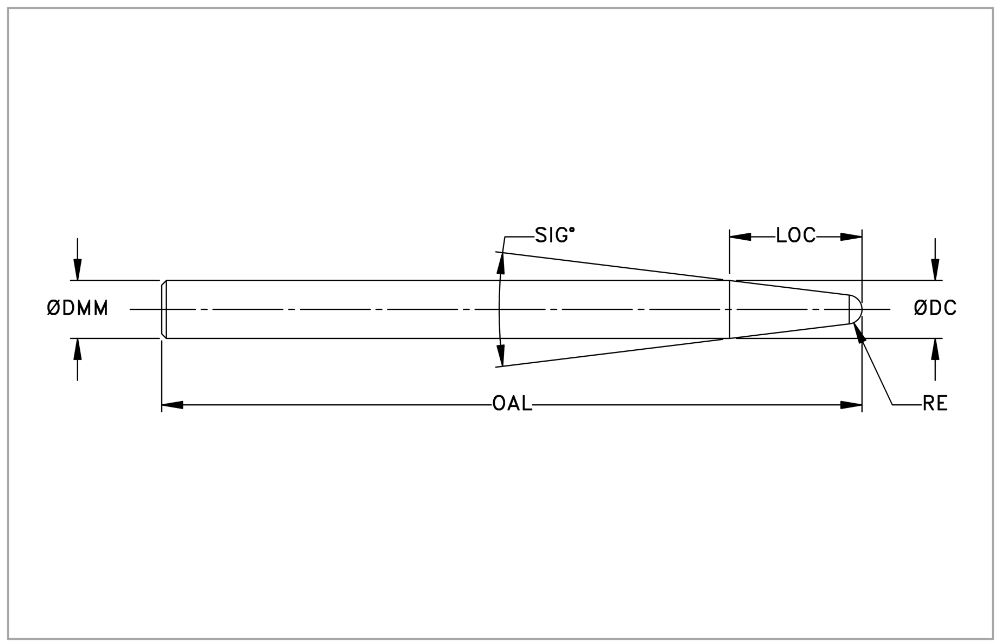

Enlarge Line Drawing & Specs
