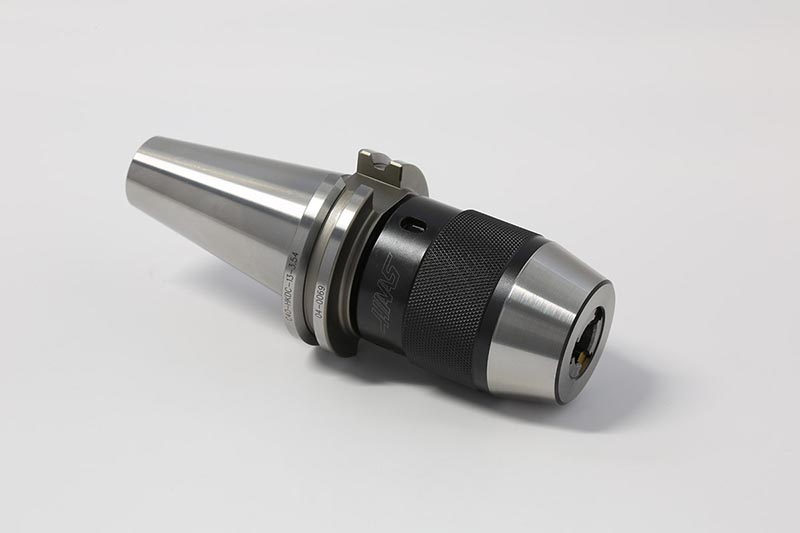

CT40 NPU13 NC Keyless Drill Chuck x 3.54" Gage Length
Part # 04-0069C40-HKDC-13-3.54
Description
This CAT40 NPU13 NC keyless drill chuck accepts a wide range of drill sizes (0.039" to 0.512"), and has a 3.54" gage length. The drill chuck is versatile and easy to use, and is integrated with the toolholder into a single body for a more compact design. This chuck has a 5/8"-11 pull stud/retention knob thread.Download documents
Technical specifications
System of Measurement | Inch - ANSI |
Taper | CT40 |
[ØBD] Body Diameter | 1.99 in |
[ØDCBN] Minimum Bore Diameter | 0.039 in |
[ØDCBX] Maximum Bore Diameter | 0.512 in |
[GL] Gage Length | 3.54 in |
[LH] Head Length | 2.657 in |
[OAL] Overall Length | 6.23 in |
Concentricity | 0.002" |
Balanced to RPM | 5000 |
Retention Knob Thread Size | 5/8"-11 |
Through Tool Coolant | No |
Spindle Drive Slots | Yes |
Weight | 3.7 lbs \ 1.7 kg |
Country of Origin | South Korea |
Technical Images
Enlarge Line Drawing & Specs
