Haas CT40 Pull Stud/Retention Knob, Standard - Pack of 10
Part # 04-0200CT40 PULL STUD, PACK OF 10
Description

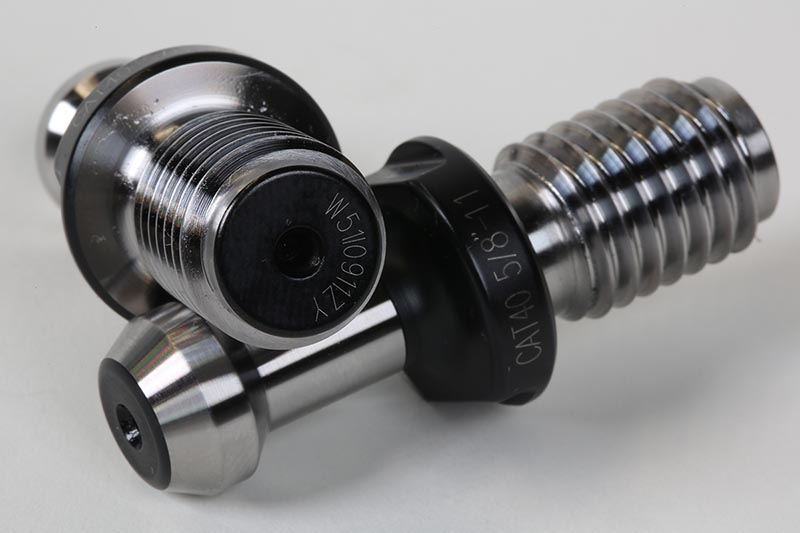

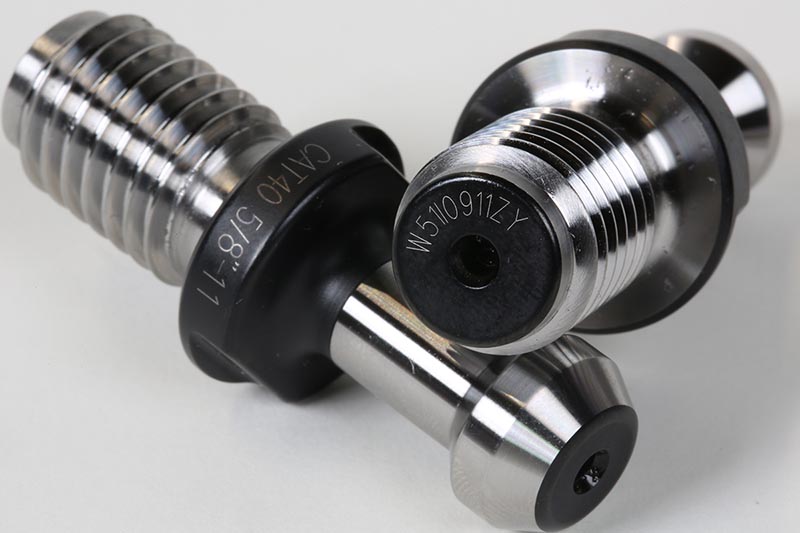

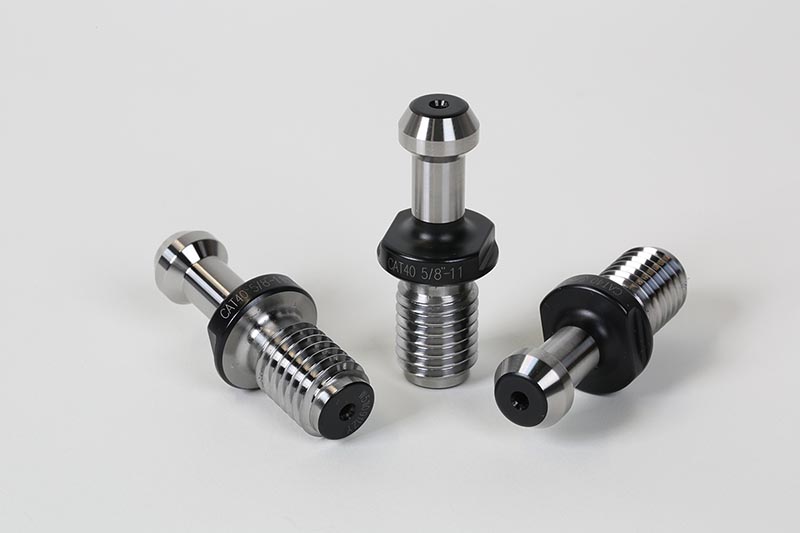

These CAT40 pull studs/retention knobs are designed specifically for use in Haas CT40 \ SK40 (ISO40) machines. They feature a 45° knob angle, 0.59" knob diameter, and 0.393" neck diameter, with a 5/8"-11 thread size. These pull studs DO NOT have a through-hole for through-tool coolant (TSC). Pack of 10.Download documents
Technical specifications
System of Measurement | Inch - ANSI |
Taper | CT40 |
[ØK] Knob Diameter | 0.59 in |
[ØN] Neck Diameter | 0.393 in |
[W] Wrench Flat Diameter | 0.748 in |
[OAL] Overall Length | 2.25 in |
[FT]Flange to Beginning of Tap | 0.988 in |
[FE] Flange to End of Knob | 1.263 in |
[KA] Knob Angle | 45 |
[TP] Thread Pitch | 5/8"-11 |
Number of Pieces | 10 |
Through Tool Coolant | No |
Weight | 1.8 lbs \ 0.8 kg |
Country of Origin | China |
Technical Images

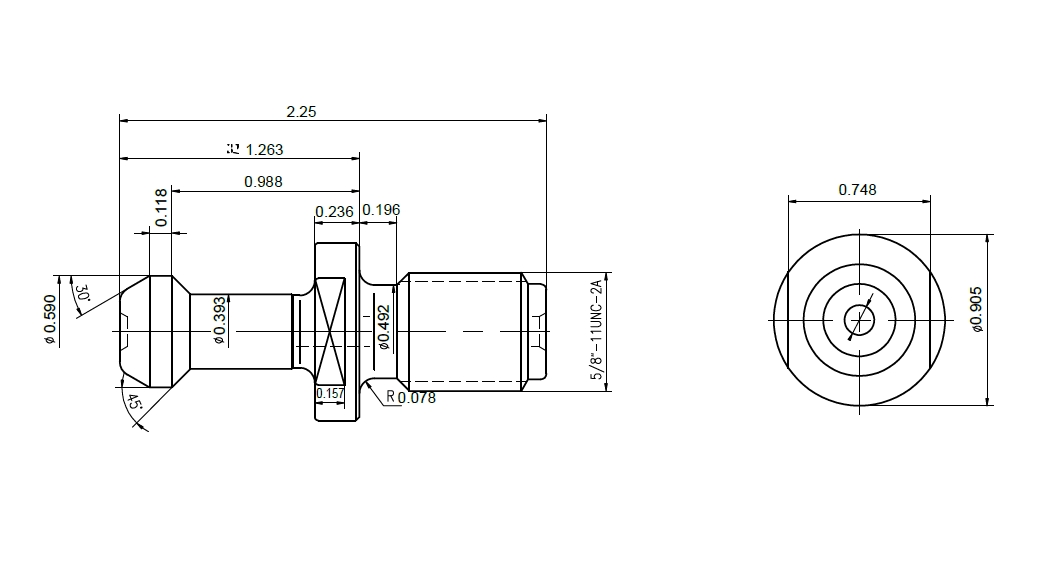

Enlarge Line Drawing & Specs
