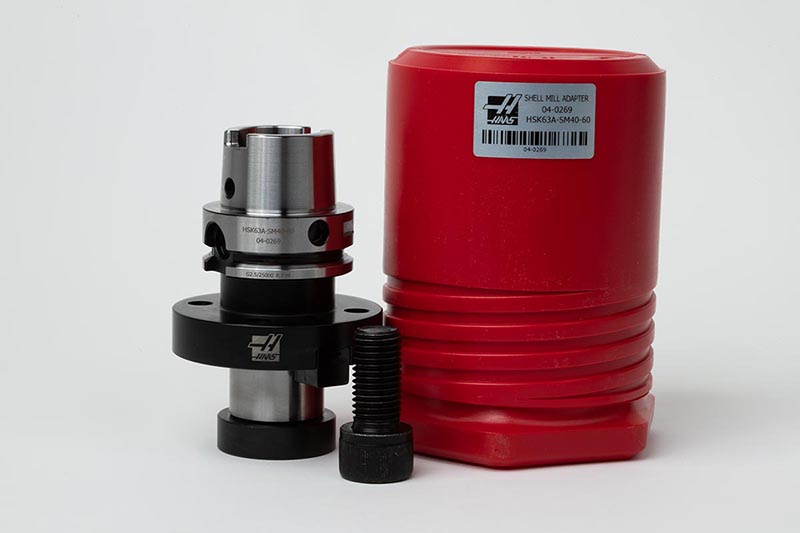

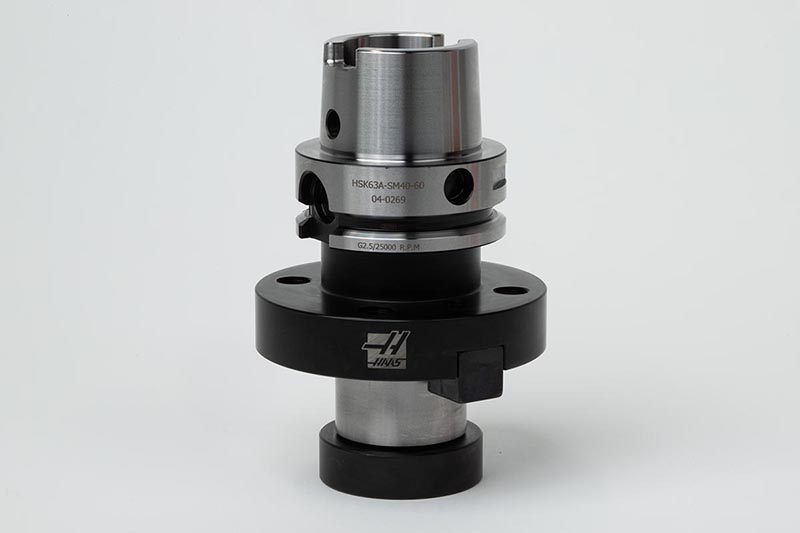

HSK63A Shell Mill Holder, 40mm Pilot Diameter x 60mm Gage Length, TSC
Part # 04-0269HSK63A-SM40-60
Description
This HSK63A shell mill holder has a 40mm pilot bore and a 60mm gage length. It is constructed of hardened alloy steel, and designed to hold a variety of arbor-style shell mill and face mill cutters. The drive keys are removable for added versatility. Includes a solid arbor screw; a coolant-through arbor screw is required for through-tool coolant (TSC) cutters.Download documents
Technical specifications
System of Measurement | Metric - ISO |
Taper | HSK63A |
[ØPD] Pilot Diameter | 40.0 mm |
[ØBD] Body Diameter | 88.0 mm |
[GL] Gage Length | 60.0 mm |
[BL] Body Length | 18.0 mm |
[PL] Pilot Length | 27.0 mm |
[DH] Drive Lug Height | 8.0 mm |
[a] Keyway Width | 16.0 mm |
[TP1] Thread | M20x2.5 |
Concentricity | 0.005 mm |
Balanced to RPM | 20000 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 5.2 lbs \ 2.4 kg |
Country of Origin | China |
Technical Images

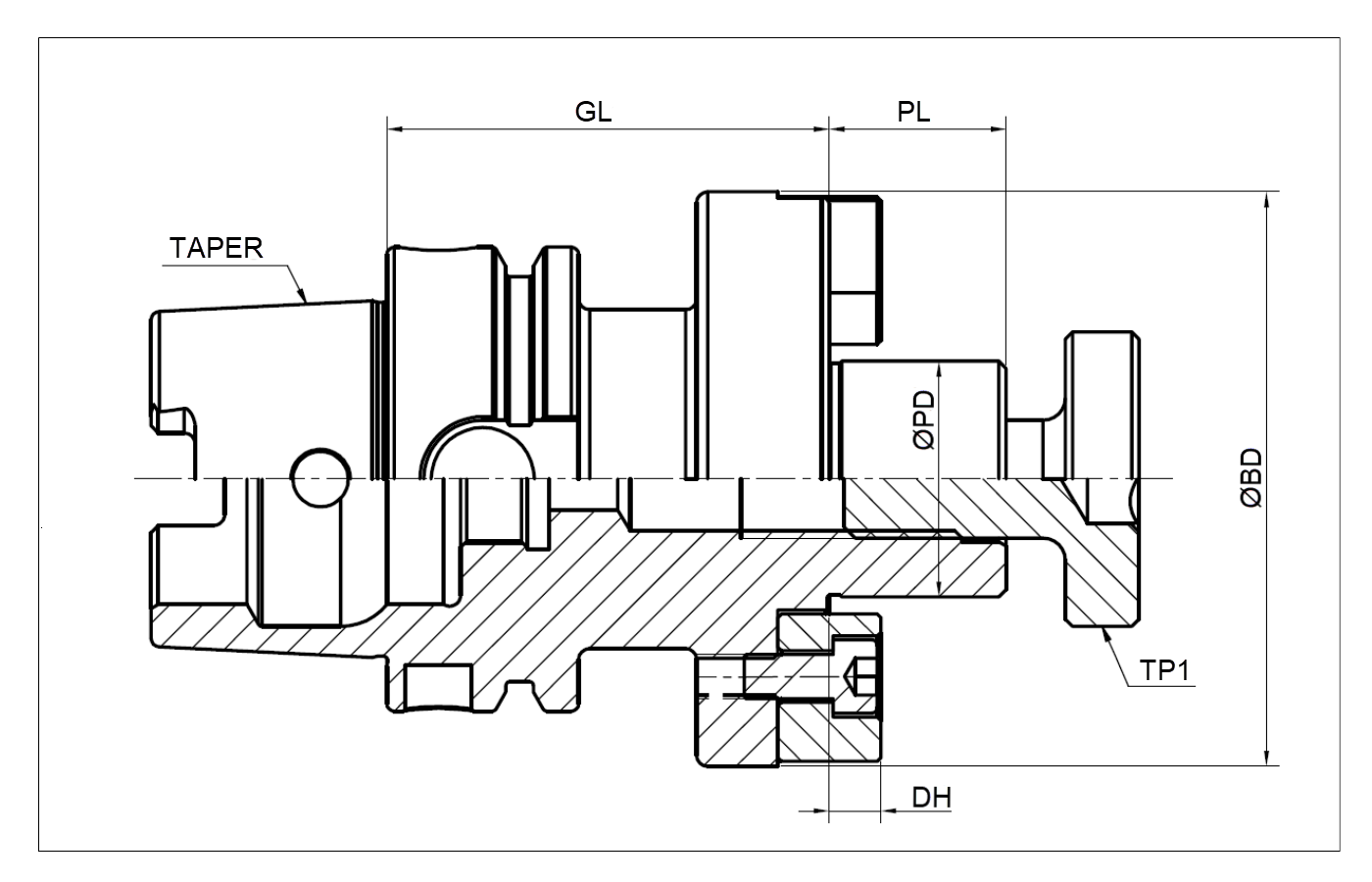

Enlarge Line Drawing & Specs
