R8 APU13 Keyless Drill Chuck x 4.33" (109.98mm) Gage Length
Part # 04-1466
1/2" K-DRILL CHUCK HOLDER, R8 TAPER
Description
This R8 APU13 keyless drill chuck accepts a wide range of drill sizes 0.039" to 0.512" (0.99 mm to 13.0 mm), and has a 4.33" (109.98 mm) gage length. This drill chuck is versatile and easy to use, and is integrated with the toolholder into a single body for a more compact design. This chuck has a standard 7/16"-20 drawbar thread.
Technical specifications
System of Measurement | Universal - ANSI, ISO |
Taper | R8 |
[ØBD] Body Diameter | 1.89 in \ 48.0 mm |
[ØDCBN] Minimum Bore Diameter | 0.039 in \ 0.99 mm |
[ØDCBX] Maximum Bore Diameter | 0.512 in \ 13.0 mm |
[GL] Gage Length | 4.33 in \ 109.98 mm |
[LH] Head Length | 4.27 in \ 108.46 mm |
[OAL] Overall Length | 8.33 in \ 211.58 mm |
Concentricity | 0.0003" \ 0.008 mm |
[DT] Drawbar Thread | 7/16"-20 |
Through Tool Coolant | No |
Spindle Drive Slots | Yes |
Weight | 0.3 lbs \ 0.2 kg |
Country of Origin | China |

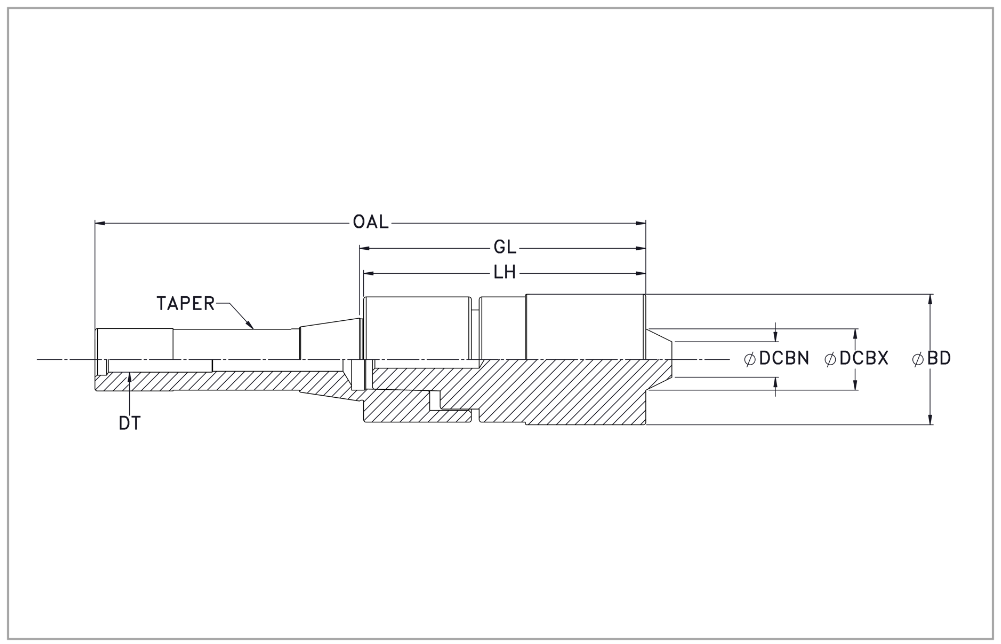

Technical Images
