Chuck Size	12.0 in \ 305.0 mm
Material	Soft Steel
End Type	Standard Flat
[ØD2] Screw Hole Diameter	0.656 in \ 16.7 mm
[ØD1] Counterbore Diameter	1.0 in \ 25.4 mm
[ØBD] Body Diameter	N/A
[D] Groove Width	0.826 in \ 21.0 mm
[OAL] Overall Length	5.5 in \ 139.7 mm
[OAW] Overall Width	2.0 in \ 50.8 mm
[OAH] Overall Height	2.0 in \ 50.8 mm
[S] Screw Spacing	1.181 in \ 30.0 mm
Serration Size	1.5 mm x 60°
Weight	15.8 lbs \ 7.2 kg
Country of Origin	China

Shop Tooling

Soft Steel Machinable Lathe Jaws for 12" (305mm) Chuck, Standard Flat, 3 Pc. Set

Technical specifications

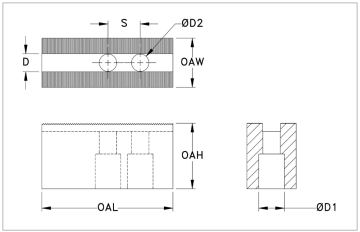

Technical Images
