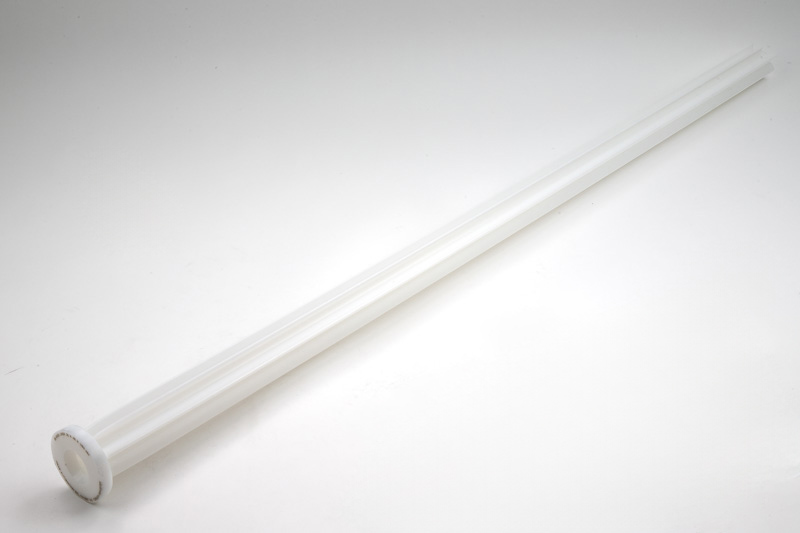

Haas 1.06m Extruded Spindle Liner, 20mm Bore Diameter x 45mm External Diameter, for Round Bar Stock
Part # 05-0633LINER 20 X 46 X 1220 MM
Description
Haas spindle liners provide extra stability to bar stock during turning operations. Made from durable extruded high-density polyethylene, these spindle liners are an easy and inexpensive tool to utilize around the workshop. With a 20mm internal bore and a 45mm interference fit external diameter, these spindle liners are engineered to decrease vibration and maximize workflow with the use of the Haas Bar Feeder.Technical specifications
System of Measurement | Metric - ISO |
Type | Liner |
Machine Models | ST-10, ST-10Y |
[ØD] Nominal Bore Diameter | 20.0 mm |
[ØED] Nominal Ext. Diameter | 45.0 mm |
[ØD] Bore Diameter | 20.37 +0.25 / -0.00 mm |
[ØED] External Diameter | 46.1 ±0.254 mm |
[ØA] Head Diameter | 58.9 mm |
[BL] Body Length | 1066.8 mm |
[OAL] Overall Length | 1076.45 mm |
Weight | 1.4 lbs \ 0.6 kg |
Country of Origin | USA |
Technical Images
Enlarge Line Drawing & Specs
