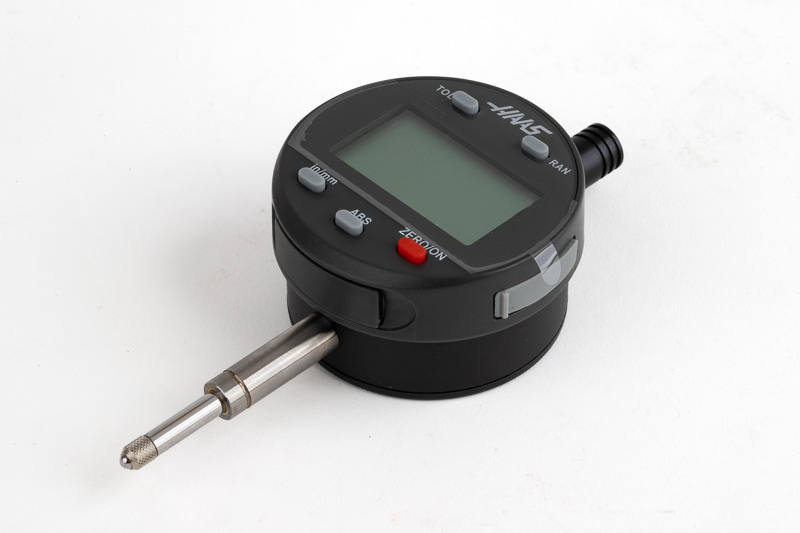

Digital Drop Indicator, 0.5" (12mm) Range, 0.00016" (0.004mm) Accuracy, Flat Back
Part # 09-0089DIGITAL INDICATOR,0-12.7mm/0-0.5"
Description
This high-precision Haas digital drop indicator features a 0.5" (12.7 mm) measuring range with a resolution of 0.00005" in inch mode and 0.001 mm in metric mode. The selectable tolerance mode allows for convenient GO/NO-GO inspection, while the zero function can be set at any position for flexible measurements. Absolute mode retains the zero position even after the indicator is powered off. The indicator includes a flat back plate and comes with a CR2032 battery. A certificate of calibration is not included.Download documents
Technical specifications
System of Measurement | Universal - ANSI, ISO |
Type | Digital Drop Indicator |
Gauge Type | Digital |
Mount Type | Stem |
Indicator Type | Plunger |
Dial Diameter | 57.4 mm |
Range | 0-0.5 in \ 0-12.7 mm |
Stem Diameter | 8.0 mm |
Plunger Length | 15.7 mm |
Plunger Point Thread | M2.5x0.45 |
Plunger Point Diameter | 3.0 mm |
Resolution | 0.00005 in \ 0.001 mm |
Accuracy | ± 0.004 mm |
Hysteresis | 0.002 mm |
Max Measuring Force | 2.0 N |
Standard | JJG34-2022 |
Conformance Standard | CNAS |
Weight | 0.7 lbs \ 0.3 kg |
Country of Origin | China |
Calibration Certificate (Y/N) | N |
Inspection Report (Y/N) | Y |
Includes Battery | Y |
Power Supply | CR2032 |
