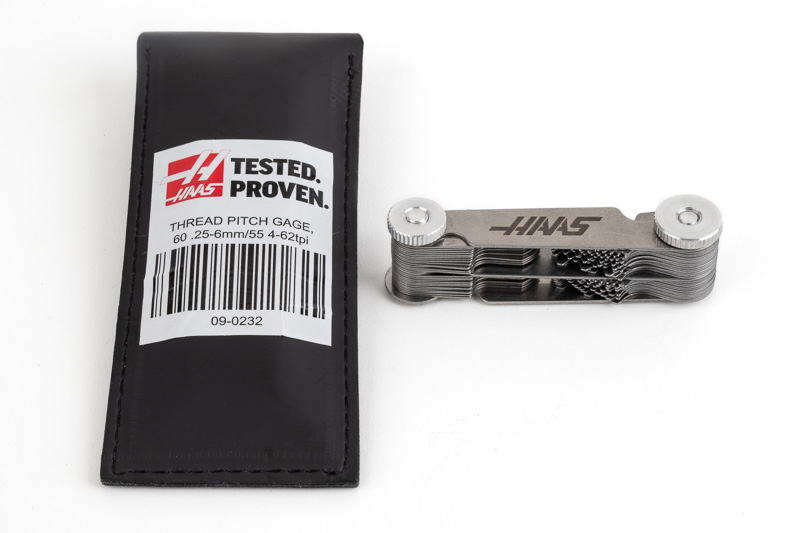

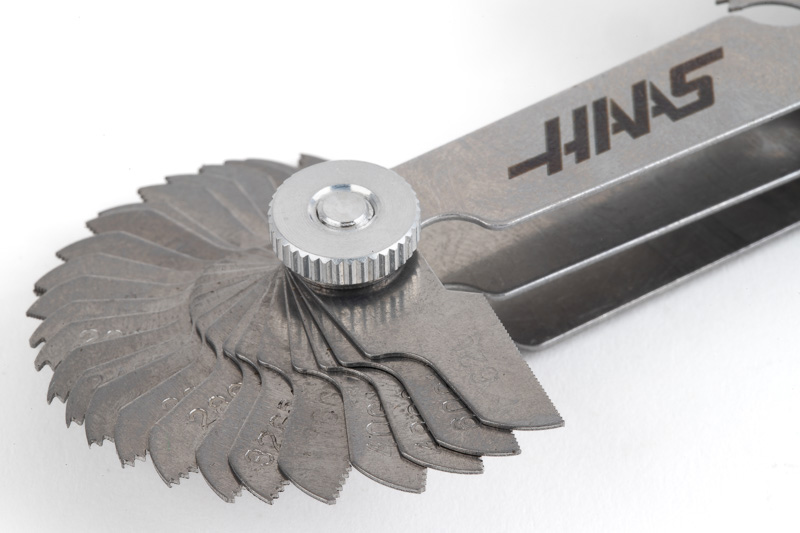

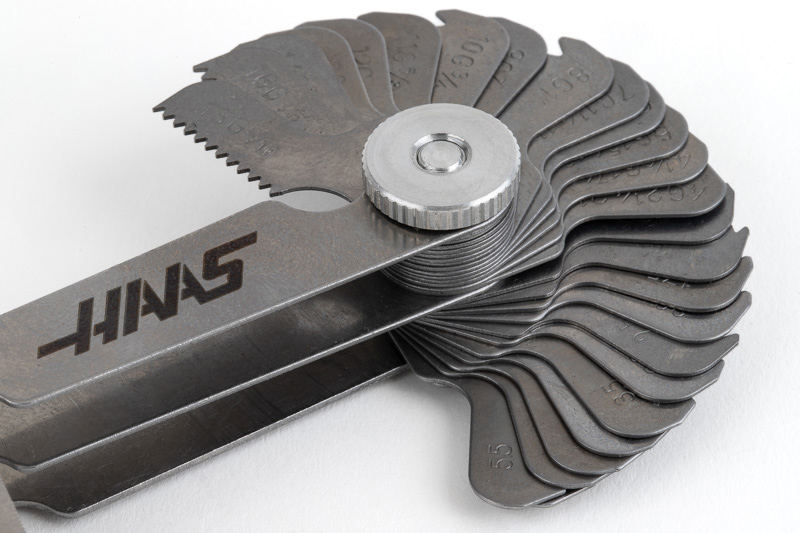

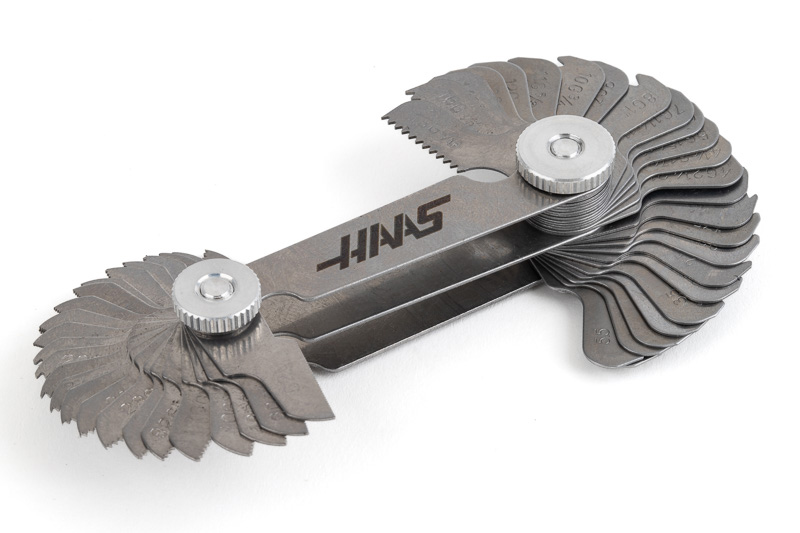

52-Piece, Thread Pitch Gauge, Metric & Whitworth
Part # 09-0232THREAD PITCH GAGE, 60 .25-6mm/55 4-62tpi
Description
This 52-piece Metric and Whitworth thread pitch gauge can be used to quickly and accurately identify the pitch of threaded screws, bolts, or nuts, enabling users to select the correct matching fasteners or determine thread specifications. See table below for specifications.Technical specifications
System of Measurement | Universal - ANSI, ISO |
Type | Thread Pitch Gauge |
Number of Leaves | 24 Metric \ 28 Whitworth |
Thread Series | M - Metric, MF - Metric Fine, BSW - British Std. Whitworth |
[TPI] Threads per Inch | 4.0 - 62.0 tpi |
[TP] Thread Pitch | 0.25 - 6.0 mm |
[θ] Angle | Metric 60° \ Whitworth 55° |
Material | Carbon Steel |
Weight | 0.2 lbs \ 0.1 kg |
Country of Origin | China |
Technical Images
Enlarge Line Drawing & Specs
