1-2" (25-50mm) Digital Outside Micrometer, 0.00005" (0.001mm) Resolution, 0.0001" Graduation
Part # 09-0265DIGITAL MIC INCH GRAD , 25-50mm/1-2"
Description
Outside micrometers are used in various applications and are most commonly used when measuring outside diameters or thicknesses of parts and features. This micrometer features a digital display, inch thimble graduations, carbide tipped anvils, stainless steel spindle, and an IP65 rating for dust and liquid resistance.Download documents
Technical specifications
Type | Digital Outside Micrometer |
System of Measurement | Universal - ANSI, ISO |
Thimble System of Measurement | Inch - ANSI |
Range | 1.0 - 2.0 in \ 25.0 - 50.0 mm |
Resolution | 0.00005 in \ 0.001 mm |
Graduation | 0.0001 in |
Thimble Type | Ratchet Thimble |
Accuracy | ± 0.00015 in |
Anvil Material | Carbide |
Spindle Material | Stainless Steel |
Micrometer Depth | 1.22 in |
Standard | DIN 863 |
Conformance Standard | CNAS |
IP Code | IP65 |
Includes Battery | Yes |
Power Supply | CR2450 |
Weight | 1.8 lbs \ 0.8 kg |
Country of Origin | China |
Calibration Certificate (Y/N) | Y |

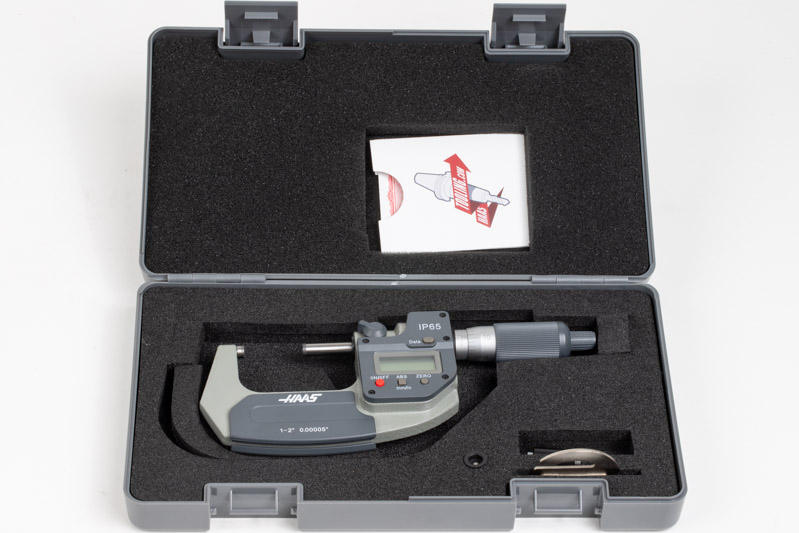

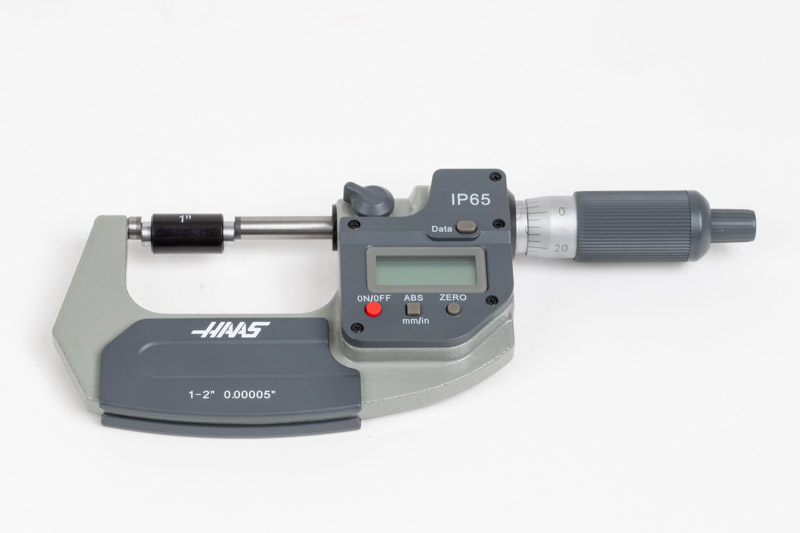

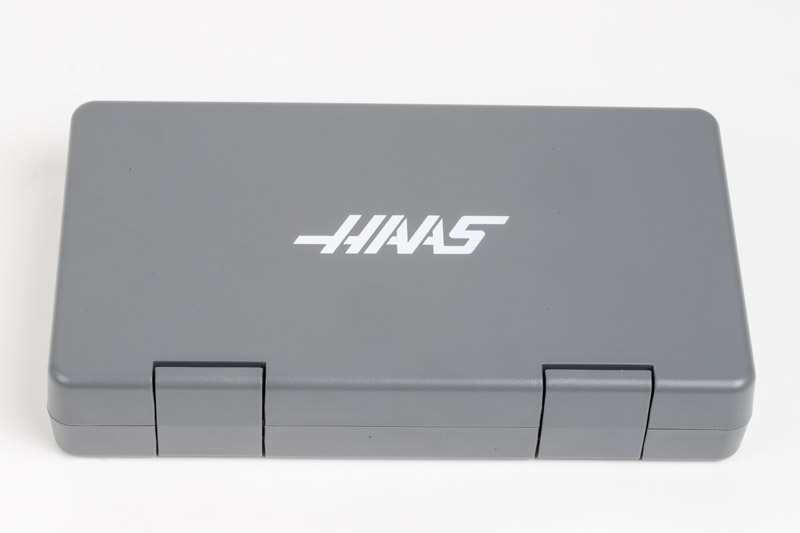

Technical Images

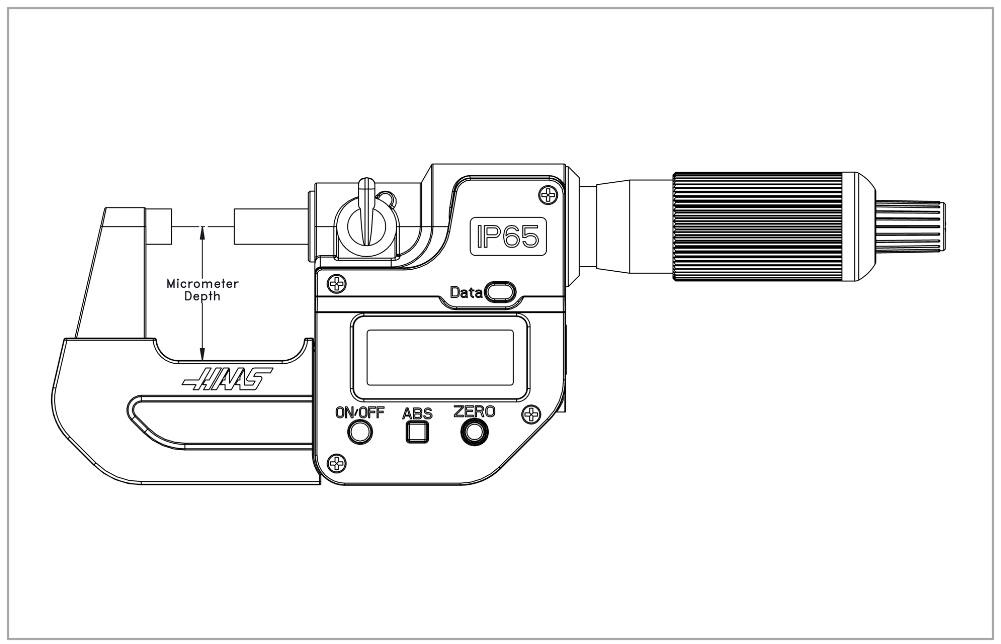

Enlarge Line Drawing & Specs
