Dial Test Indicator, 0.0005" Graduation, 0.03" Range, 0-15-0 Dial, Large Face
Part # 09-0387TEST INDICATOR BI-DIR, 0-0.03"/0.0005"
Description

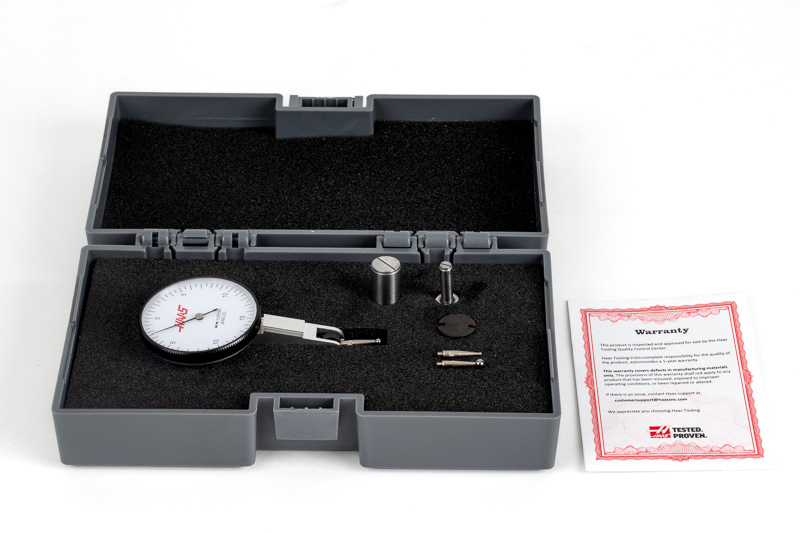

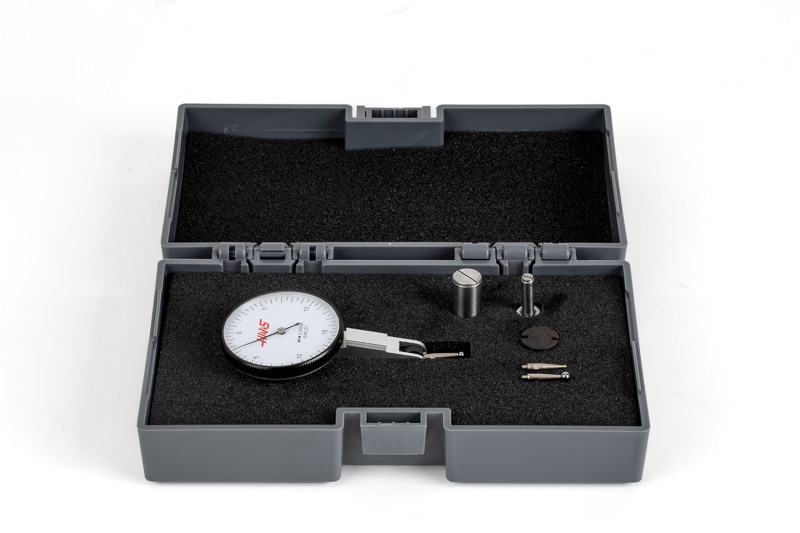

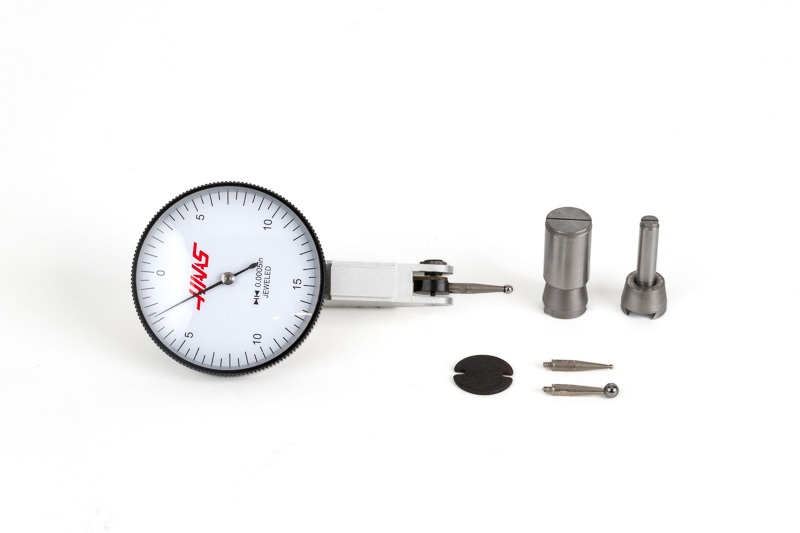

This Haas dial test indicator has graduations of 0.0005" with 0-15-0 dial numbering and a range of 0.03". Comes with 5/32" & 3/8" accessory stems for compatibility with different indicator holders. 1mm, 2mm, and 3mm stylus tips included. Jeweled bearings ensure smooth movement and longer service life compared to plain bearings, and a large dial face allows for easier reading. Made according to DIN2270.Download documents
Technical specifications
System of Measurement | Inch - ANSI |
Type | Dial Test Indicator |
Graduation | 0.0005 in |
Indicator Type | Horizontal |
Gauge Type | Dial |
Mount Type | Dovetail |
Range | 0 - 0.03 in |
Range Per Revolution | 0.03 in |
Dial Reading | 0-15-0 |
Dial Diameter | 1.57 in |
Dial Type | Balanced |
Stylus Tip Material | Carbide |
Stylus Tip Diameter | 0.039 in |
Stylus Length | 0.62 in |
Stylus Thread | M1.4-0.3 |
Bearing Type | Jeweled |
Accessory Stem Diameter | 5/32" |
Accuracy | ± 0.0005 in |
Standard | ASME B89.1.10M-2001 |
Conformance Standard | CNAS |
Weight | 0.5 lbs \ 0.2 kg |
Country of Origin | China |
Calibration Certificate (Y/N) | Y |
